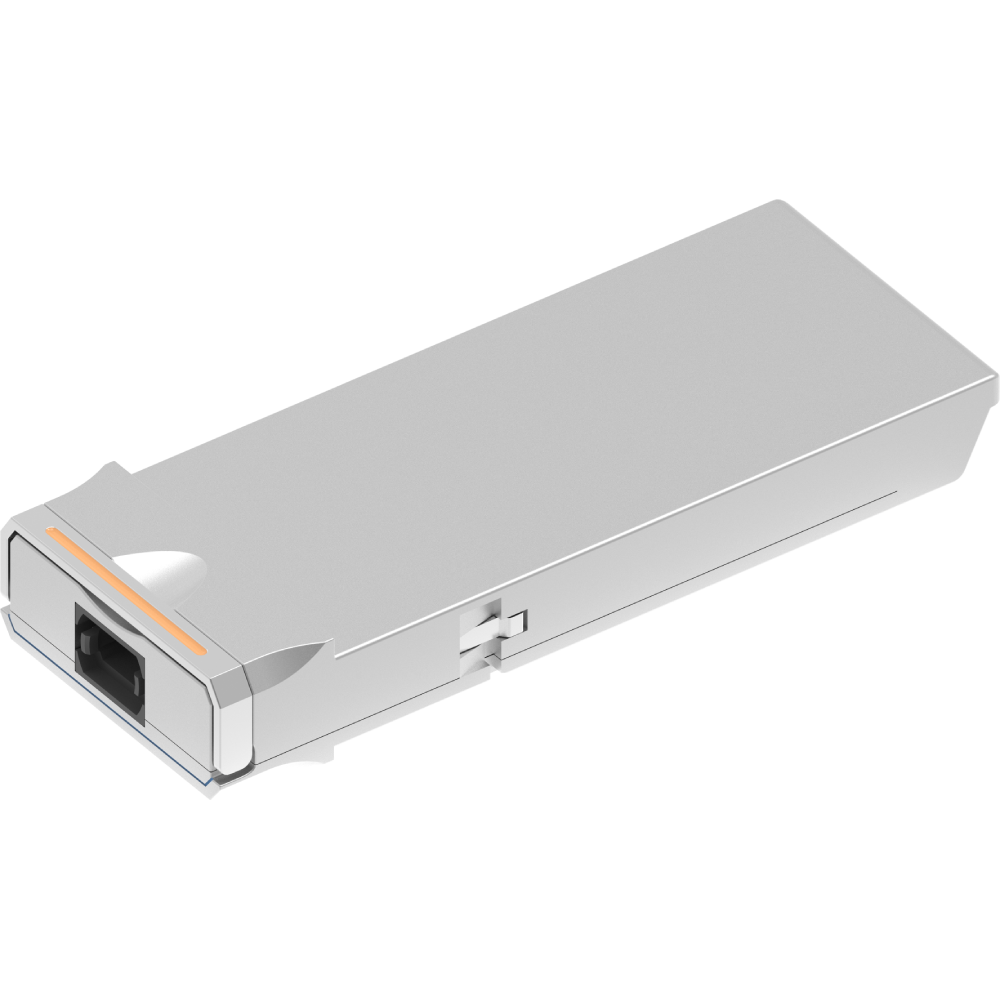

The Gigalight 100G CFP2 SR10 400m optical transceiver (GF2-M101-CSR10C) is a high-performance, low-power-consumption, short-reach interconnect solution supporting 100G Ethernet and Telecom. It is compliant with the CFP2 MSA and IEEE 802.3ba 100GBASE-SR10 standards.
The Gigalight 100G CFP2 SR10 module offers 10 transmit and 10 receive asynchronous channels operating at up to 11.18Gbps per channel. The transmitter side of the module consists of an array of VCSELs (Vertical Cavity Surface Emitting Lasers) and associated circuitry, which converts 10 parallel electrical data inputs to 10 parallel optical data output signals and also converts 10 parallel optical signals into 10 parallel electrical signals through an array of PIN photodiodes and associated circuitry. The refclk clock of 161.1328M for 100GE (or 174.6875M for OTU4) is necessary.
● 10 channels full-duplex transceiver modules
● Transmission data rate up to 11.18Gbps per channel
● 10 channels 850nm VCSEL array
● 10 channels PIN photo-detector array
● Internal CDR circuits on both receiver and transmitter channels
● Low power consumption < 7W
● Hot-pluggable CFP2 form-factor
● Up to reach 300m on OM3 Mulitmode Fiber (MMF) and 400m on OM4 MMF
● Single MPO24 connector receptacle
● Single MTP/MPO receptacle
● MDIO digital diagnostic interface and control capabilities (optional)
● Operating case temperature range 0°C to +70°C
● 3.3V power supply voltage
● RoHS-6 compliant (lead free)
