10G CPRI SFP+ DWDM 40km/80km

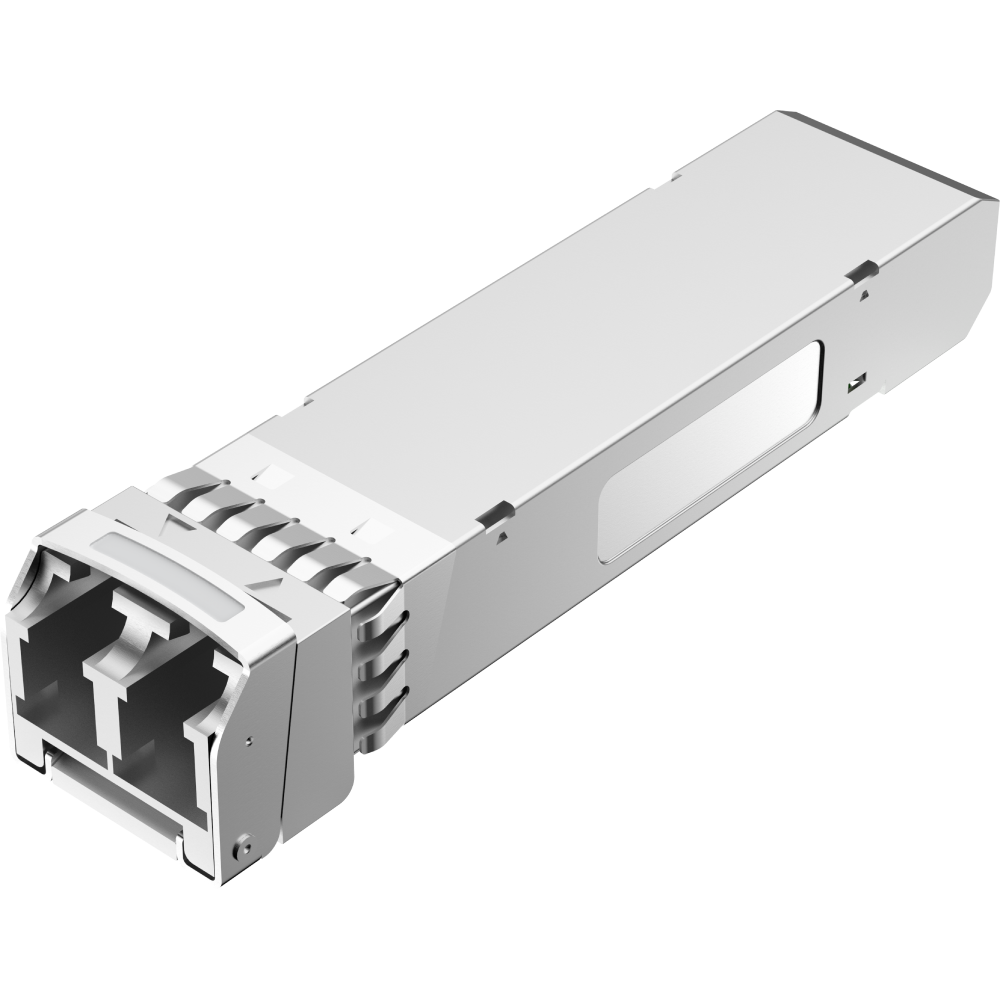

GIGALIGHT's 10G CPRI DWDM SFP+ optical transceiver modules are designed for 5G fronthaul and support 10GE/CPRI links reach up to 40km-80km over SMF.Get a Quote

Features

Applications

Datasheets

More

10GE/CPRI DWDM SFP+ C18-C61 40km (IT) - GDP-xx192-04T

Part Number	Product Description
GDP-18192-04T	10G CPRI DWDM SFP+, C18 1563.05nm, 40km on SMF, Dual LC, I-temp
GDP-19192-04T	10G CPRI DWDM SFP+, C19 1562.23nm, 40km on SMF, Dual LC, I-temp
...	...
GDP-61192-04T	10G CPRI DWDM SFP+, C61 1528.77nm, 40km on SMF, Dual LC, I-temp

Hot-pluggable SFP+ footprint
Supports 1.2288 to 10.3125 Gb/s
Link length up to 40km on G.652D SMF
Suitable for use in 100GHz channel spacing DWDM systems
Link budget up to 24dB
Operating case temperature range: -40℃ to +85℃
Cooled EML transmitter and APD receiver
Maximum power dissipation < 1.8W (Typical 1.4W)
Single 3.3V power supply
Duplex LC connector
Built-in digital diagnostic interface
RoHS compliant (lead free)

10GE/CPRI DWDM SFP+ C18-C61 70km (IT) - GDP-xx192-07T

Part Number	Product Description
GDP-18192-07T	10G CPRI DWDM SFP+, C18 1563.05nm, 70km on SMF, Dual LC, I-temp
GDP-19192-07T	10G CPRI DWDM SFP+, C19 1562.23nm, 70km on SMF, Dual LC, I-temp
...	...
GDP-61192-07T	10G CPRI DWDM SFP+, C61 1528.77nm, 70km on SMF, Dual LC, I-temp

Hot-pluggable SFP+ footprint
Supports 9.8 to 10.3 Gb/s
Link length up to 70km on G.652D SMF
Suitable for use in 100GHz channel spacing DWDM systems
Operating case temperature range: -40℃ to +85℃
Cooled EML transmitter and APD receiver
Maximum power dissipation < 2W (Typical 1.4W)
Single 3.3V power supply
Duplex LC connector
Built-in digital diagnostic interface
RoHS compliant (lead free)

10GE/CPRI DWDM SFP+ C18-C61 80km (ET) - GDP-xx192-08N

Part Number	Product Description
GDP-18192-08N	10G CPRI DWDM SFP+, C18 1563.05nm, 80km on SMF, Dual LC, E-temp
GDP-19192-08N	10G CPRI DWDM SFP+, C19 1562.23nm, 80km on SMF, Dual LC, E-temp
...	...
GDP-61192-08N	10G CPRI DWDM SFP+, C61 1528.77nm, 80km on SMF, Dual LC, E-temp

Hot-pluggable SFP+ footprint
Supports 9.8 to 11.3 Gb/s
Link length up to 80km on G.652D SMF
Suitable for use in 100GHz channel spacing DWDM systems
Operating case temperature range: -20ºC to +85ºC
Cooled EML transmitter and APD receiver
Maximum power dissipation < 2W (Typical 1.4W)
Single 3.3V power supply
Duplex LC connector
Built-in digital diagnostic interface
RoHS compliant (lead free)

10G Ethernet
CPRI Option 6/7/8
10G Fiber Channel
SONET OC-192 / SDH STM-64

10GE/CPRI DWDM SFP+ C18-C61 70km (IT) - GDP-xx192-07T

　　　　　　　　　　　　　　　　　　　　

10GE/CPRI DWDM SFP+ C18-C61 40km (IT) - GDP-xx192-04T

　　　　　　　　　　　　　　　　　　　　

10GE/CPRI/OTN DWDM SFP+ C18-C61 80km (ET) - GDP-xx192-08N

　　　　　　　　　　　　　　　　　　　　

　　　　　

10G CPRI SFP+ CWDM 10km/40km/80km

　

　　　　　

25G eCPRI SFP28 CWDM 10km/15km

　

　　　　　

25G eCPRI SFP28 LWDM 10km/20km/40km

　

　　　　　

25G eCPRI SFP28 MWDM 10km/20km

　

　　　　　

25G eCPRI SFP28 DWDM 2km/10km

　
