25G SFP28 CWDM 10km/15km Transceivers (I-Temp Optional)

GIGALIGHT's 25G CPRI CWDM SFP28 optical transceiver modules are designed for 5G fronthaul and support 25GE/CPRI links reach up to 10km/15km over SMF.Get a Quote

Features

Applications

Datasheets

More

Part Number	Product Description
GSS-Cxx250-LRT	25GE/CPRI CWDM SFP28 LR, 1271nm-1371nm, 10km, SMF, Dual LC, I-Temp, DML+PIN, 1.8W
GSS-Cxx250-LRT	25GE/CPRI CWDM SFP28 LR, 1471nm-1571nm, 10km, SMF, Dual LC, I-Temp, EML+APD, 1.8W
GSS-Cxx250-LST	25GE/CPRI CWDM SFP28 LR, 1271nm-1371nm, 15km, SMF, Dual LC, I-Temp, DML+APD, 1.8W

Hot-pluggable SFP28 form factor
Supports 25GE/CPRI data rates
GSS-Cxx250-LRT 25Gb/s 1271nm-1371nm CWDM DFB unooled transmitter and PIN receiver
GSS-Cxx250-LRT 25Gb/s 1471nm-1571nm CWDM EML cooled transmitter and APD receiver
GSS-Cxx250-LST 25Gb/s 25Gb/s 1271nm-1371nm CWDM DML cooled transmitter and APD receiver
Suitable for use in 20nm channel spacing CWDM systems
Internal CDR circuits on both receiver and transmitter channels
Power consumption < 1.8W
Maximum link length of 10km/15km on SMF
Duplex LC connector
Operating case temperature range: -40℃ to +85℃
Single 3.3V power supply
RoHS compliant (lead free)

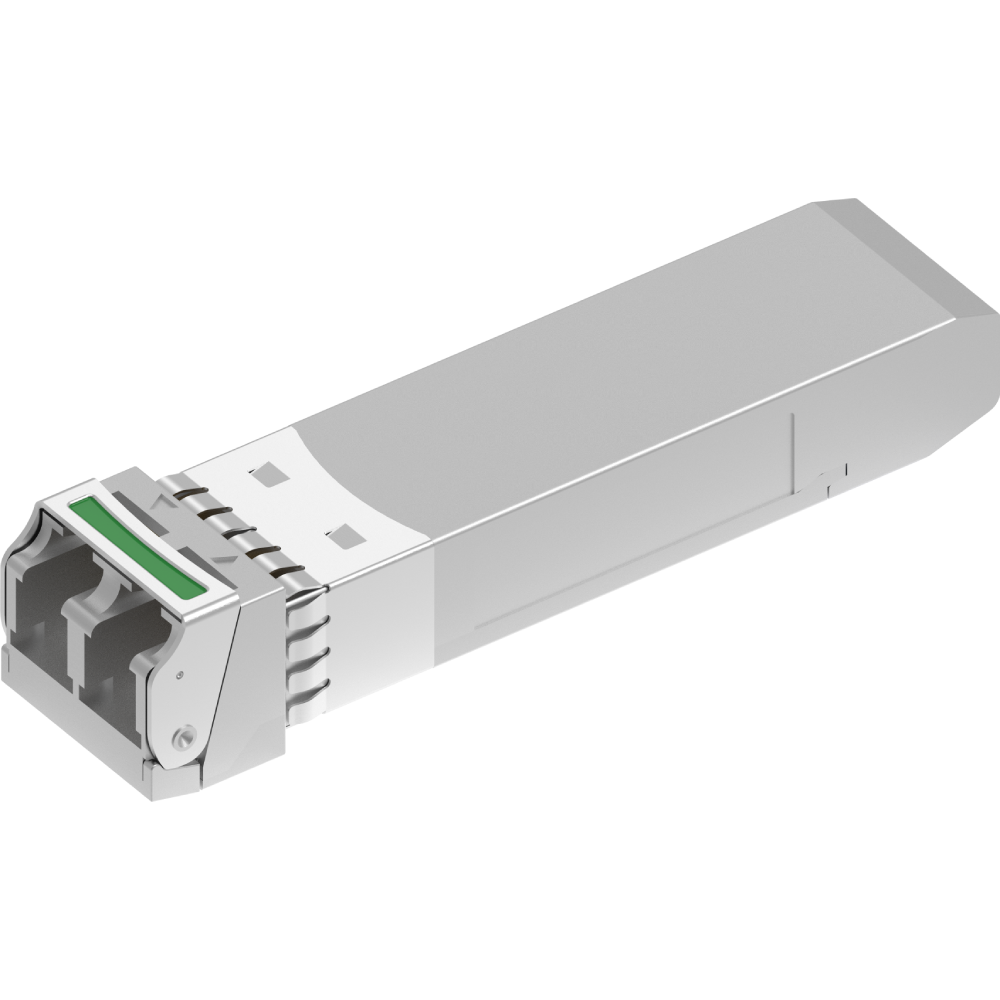

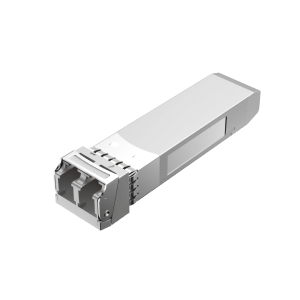

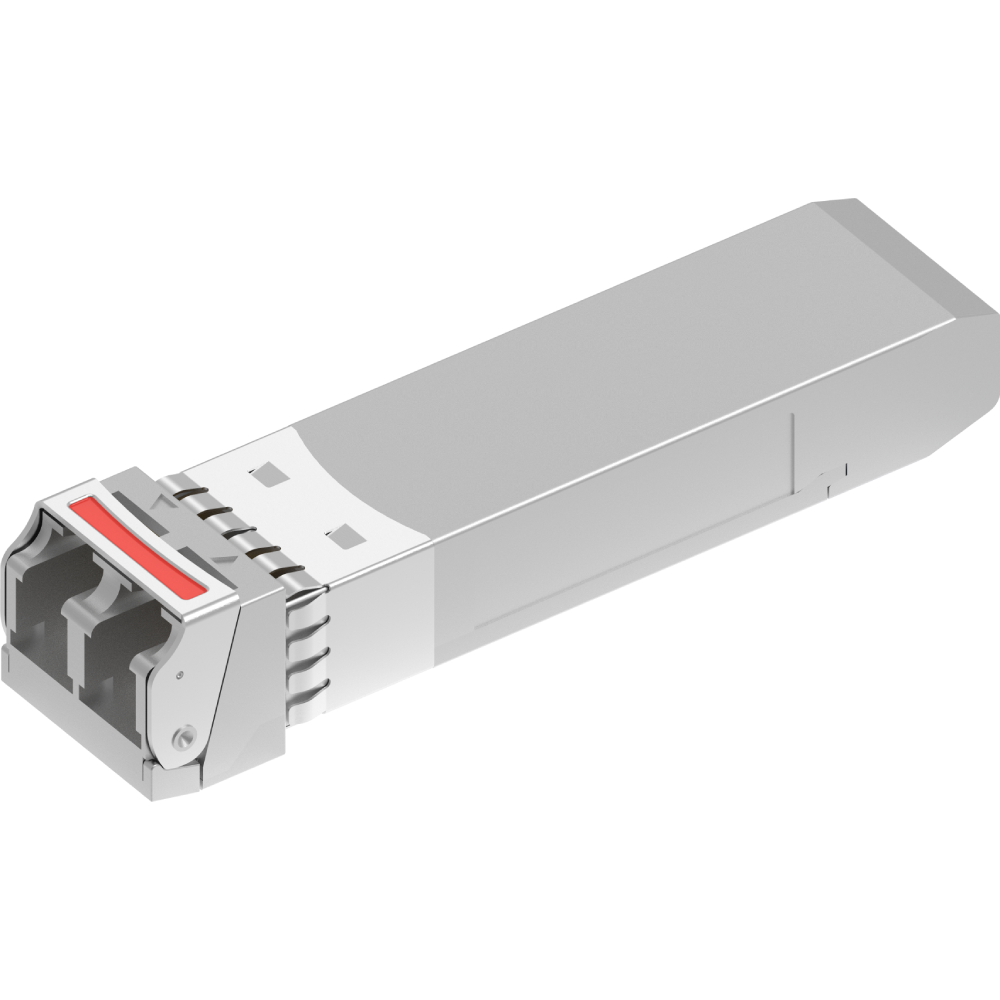

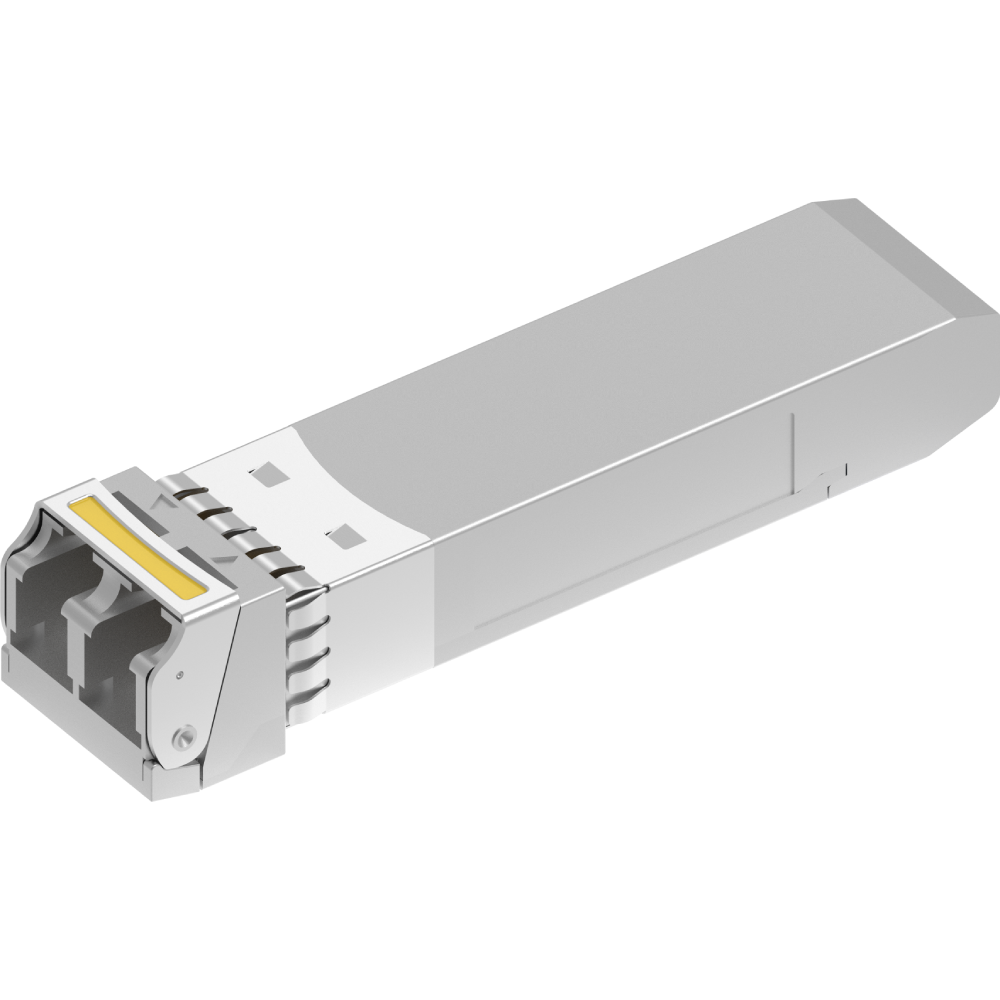

Appearance

1270nm

1290nm

1310nm

1330nm

1350nm

1370nm

1390nm

1410nm

1430nm

1450nm

1470nm

1490nm

1510nm

1530nm

1550nm

1570nm

1590nm

1610nm

25G Ethernet
25G CPRI/eCPRI

25G SFP28 CWDM 1471-1571nm 10km - GSS-Cxx250-LRT

　　　　　　　　　　　　　　　　　　　　

25G SFP28 CWDM 1271nm-1371nm 10km - GSS-Cxx250-LRT

　　　　　　　　　　　　　　　　　　　　

　　　　　
