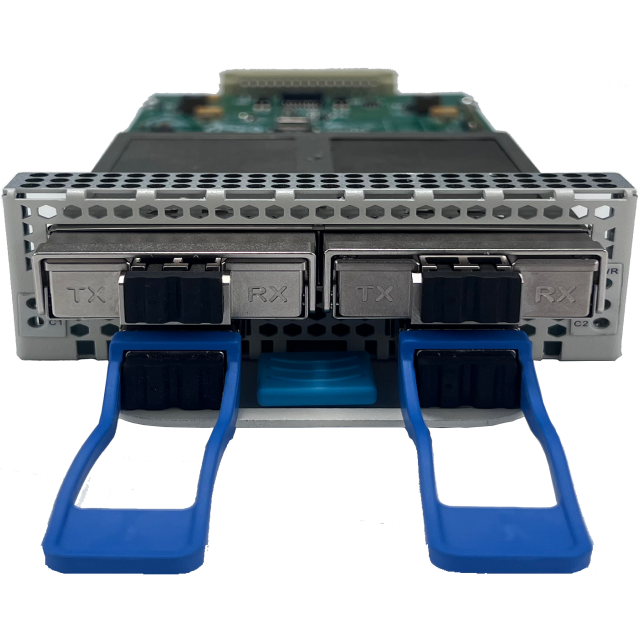

2×400G CFP2 OUT Card

GIGALIGHT's 2×400G CFP2 OTU service board is used for ultra-long-haul coherent optical transmission networks. It is the featuring module of the 8×400G 1U 3.2T DCI BOX independently developed by GIGALIGHT. It supports converting two 400G service signals into 2 single-channel 400G DWDM optical signals.Get a Quote

Features

Applications

Datasheets

Support DWDM transmission, wavelength conversion
Single board supports 2-way 400G bidirectional
Line-side supports 2 channels of 400G CFP2 DCO coherent optical modules
Client side support service interface: 2-way 400GQSFP-DD optical modules
Support unified network management platform based on SNMP, network management methods CLI, Web, NetRiver (graphical interface)
Support CDR function for optimized output, DDM signal monitoring, ALS
Support software to close ports

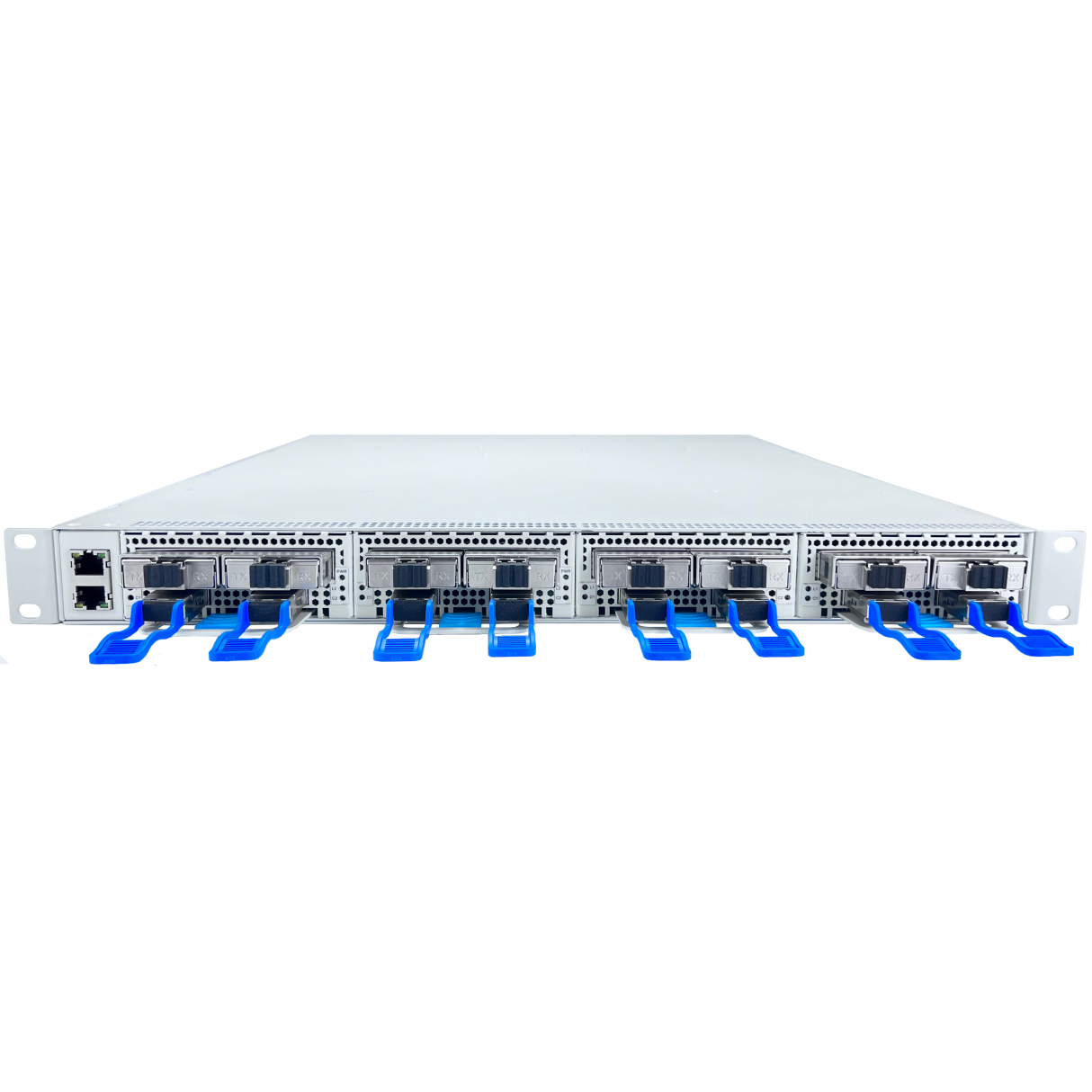

GIGALIGHT 8×400G 1U 3.2T DCI BOX
Ultra-long-haul Data Center Interconnection (DCI) Coherent Optical Network
