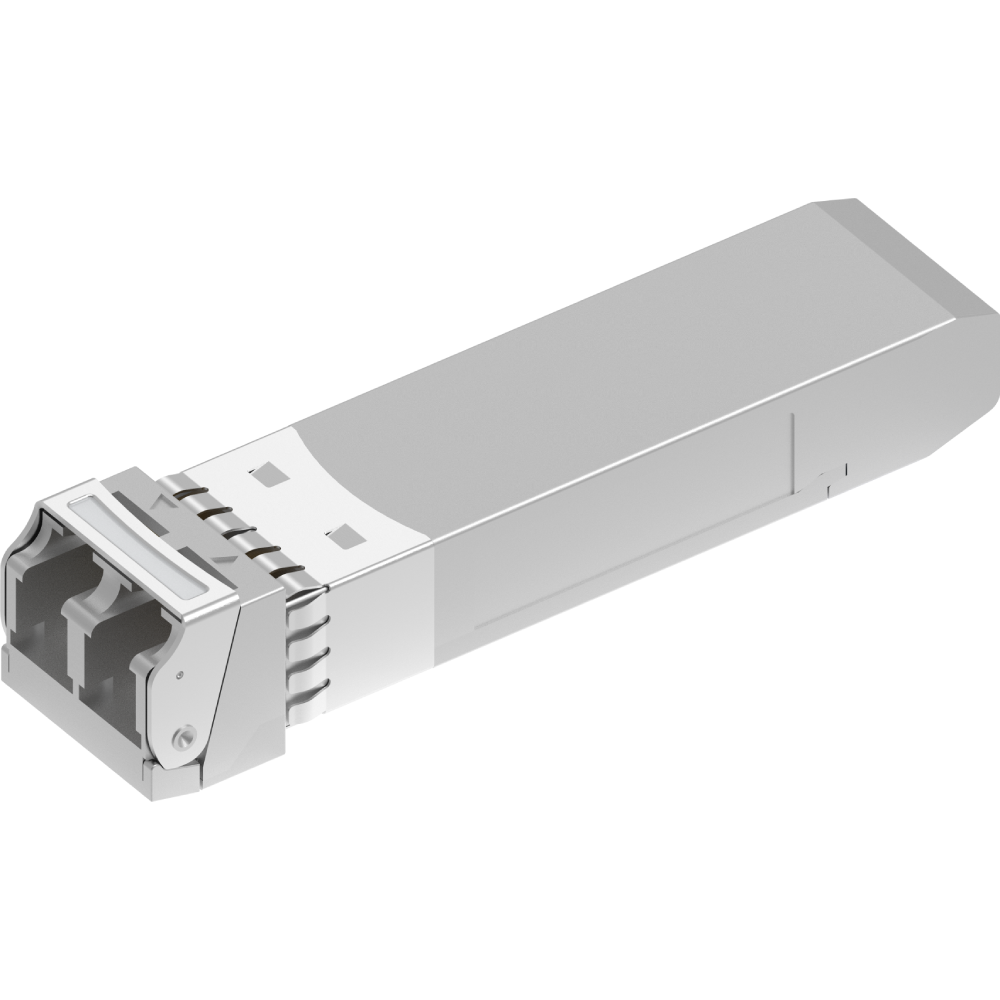

32GFC SFP28 DWDM C18-C61 10km Transceivers

GIGALIGHT's 32GFC SFP28 DWDM optical transceiver modules are designed to support 8G/16G/32G Fibre Channel (FC) and 25G Ethernet/CPRI/eCPRI, suitable for storage area network (SAN), data center and 5G fronthaul links up to 10km over single mode fiber. The 32GFC SFP28 DWDM modules operate at single DWDM wavelength optional from C-band C18 to C61 with 100GHz spacing.Get a Quote
Features
Applications
Datasheets
More
  • Hot-pluggable SFP28 form factor full-duplex transceiver module
  • C-band C18-C61 100GHz EML TOSA and APD ROSA
  • Data rate up to 28.05Gbps
  • Compliant with SFP28 MSA (SFF-8402), SFF-8472 and 32G Fibre Channel
  • Compliant with 25G Ethernet and 8G/16G Fibre Channel
  • Compliant with CPRI/eCPRI specifications
  • Compliant with ITU-T G.694.1 DWDM frequency grid
  • Internal CDR on both transmitter and receiver channels
  • Reach up to 10km over SMF
  • Duplex LC receptacle
  • 1.8W maximum power dissipation
  • Case operating case temperature range: C-Temp or I-Temp
  • Single 3.3V power supply
  • Built-in digital diagnostic functionality
  • RoHS compliant (lead free)
Part Number Product Description
GSS-Dxx280-LRC 32GFC SFP28 DWDM, 32GFC/25GE, C18-C61, 10km, SMF, Dual LC, C-Temp
GSS-Dxx280-LRT 32GFC SFP28 DWDM, 32GFC/25GE, C18-C61, 10km, SMF, Dual LC, I-Temp

Note: xx options are 18-61. 18 means C18, 19 means C19, ..., and 61 means C61.

Examples: GSS-D18280-LRC, GSS-D18250-LRT, GSS-D19280-LRC, GSS-D19280-LRT, ..., and GSS-D61280-LRC, GSS-D61280-LRT.

  • 8G/16G/32G Fibre Channel
  • 25G Ethernet
  • CPRI Option 10
  • 25G eCPRI
  • DWDM Transmission Network
  • Storage Area Network
  • Data Center Interconnection
  • 5G Fronthaul Network
  •
