400G QSFP-DD DR4 EML 1310nm 500m Optical Transceiver Modules

400G QSFP-DD DR4 EML 1310nm 500m Transceivers

GIGALIGHT's 400G QSFP-DD DR4 optical transceiver modules are designed to support 400G Ethernet, suitable for data center links up to 500m over single mode fiber with FEC. The 400G QSFP-DD DR4 modules are compatible with IEEE 802.3bs 400GBASE-DR4. The transmission side converts 8x 50G PAM4 electrical signals into 4x 100G PAM4 optical signal. Reversely the receiving side converts 4x 100G PAM4 optical signal into 8x 50G PAM4 electrical signals.Get a Quote

Features

Applications

Datasheets

Hot-pluggable QSFP-DD form factor full-duplex transceiver module
4-channel 1310nm EML transmitter and PIN photo-detector array
Data rate up to 106.25Gbps (53.125GBd PAM4) per channel
Retimed 400GAUI-8 electrical interface
Compliant with QSFP-DD MSA, CMIS 4.0 and IEEE 802.3bs 400GBASE-DR4
Reach up to 500m over SMF with KP4-FEC
MPO12/APC receptacle
10W maximum power dissipation
Case operating temperature range: C-Temp
Single 3.3V power supply
Built-in digital diagnostic functionality
RoHS compliant (lead free)

Part Number	Product Description
GQD-SPO401-DR4C	400GE QSFP-DD DR4 EML 1310nm 500m Transceiver

400G Ethernet IEEE 802.3bs 400GBASE-DR4
4x100G Ethernet IEEE 802.3cd 100GBASE-DR
Data Center Intraconnection

400G QSFP-DD DR4 EML 1310nm 500m Transceiver (GQD-SPO401-DR4C)

Name*
Email*
Company*
Phone
Product*

400G QSFP-DD DR4 EML 1310nm 500m Transceivers

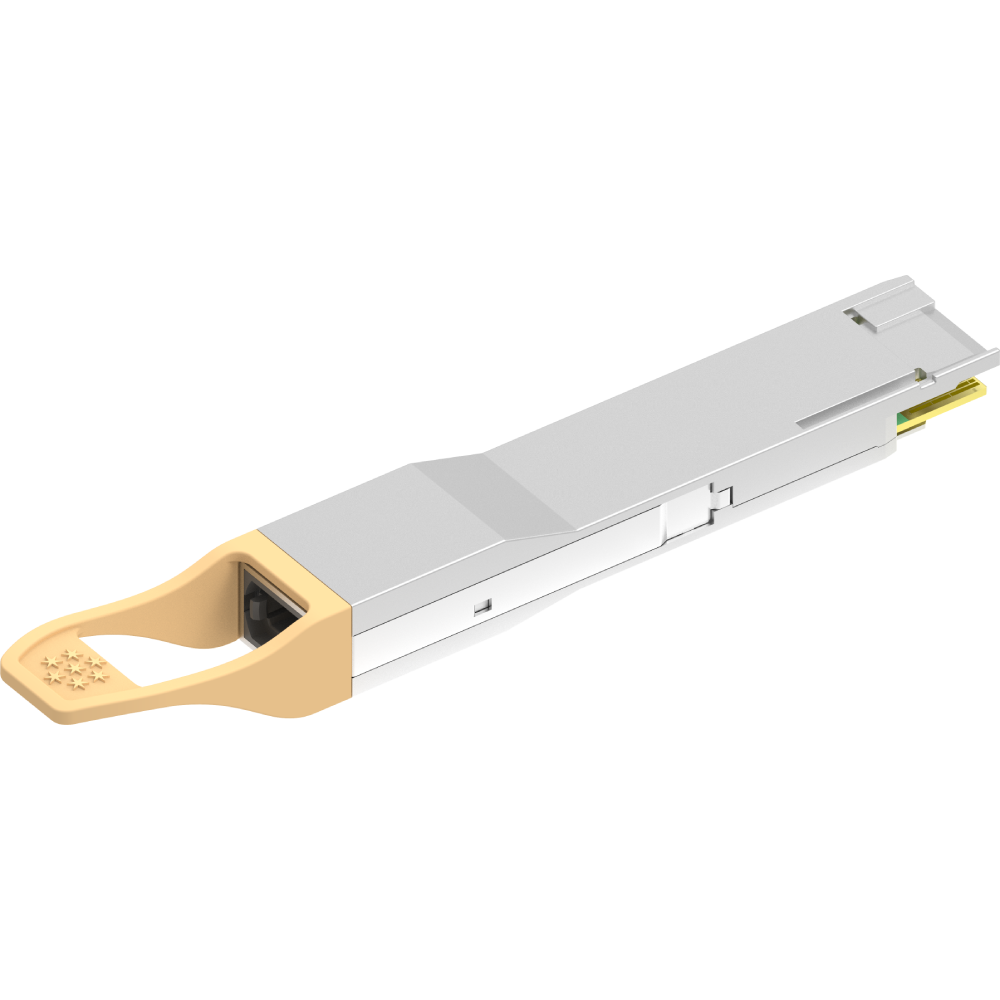

400G QSFP-DD SR8 VCSEL 850nm 100m Transceivers

400G QSFP-DD PSM8 EML 1310nm 2km/10km Transceivers

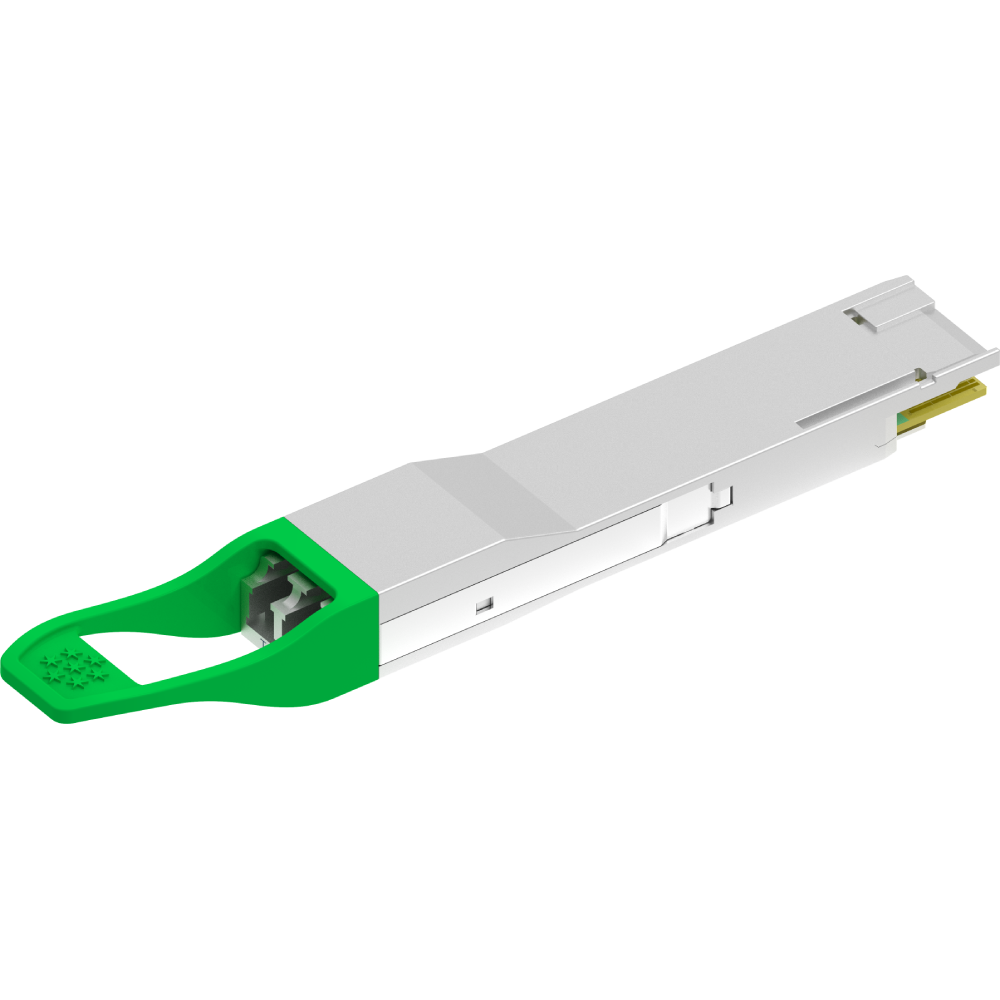

400G QSFP-DD FR8 EML LWDM8 2km Transceivers

400G QSFP-DD LR8 EML LWDM8 10km Transceivers

400G QSFP-DD ER8 EML LWDM8 40km Transceivers

400G QSFP-DD XDR4 EML 1310nm 2km Transceivers

400G QSFP-DD PLR4 EML 1310nm 10km Transceivers

400G QSFP-DD FR4 EML CWDM4 2km Transceivers

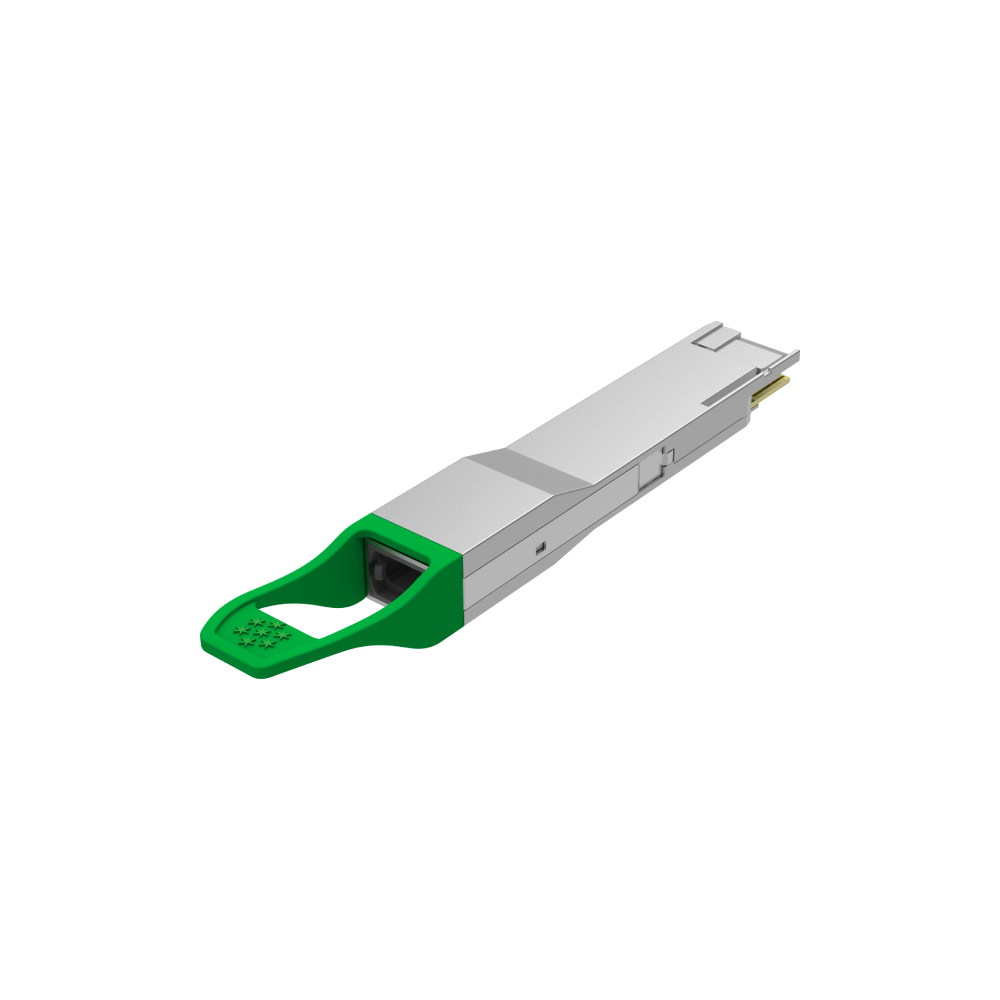

400G QSFP-DD 2x FR4/CWDM4 EML 2km Transceivers
