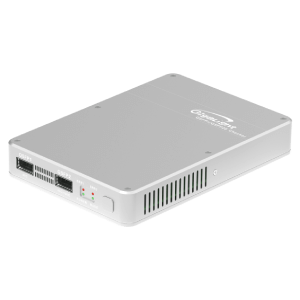

40G/100G QSFP Checker

GIGALIGHT's 40G/100G QSFP Checker combines Serial Pattern Generator and Bit Error Rate Analyzer to read the internal memory EEPROM, display the details, monitor the DDM information, change the EEPROM, and measure the power of the optics module.Get a Quote

Features

Applications

Datasheets

More

Part Number	Product Description
40G/100G QSFP CHECKER	40G/100G QSFP Checker, 40G/100G, 25G NRZ BERT

40G/100G QSFP Checker

2 QSFP ports for QSFP+ and QSFP28 optics (transceiver, AOC, DAC)
Supports 40Gb/s, 100Gb/s, and 112Gb/s bit error rate test
Updating and maintaining compatible codes from GIGALIGHT Cloud database
Friendly Graphic User Interface (GUI)
GUI operating environment supports Win XP, Win7, Win8 and Win10
Robust and slim design with compact and portable full-metal case
Mini-USB connection
Supports working independently without PC
5V to 12V DC power supply

Bit Error Rate Testing (BERT)
40G QSFP+
100G QSFP28

40G QSFP+ / 100G QSFP28 CHECKER

　　　　　　　　　　　　　　　　　　　　

　　　　　

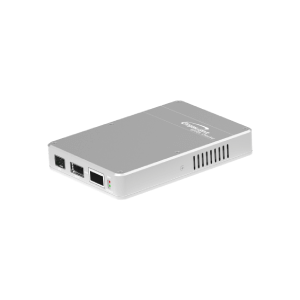

SFP/XFP/QSFP Programmer

　

　　　　　

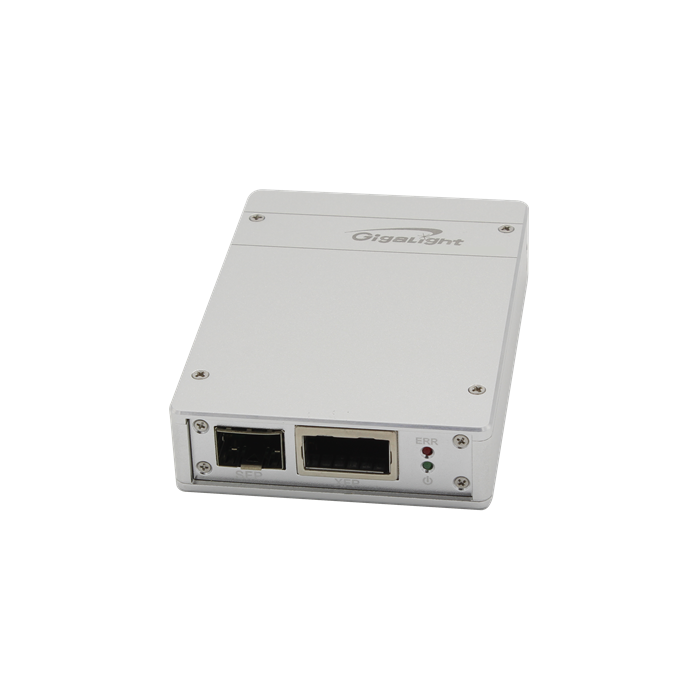

10G Tunable SFP+/XFP Box

　

　　　　　

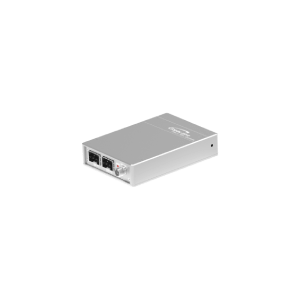

10G SFP+ Checker

　

　　　　　

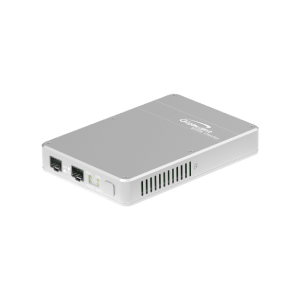

25G SFP28 Checker

　

　　　　　

200G QSFP56 Checker

　

　　　　　

200G QSFP-DD Checker

　

　　　　　

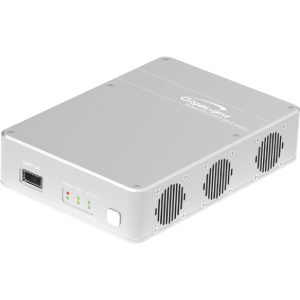

400G QSFP-DD Checker

　
