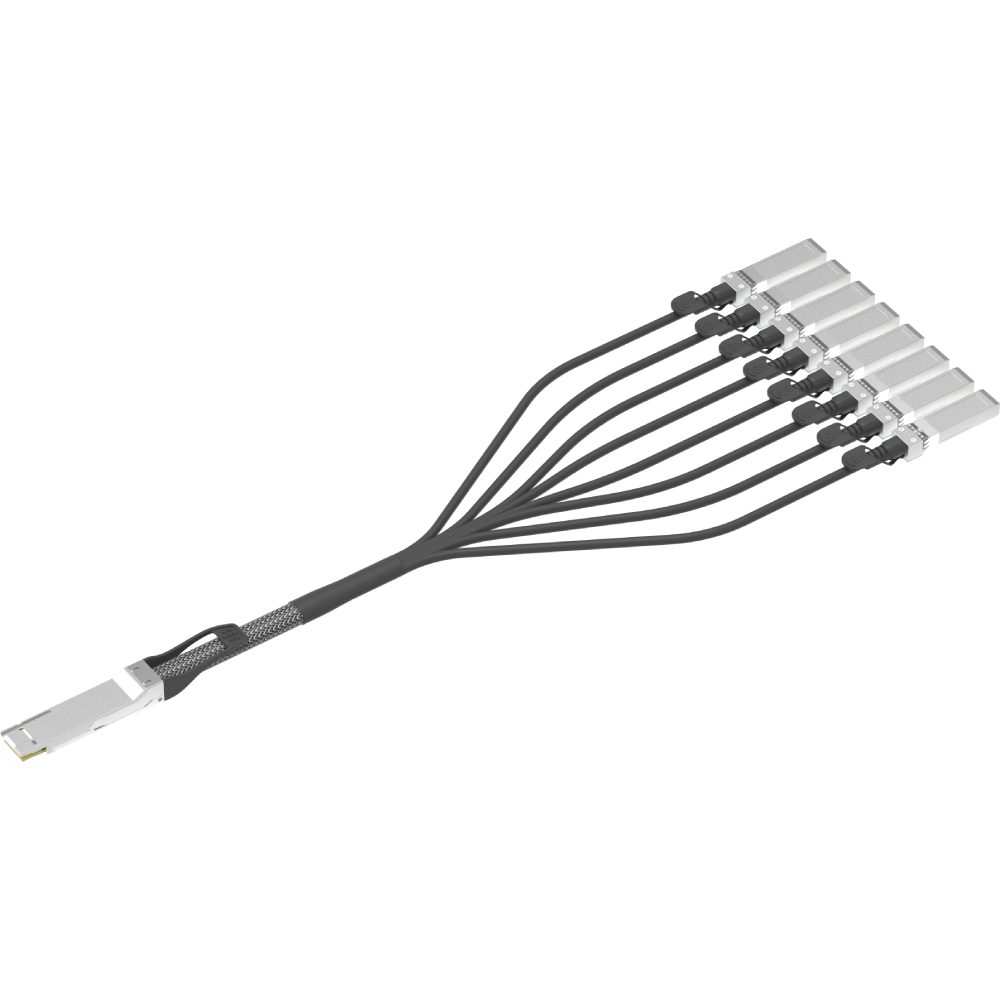

400G QSFP-DD to 8×50G SFP56 PCC

400G QSFP-DD to 8× 50G SFP56 PCC

GIGALIGHT’s GQD-8S56P401-XXC cable assembly is used in 8 X 50 Gigabit Ethernet links over copper cable, which provides connectivity between system units with a 400GbE connector on one side and 8 separate 50GbE connectors on the other four sides. The cable connects data signals from each of the 16 pairs on the single QSFP56-DD end to the 8 SFP56 multiport ends.Get a Quote

Features

Applications

Datasheets

Part Number	GQD-8S56P401-XXC
Length(meter)	1	2	3
Wire gauge(AWG)	30	30	26

Note: You can be customized diameter and distance.

Hot-pluggable QSFP-DD and SFP56 form factor
Data rate up to 425Gbps
8x 53Gb/s PAM4 modulation
QSFP-DD MSA compliant
Operating case temperature of 0-70℃
Single 3.3V supply voltage
26 AWG ~30 AWG support up to 3m length max
Bit Error Rate (BER) better than 1E-15
RoHS compliant
LSZH (Low Smoke Zero Halogen) jacket
LF (Lead Free) HF (Halogen Free) PCB
SFF-8636 compliant
I²C management interface

400G QSFP-DD to 8×50G SFP56 PCC - GQD-8S56P401-xxC

Name*
Email*
Company*
Phone
Product*

400G QSFP-DD to 8× 50G SFP56 PCC

Ordering information
