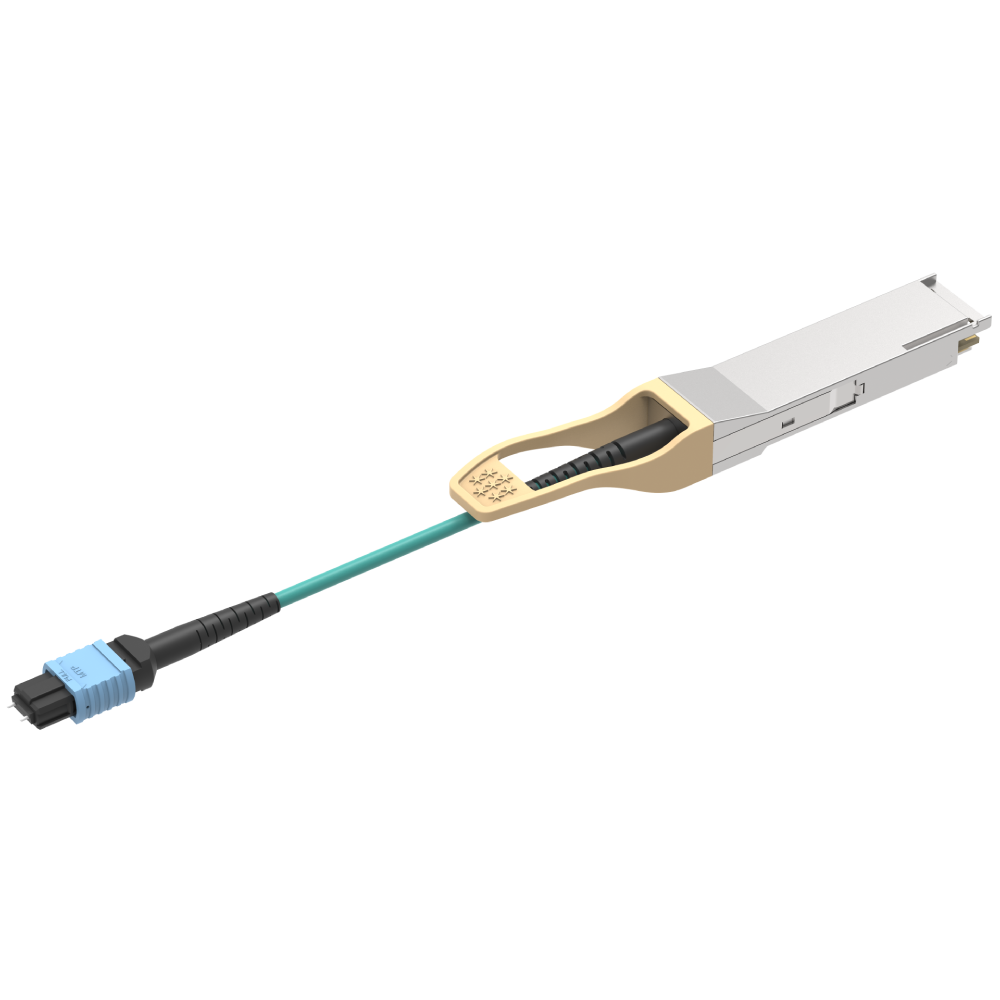

Immersible 100G QSFP28 PSM4 Pigtail Transceiver Assemblies

GIGALIGHT's Immersible 100G QSFP28 PSM4 Pigtail Transceiver Assemblies are designed to support 100G Ethernet, InfiniBand EDR and CPRI/eCPRI, suitable for data center, HPC (High-Performance Computing) and 5G fronthaul links up to 2km over single mode fiber.Get a Quote
Features
Applications
Datasheets
More
  • Hot-pluggable QSFP28 form factor full-duplex transceiver assembly
  • 4-channel 1310nm DFB array and PIN photo-detector array
  • Data rate up to 25.78125Gbps per channel
  • Compliant with QSFP28 MSA (SFF-8665) and 100G PSM4 MSA
  • Compliant with InfiniBand EDR and CPRI/eCPRI specifications
  • Internal CDR circuits on both receiver and transmitter channels
  • Supports CDR bypass
  • Reach up to 2km over SMF with FEC
  • Male MTP12/APC pigtail with customizable length
  • 3.5W maximum power dissipation
  • Case operating case temperature range: 0℃ to 60℃
  • Single 3.3V power supply
  • Built-in digital diagnostic functionality
  • RoHS compliant (lead free)
Part Number Product Description
GL-Q101-PSM4-Mxx Immersible 100G QSFP28 PSM4 Male MTP12/APC Pigtail Transceiver Assembly

Note: The "xx" in the part number means the pigtail length, e.g., 01=1m, 02=2m, etc.

  • 100G Ethernet
  • InfiniBand 4x EDR
  • CPRI Option 10
  • 100G eCPRI
  • Immersion Liquid-Cooling Systems
  • Data Center Intraconnection
  • High-Performance Computing
  • 5G Fronthaul Network
