Overview
GIGALIGHT’s Color X O-Band series modules are based on the O-Band with a frequency spacing of 200 GHz. Building on this, GIGALIGHT provides a full suite of O-Band DWDM solutions, including 100G, 200G and 400G O-Band DWDM optical modules and systems. These solutions can be widely applied to medium-and short-haul transmission scenarios such as metro access and aggregation networks, data center interconnection (DCI) and 5G fronthaul, delivering cost-effective solutions for 5G networks, enterprise private lines and distributed computing power.
For scenarios requiring longer transmission distances, the transmission range can be extended to 30 km by adopting SOA, with support for 1+1 fiber link protection to ensure transmission stability and reliability.
In addition, GIGALIGHT’s O-Band DWDM solutions support remote NMS (Network Management System) management, facilitating real-time network monitoring and administration for users and reducing operation and maintenance costs.
Key Products & Highlights
Color X 400G QSFP-DD PSM DWDM4 O-Band
- 30-wavelength O-BAND DWDM,
- 200 GHz spacing
- Up to 15 km and 30km under SOA
- Power comsuption <12.75W
Color X 200G QSFP-DD PSM DWDM4 O-Band
- 30-wavelength O-BAND DWDM,
- 200 GHz spacing
- Up to 20 km and 30km under SOA
- Power comsuption <11W
Color X 100G QSFP28 DWDM1 O-BAND
- 100G PAM4 SiPh MZ
- O-Band 200GHz 16-Channels
- Up to 30km with SOA
- Power Consumption <3.5W

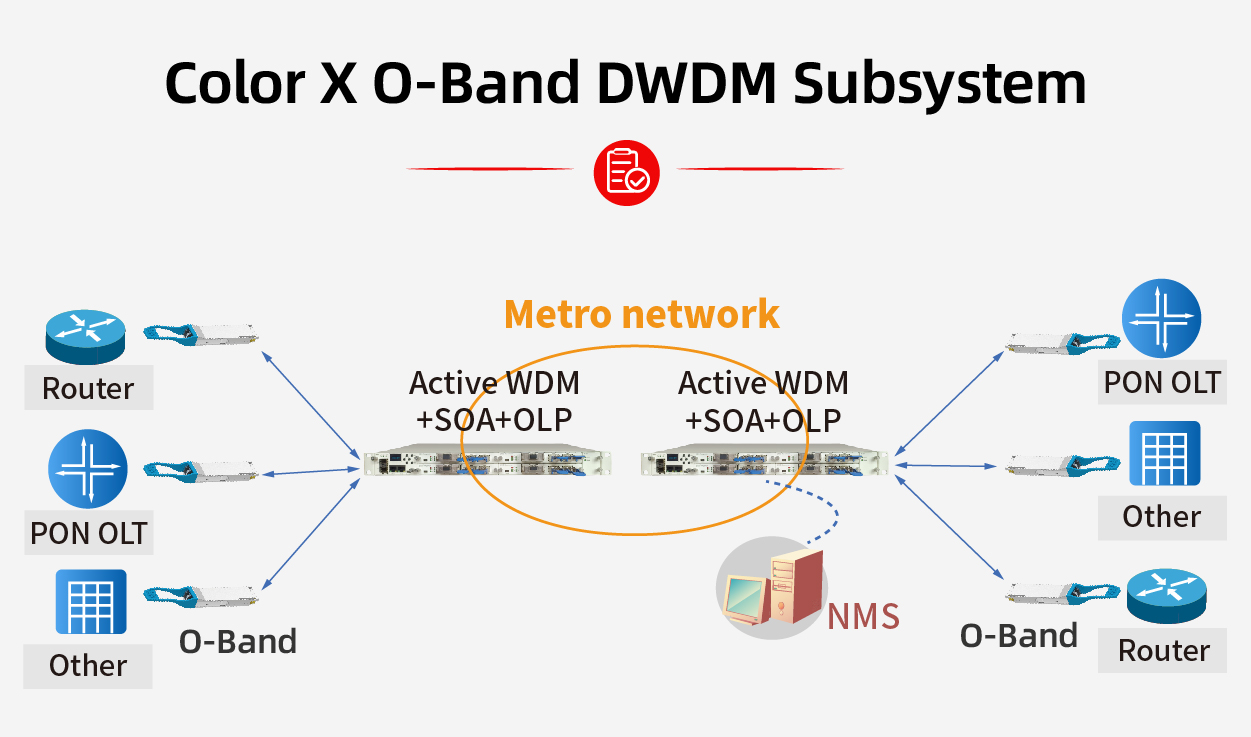

Application Scenarios
