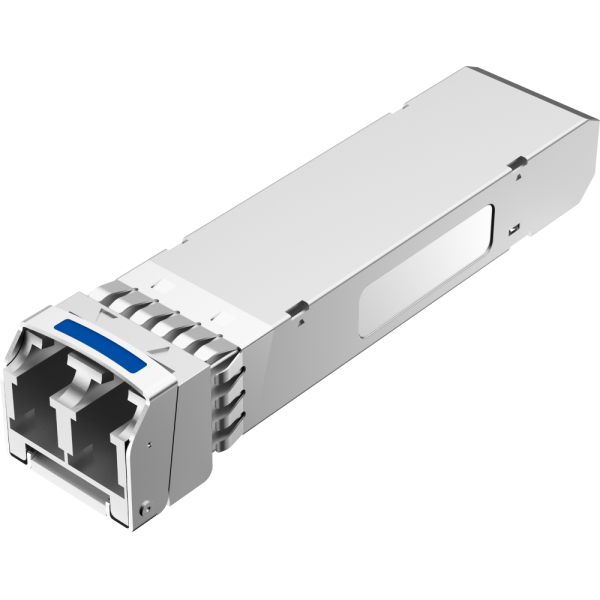

10G SFP+ LR DML 1310nm 10km Transceivers (I-Temp Optional)

GIGALIGHT's 10G SFP+ LR optical transceiver modules are used for long-reach interconnection between internal devices in the data center, compliant with the IEEE 802.3ae 10GBASE-LR Ethernet transmission protocol. This series of products uses a pair of single-mode fibers for transmission, the center wavelength is 1310nm, the distance can reach up to 10km, and industrial-grade case operating temperature range is optional.Get a Quote

Features

Applications

Datasheets

Hot-pluggable SFP+ form factor full-duplex transceiver module
1310nm DML laser and PIN photo-detector
Data rate up to 10.3125Gbps (optional multi-rate version with built-in CDR)
Compliant with SFP+ MSA (SFF-8431) and IEEE 802.3ae 10GBASE-LR
Reach up to 10km over SMF
Duplex LC receptacle
1W maximum power consumption
Case operating temperature range: C-Temp or I-Temp
Single 3.3V power supply
Built-in digital diagnostic functionality
RoHS compliant (lead free)

Part Number	Product Description
GPP-31192-LRC	10GE SFP+ LR DML 1310nm 10km Transceiver
GPP-31192-LRT	I-Temp 10GE SFP+ LR DML 1310nm 10km Transceiver
GPP-31192-LRCS	Multi-rate 10G SFP+ LR DML 1310nm 10km Transceiver (Built-in CDR)

IEEE 802.3ae 10GBASE-LR
SONET OC-192 or SDH STM-64
Data Center Intraconnection
Metro Telecom Optical Transmission
Switches Interconnection

10G SFP+ LR (IT) - GPP-31192-LRT

10G SFP+ LR - GPP-31192-LRC
