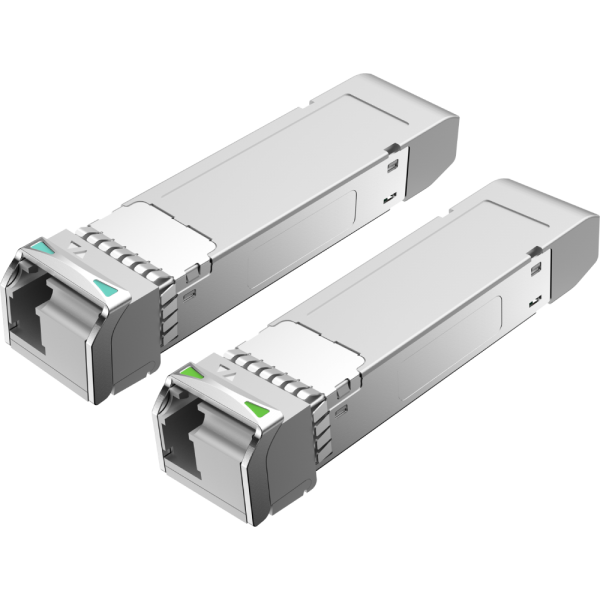

12G-SDI SFP+ BiDi Transceiver Modules

GIGALIGHT's 12G-SDI BiDi SFP+ optical transceiver modules are designed for 12G-SDI bidirectional transmission links reach up to 20km over a single SMF.Get a Quote

Features

Applications

Datasheets

More

Part Number	Product Description
GHB-2612GL-L2CDM	12G-SDI BiDi SFP+, Tx 1270nm, Rx 1330nm, 20km, SMF, Single LC, MSA Pinout
GHB-6212GL-L2CDM	12G-SDI BiDi SFP+, Tx 1330nm, Rx 1270nm, 20km, SMF, Single LC, MSA Pinout
GHB-2612GL-L2CD	12G-SDI BiDi SFP+, Tx 1270nm, Rx 1330nm, 20km, SMF, Single LC, Non-MSA Pinout
GHB-6212GL-L2CD	12G-SDI BiDi SFP+, Tx 1330nm, Rx 1270nm, 20km, SMF, Single LC, Non-MSA Pinout

SD/HD/3G/6G/12G-SDI SFP Transceiver
ST 259, ST 292-1, ST 424, ST-2081 and ST-2082 compatible
Metal enclosure for Lower EMI
DFB laser transmitter and PIN receiver
Up to 20km over single SMF
Support SDI pathological patterns for SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
MSA or Non-MSA pinout optional
Single LC connector
RoHS compliant (lead free)
Single 3.3V power supply
Hot-pluggable SFP footprint
Commercial operating case temperature range: 0°C to 70°C

SD/HD/3G/6G/12G-SDI video over fiber bidirectional transmission

12G-SDI BiDi SFP - GHB-XX12GL-L2CDM

　　　　　　　　　　　　　　　　　　　　

12G-SDI BiDi SFP+(NON-MSA) - GHB-XX12GL-L2CD

　　　　　　　　　　　　　　　　　　　　

　　　　　
