12G-SDI SFP+ CWDM Single-Transmitter Modules

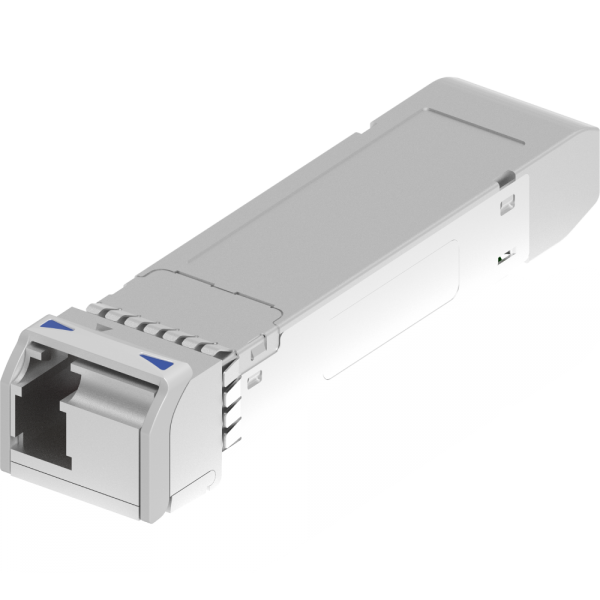

GIGALIGHT's 12G-SDI CWDM SFP+ Tx single-transmitter optical modules are designed for 12G-SDI video optical transmission links reach up to 10km over Single-Mode Fiber (SMF).Get a Quote

Features

Applications

Datasheets

More

Part Number	Product Description
GHTC-xx12G-L1CDM	12G-SDI CWDM SFP+ Tx, 1270nm-1450nm, 10km, SMF, Single LC, MSA Pin-out
GHTC-xx12G-L1CD	12G-SDI CWDM SFP+ Tx, 1270nm-1450nm, 10km, SMF, Single LC, Non-MSA Pin-out

Note: xx options are 27-45. 27 means 1270nm, 29 means 1290nm, and 45 means 1450nm.

Examples: GHTC-2712G-L1CDM, GHTC-2712G-L1CD, GHTC-2912G-L1CDM, GHTC-2912G-L1CD, ...GHTC-4512G-L1CDM, GHTC-4512G-L1CD.

SD/HD/3G/6G/12G-SDI SFP Single-Transmitter Module
ST 259, ST 292-1, ST 424, ST-2081 and ST-2082 compatible
Metal enclosure for Lower EMI
1270nm-1450nm CWDM DFB laser transmitter w/o receiver
Supports SDI pathological patterns for SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
Compliant with SFP MSA
Single LC connector
The module's receiver contains reclocker
RoHS compliant (lead free)
Single 3.3V power supply
Hot-pluggable SFP footprint
Commercial operating case temperature range: 0℃ to 70℃

SD/HD/3G/6G/12G-SDI

12G-SDI CWDM SFP+ Tx 1270nm-1450nm 10km (MSA) - GHTC-xx12G-L1CDM

　　　　　　　　　　　　　　　　　　　　

12G-SDI CWDM SFP+ Tx 1270nm-1450nm 10km (Non-MSA) - GHTC-xx12G-L1CD

　　　　　　　　　　　　　　　　　　　　

　　　　　
