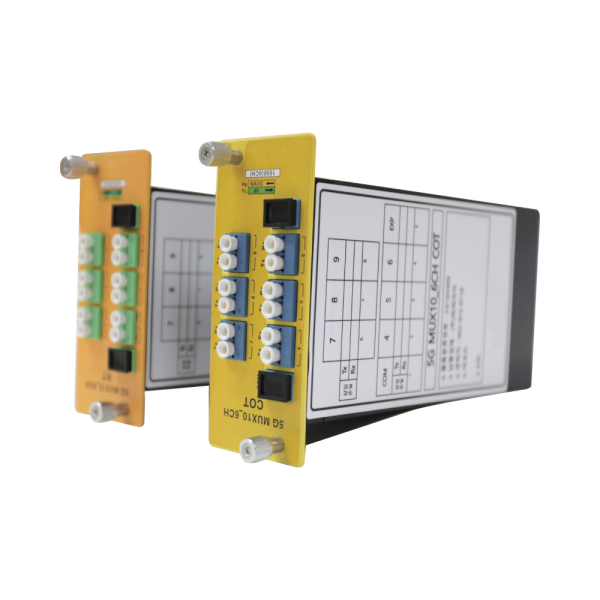

The GIGALIGHT 5G OMUX are 6CH or 12CH xWDM MUX DEMUX modules based on the TFF technology with ultra low insertion loss. This portfolio is specially designed for 5G fronthaul networks and includes CWDM, LWDM, DWDM, and MWDM series.
|
Channel Number |
Wavelength (nm) |
Max. Channel Insertion Loss (dB) |
|
|
RT |
COT |
||
|
6 |
1271 |
1.5 |
1.5 |
|
1291 |
|||
|
1311 |
|||
|
1331 |
1.0 |
1.0 |
|
|
1351 |
0.9 |
0.6 |
|
|
1371 |
0.6 |
0.9 |
|
|
12 |
1271 |
1.5 |
1.5 |
|
1291 |
|||
|
1311 |
|||
|
1331 |
1.0 |
1.0 |
|
|
1351 |
0.9 |
0.6 |
|
|
1371 |
0.6 |
0.9 |
|
|
1471 |
2.5 |
2.5 |
|
|
1491 |
|||
|
1511 |
|||
|
1531 |
|||
|
1551 |
|||
|
1571 |
|||
| Parameters |
Value |
| Max. Center Wavelength Deviation |
1.5nm |
| Min. 1dB Channel Width |
13nm |
| Max. Channel Flatness |
0.5dB |
| Min. Adjacent Channels Isolation |
25dB |
| Min. Non-Adjacent Channels Isolation |
30dB |
| Max. Wavelength Thermostability |
0.002nm/℃ |
| Max. Insertion Loss Thermostability |
0.007dB/℃ |
| Max. Polarization Dependent Loss |
0.15dB |
| Min. Return Loss |
40dB |
| Operating Temperature Range |
-40°C to +85°C |
| Storage Temperature Range |
-40°C to +85°C |
Note:
All specifications are based on the devices with connectors, and guaranteed over wavelength and temperature.
|
Channel Number |
Wavelength (nm) |
Max. Channel Insertion Loss (dB) |
|
|
RT |
COT |
||
|
6 |
1267.5 |
3 |
2.8 |
|
1274.5 |
3 |
2.8 |
|
|
1287.5 |
3.2 |
2.6 |
|
|
1294.5 |
2.6 |
3.2 |
|
|
1307.5 |
3.4 |
2.4 |
|
|
1314.5 |
2.4 |
3.4 |
|
|
12 |
1267.5 |
3 |
2.8 |
|
1274.5 |
2.8 |
3 |
|
|
1287.5 |
3.2 |
2.6 |
|
|
1294.5 |
2.6 |
3.2 |
|
|
1307.5 |
3.4 |
2.4 |
|
|
1314.5 |
2.4 |
3.4 |
|
|
1327.5 |
2.2 |
2 |
|
|
1334.5 |
2 |
2.2 |
|
|
1347.5 |
1.5 |
1.2 |
|
|
1354.5 |
1.2 |
1.5 |
|
|
1367.5 |
1.7 |
1.0 |
|
|
1374.5 |
1.0 |
1.7 |
|
| Parameters |
Value |
| Max. Center Wavelength Deviation |
1.0nm |
| Min. 1dB Channel Width |
5nm |
| Max. Channel Flatness |
0.5dB |
| Min. Adjacent Channels Isolation |
25dB |
| Min. Non-Adjacent Channels Isolation |
30dB |
| Max. Wavelength Thermostability |
0.002nm/℃ |
| Max. Insertion Loss Thermostability |
0.007dB/℃ |
| Max. Polarization Dependent Loss |
0.15dB |
| Min. Return Loss |
40dB |
| Operating Temperature Range |
-40°C to +85°C |
| Storage Temperature Range |
-40°C to +85°C |
Note:
All specifications are based on the devices with connectors, and guaranteed over wavelength and temperature.
|
Channel Number |
Wavelength (nm) |
Max. Channel Insertion Loss (dB) |
|
|
RT |
COT |
||
|
6 |
1286.66 |
2.2 |
1.4 |
|
1291.10 |
1.9 |
1.7 |
|
|
1295.56 |
1.8 |
1.8 |
|
|
1300.05 |
|||
|
1304.58 |
1.7 |
1.9 |
|
|
1309.14 |
1.4 |
2.2 |
|
|
Channel Number |
Wavelength (nm) |
Max. Link Insertion (dB) |
|
|
RT |
COT |
||
|
12 |
1269.23 |
4.5 |
4.5 |
|
1273.54 |
|||
|
1277.89 |
|||
|
1282.26 |
|||
|
1286.66 |
|||
|
1291.10 |
|||
|
1295.56 |
|||
|
1300.05 |
|||
|
1304.58 |
|||
|
1309.14 |
|||
|
1313.73 |
|||
|
1318.35 |
|||
| Parameters |
Value |
| Max. Center Wavelength Deviation |
0.5nm |
| Min. 1dB Channel Width |
2.3nm |
| Max. Channel Flatness |
0.5dB |
| Min. Adjacent Channels Isolation |
25dB |
| Min. Non-Adjacent Channels Isolation |
30dB |
| Max. Wavelength Thermostability |
0.002nm/℃ |
| Max. Insertion Loss Thermostability |
0.007dB/℃ |
| Max. Polarization Dependent Loss |
0.15dB |
| Min. Return Loss |
40dB |
| Operating Temperature Range |
-40°C to +85°C |
| Storage Temperature Range |
-40°C to +85°C |
Note:
All specifications are based on the devices with connectors, and guaranteed over wavelength and temperature.
|
Channel Number |
Wavelength (nm) |
Max. Channel Insertion Loss (dB) |
|
|
RT |
COT |
||
|
6 |
1542.94 |
2.4 |
1.7 |
|
1543.73 |
2.2 |
1.9 |
|
|
1544.53 |
2.1 |
2.0 |
|
|
1545.32 |
2.0 |
2.1 |
|
|
1546.12 |
1.9 |
2.2 |
|
|
1546.92 |
1.7 |
2.4 |
|
|
12 |
1547.72 |
2.7 |
1.8 |
|
1548.51 |
|||
|
1549.32 |
2.5 |
2.0 |
|
|
1550.12 |
2.3 |
2.2 |
|
|
1550.92 |
2.1 |
2.4 |
|
|
1551.72 |
2.0 |
2.5 |
|
|
1552.52 |
2.5 |
2.0 |
|
|
1553.33 |
2.4 |
2.1 |
|
|
1554.13 |
2.2 |
2.3 |
|
|
1554.94 |
2.0 |
2.5 |
|
|
1555.75 |
1.8 |
2.7 |
|
|
1556.55 |
|||
| Parameters |
Value |
| Min. Adjacent Channels Isolation |
25dB |
| Min. Non-Adjacent Channels Isolation |
35dB |
| Min. Return Loss |
50dB |
| Max. Directivity |
50dB |
| Operating Temperature Range |
-40°C to +85°C |
| Storage Temperature Range |
-40°C to +85°C |
Note:
All specifications are based on the devices with connectors, and guaranteed over wavelength and temperature.
| P/N | Description | Wavelength | |
|---|---|---|---|
| GF5GC6R | 5G OMUX CWDM6 RT | 1271-1371nm | |
| GF5GC6C | 5G OMUX CWDM6 COT | 1271-1371nm | |
| GF5GC12R | 5G OMUX CWDM12 RT | 1271-1371nm & 1471~1571nm | |
| GF5GC12C | 5G OMUX CWDM12 COT | 1271-1371nm & 1471~1571nm | |
| GF5GM6R | 5G OMUX MWDM6 RT | ||
| GF5GM6C | 5G OMUX MWDM6 COT | ||
| GF5GM12R | 5G OMUX MWDM12 RT | ||
| GF5GM12C | 5G OMUX MWDM12 COT | ||
| GF5GL6R | 5G OMUX LWDM6 RT | ||
| GF5GL6C | 5G OMUX LWDM6 COT | ||
| GF5GL12R | 5G OMUX LWDM12 RT | ||
| GF5GL12C | 5G OMUX LWDM12 COT | ||
| GF5GD6R | 5G OMUX DWDM6 RT | ||
| GF5GD6C | 5G OMUX DWDM6 COT | ||
| GF5GD12R | 5G OMUX DWDM12 RT | ||
| GF5GD12C | 5G OMUX DWDM12 COT |
