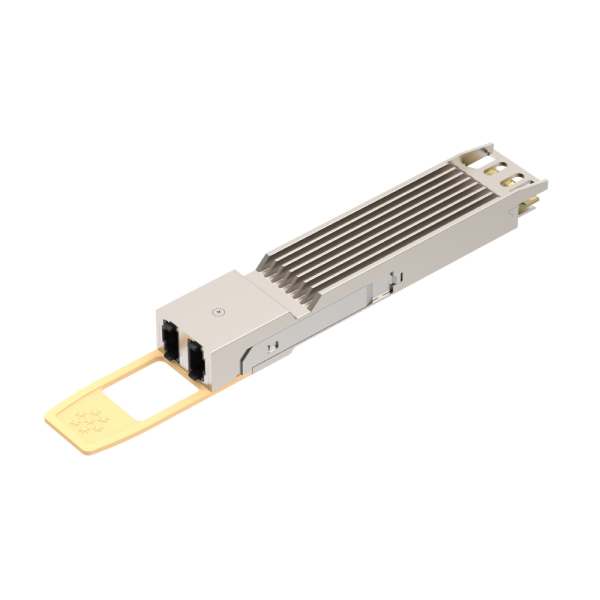

800G OSFP VR8 VCSEL 850nm 50m Optical Transceiver

GIGALIGHt 800G OSFP VR8 is a hot-pluggable optical transceiver module designed for 800G Ethernet links in data centers. With 100G PAM4 and VCSEL technology, it can interconnect up to 800G data within 50m over 8 pairs of multimode fiber.

Description

  • Full-duplex transceiver integrated module in OSFP hot-pluggable package
  • 8-channel 850nm VCSEL and PIN
  • 8x112G PAM4 modulation
  • Built-in 7nm DSP chips for receive and transmit channels
  • Compliant with OSFP MSA, CMIS 4.0 and IEEE 800GBASE-VR8 Ethernet transport protocols
  • Transmission using 8 parallel pairs of multimode fiber at distances up to 30m (OM3 MMF) or 50m (OM4 MMF)
  • 2xMPO12 or MPO16 optical interfaces
  • Power consumption less than 14W
  • Supports CMIS version 4.0 protocol
  • Commercial grade operating temperature range
  • Power supply voltage 3.3V
  • Comply with RoHS environmental protection standard (lead-free)
P/N Description
GOS-MPO801-VR8C 800GE OSFP VR8 VCSEL 850nm 30m(OM3 MMF) or 50m(OM4 MMF) Optical Transceiver

Additional information

Product Type

Application

Data Rate

Protocol

,

Form Factor

Reach

Media Type

Wavelength

Interface

Data Sheet

  • GOS-MPO801-VR8C 800G OSFP112 VR8
