Overview
GIGALIGHT is a global innovator and leader in SDI video and high-speed broadcast optical transmission. Its SDI optical modules are specifically designed for high-definition video signal transmission, supporting SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI standards.
Video optical extenders are used to extend the transmission distance between SDI source and receiver devices over optical fiber, working seamlessly with SDI optical modules. This product series is ideal for broadcast stations, outdoor sports events, large-scale live stage productions, and multi-party interactive recording, live streaming, and directing scenarios, providing reliable, high-quality video transmission in demanding environments.
Key Products & Highlights

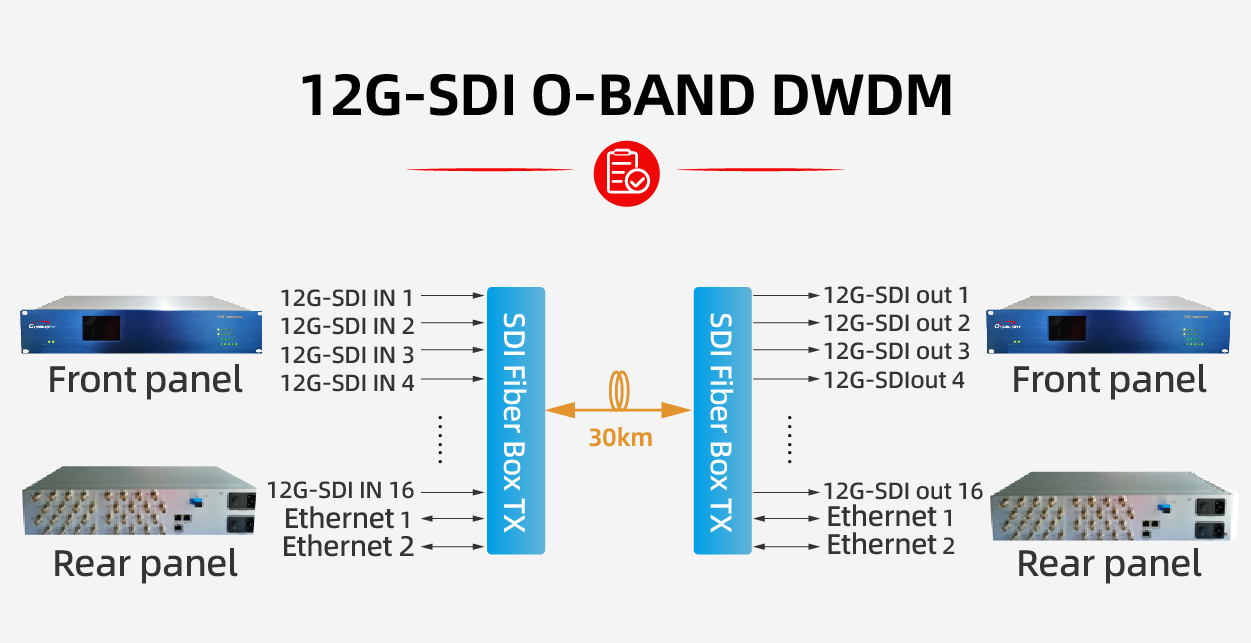

O-Band 12G SDI DWDM SFP
- 16-wavelengths 100GHz
- Available in 16 product variants
- Supports 30km(APD Receiver)
- Especially suitable for long-distance broadcast and media scenarios
12G SDI CWDM SFP
- 1270nm – 1450nm, 10 wavelengths
- Transmission distance: 10km
- Supports SD/HD/3G/6G/12G SDI
- First 4 wavelengths support up to 30km
Application Scenarios
