Overview
GIGALIGHT’s Open Optical Network Laboratory has successfully deployed the 400G Single-Wavelength DCI BOX network system at overseas data center and telecom operator customer sites.The system adopts the latest 400G QSFP-DD ZR/ZR+ coherent optical modules and 2U chassis (with both 1U and 2U chassis options available), and supports a maximum transmission capacity of 6.4T with a white-box design.
In addition, Gigalight has launched China’s first 400G QSFP-DD DCO Muxponder. Its line-side ports support cost-effective 400G QSFP-DD DCO ZR/ZR+ modules, while the client-side is equipped with 4×100GE QSFP28 ports, perfectly catering to DCI interconnection scenarios.
Key Products & Highlights
400G QSFP-DD DCO ZR+
- IEEE 400GE or n×100GE (n = 1, 2, 4) Ethernet interface
- Coherent 400G/200G/100G optical interface (OpenZR+ MSA)
- Hot pluggable QSFP-DD form factor, Type 2A (93.26 mm × 18.35 mm × 8.5 mm)
- Supports 400GAUI-8, 4×100GAUI-2, 2×100GAUI-2, 2×CAUI-4, 100GAUI-2, CAUI-4
- Compliant with QSFP-DD Hardware Rev 6.2 & Common Management Interface Rev 5.2
- Full C-band tunable, flex grid, compatible with LC duplex connectors
- Max power consumption: 21W

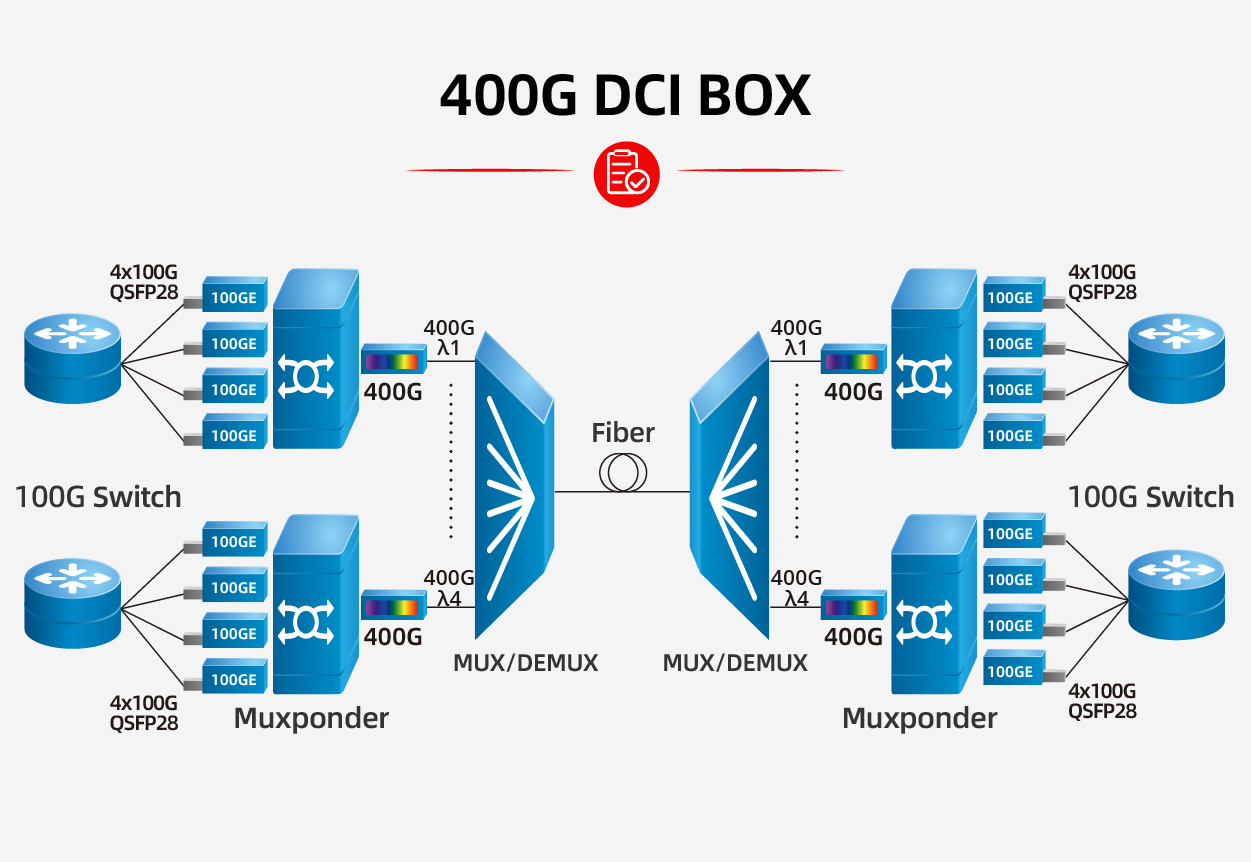

400G QSFP-DD Muxponder
- It supports four channels of 100G service transparent transmission and converts four channels of 100G service signal into one channel of single wavelength 400G coherent optical signal.
Application Scenarios
