Overview
The 800G OSFP HYBRID VR8-AOC replaces traditional 800G OSFP AOCs, while the 800G OSFP DR8 PHO silicon photonics module serves as a substitute for conventional 800G OSFP DR8 modules. Unlike traditional full-DSP optical modules, the HYBRID architecture uses DSP on only half of the channels, resulting in significantly reduced power consumption and latency.
While HYBRID modules and active optical cables draw on standard industry LPO/LRO design approaches, they offer a more advanced strategy for precise system-level signal alignment. The HYBRID design methodology can be conceptually represented by the formula: HYBRID = (LTO + LRO) / 2
This solution delivers high compatibility, low insertion loss, and flexible deployment, making it ideal for high-density, cost-efficient AI data center interconnects, achieving an optimal balance of transmission performance and cost efficiency.
Key Products & Highlights
800G OSFP HYBRID VR8-AOC – Next-Generation Replacement for Traditional 800G OSFP AOC
- Ultra-Low Power Consumption: <9 W, achieving approximately 20%–25% lower power than conventional DSP solutions.
- Extended Reach: Supports up to 30 m on OM3 and up to 50 m on OM4 (with KP4-FEC enabled).
- Reduced Link Latency: Link latency is reduced by nearly 50% compared with traditional DSP solutions.
- Superior Signal Quality: Designed to achieve pre-FEC BER of E-7/E-8, ensuring reliable high-speed transmission.
800G OSFP DR8 PHO (Pluggable Hybrid Optics) SiPh Module – Advanced Replacement for Traditional 800G OSFP DR8
- Ultra-Low Power Consumption: <13 W, achieving approximately 20% lower power than conventional DSP solutions.
- Extended Reach: Supports up to 500 m on single-mode fiber (SMF) with KP4-FEC enabled.
- Reduced Link Latency: Link latency reduced by nearly 50% compared with traditional DSP solutions.
- Superior Signal Quality: Designed to achieve pre-FEC BER of E-7/E-8, ensuring reliable high-speed transmission.

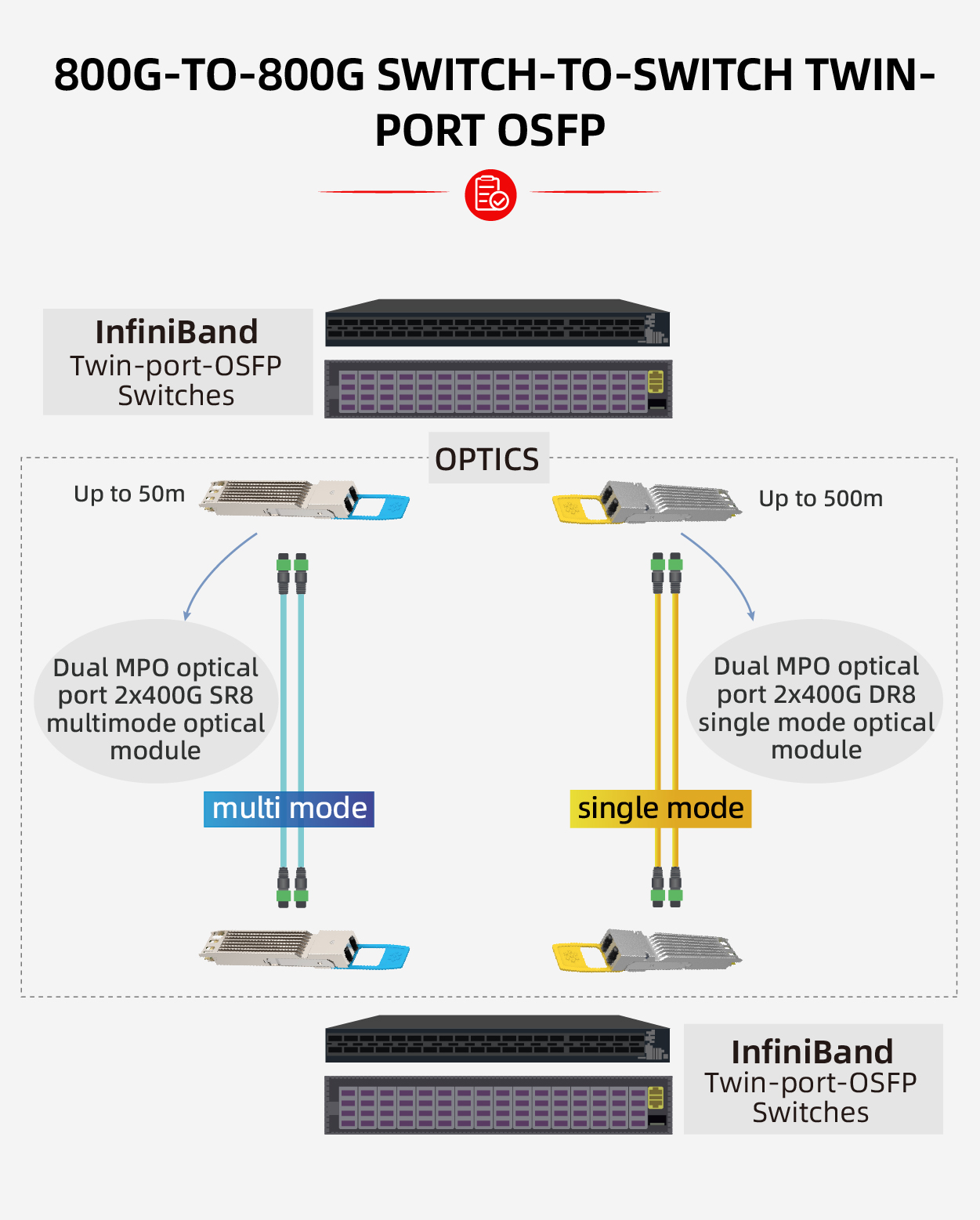

Application Scenarios
