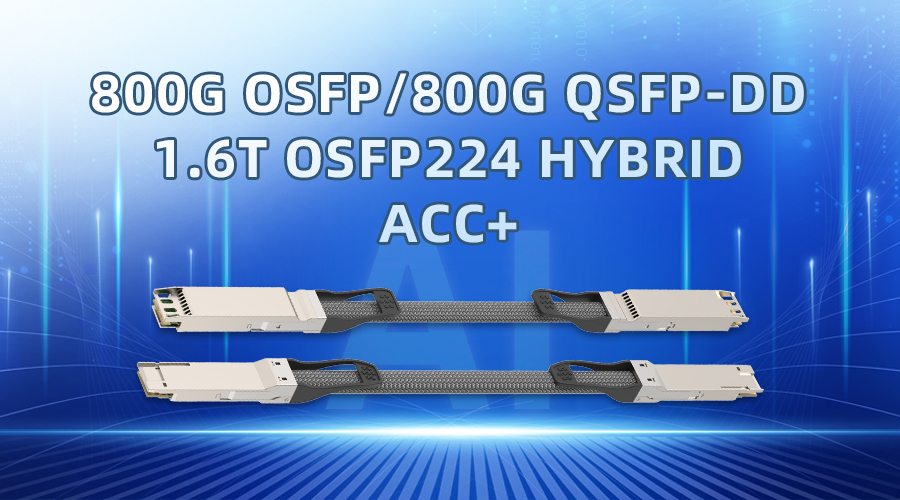

800G OSFP/800G QSFP-DD, 1.6T OSFP224 Hybrid Architecture Equivalent Active Copper Cable（HYBRID ACC+）Product Solution

    Overview

    GIGALIGHT’s 800G OSFP/800G QSFP-DD and 1.6T OSFP224 Hybrid ACC+ architecture copper cable products adopt a key invention patent dedicated to AI & DC interconnection systems: Hybrid Architecture Equivalent Active Copper Cable (Hybrid ACC+). It combines the advantages of existing PCC/ACC and AEC technologies, featuring a redesigned system interconnection architecture. The solution aims to reduce power consumption, latency, and cost by 50% compared with AEC cables, while achieving up to 80% of the optimal AEC transmission distance.

    Key Product Highlights

    • Transmission up to 5m
    • Only 4-channel DSP per end
    • Pre-FEC BER better than 1E-8
    • Comprehensive breakthrough of traditional AEC and ACC solutions

    GIGALIGHT Hybrid Architecture Equivalent ACC Portfolio

    No.NamePower Consumption
    1800G OSFP HYBRID ACC+ 7W
    2800G QSFP-DD HYBRID ACC+ 7W
    31.6T OSFP224 HYBRID ACC+ 13W

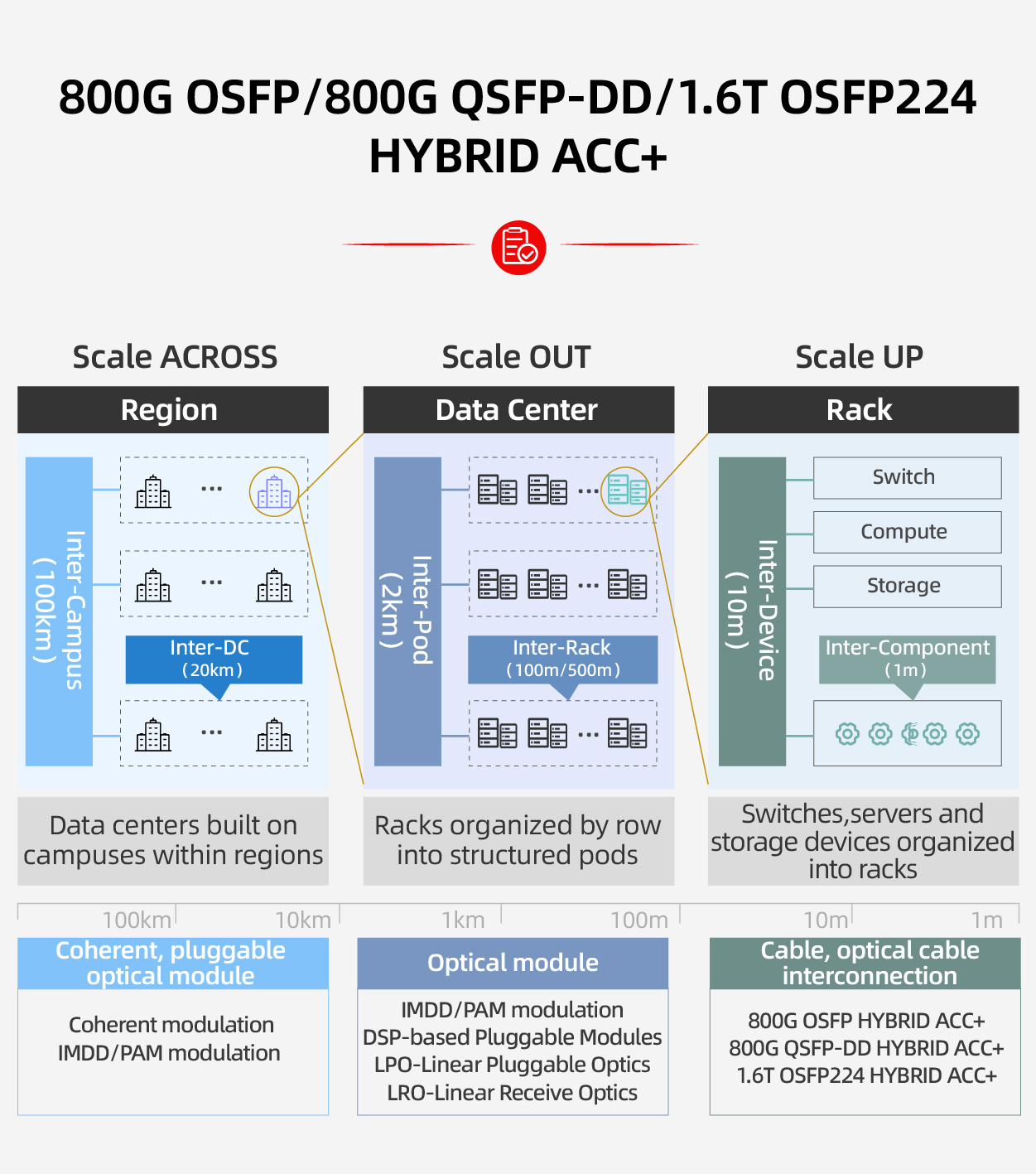

    Application Scenarios
