100G CFP4 LR4 (10km)

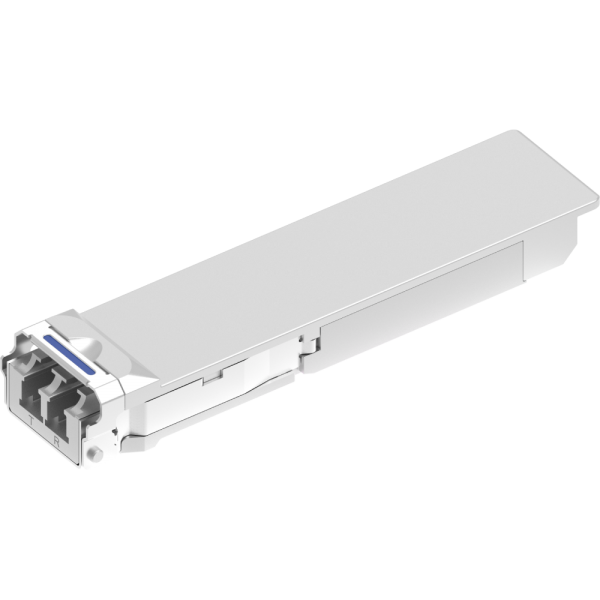

The Gigalight 100G CFP4 LR4 optical transceiver (GF4-S101-LR4C) is designed for Metro Area Network OTN OTU4 and Data Center 100GBASE-LR4 Ethernet links reach up to 10km over Single-Mode Fiber (SMF).

Get a Quote
Features
Applications
Datasheets
More

The Gigalight CFP4 100GEBASE-LR4 optical transceiver is a hot pluggable 100Gbps small-form-factor transceiver module. It is designed for use in 100 Gigabit Ethernet links and 4x28G OTN client interfaces over single mode fiber. It is compliant with the CFP MSA, IEEE 802.3ba 100GBASE LR4 and OTU4 4I1-9D1F. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. On the receiver side, the module de-multiplexes the 100Gb/s optical into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data. The module is a multi-rate optical transceiver which data rate up to 28Gbps per channel. The high performance cooled LAN WDM EML Integrated TOSA and PIN-base Integrated ROSA provide superior performance for Telecom and Datacom applications up to 10km links.

  • Hot-pluggable CFP4 form-factor
  • 4 channels full-duplex transceiver module
  • 4x cooling LAN-WDM EML transmitter TOSA and PIN ROSA
  • Internal CDR circuits on both receiver and transmitter channels
  • Compliant with CFP4 MSA, IEEE 802.3ba 100GBASE-LR4 and OTN OTU4
  • Data rate up to 111.8Gbps
  • Reach up to 10km over SMF
  • 4 parallel electrical serial interface and AC coupling of CML signals
  • MDIO real-time digital diagnostic and control capabilities
  • Power consumption < 4W
  • Duplex LC receptacles
  • Operating case temperature range from 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)
  • OTN OTU4 Metro Area Networks
  • 100GBASE-LR4 Ethernet Data Center Networks
  •
