100G CFP-DCO Optical Transceiver Modules

100G CFP-DCO

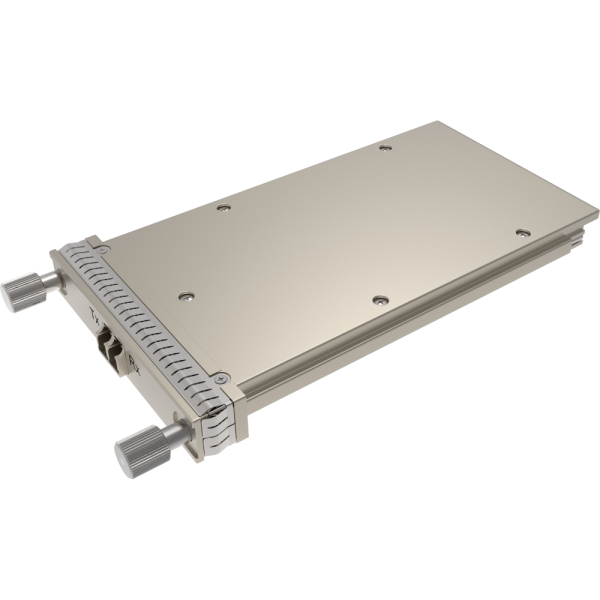

The Gigalight 100G CFP-DCO digital coherent optical transceiver is a hot-pluggable CFP form-factor optical module designed for 100G Ethernet and OTN OTU4 links reach up to 120km/600km/1200km over SMF. The CAUI and OTL4.10 electrical interface and MDIO management interface are built in the module. Get a Quote

Features

Applications

Datasheets

Part Number	Product Description
GCF-S101-ZR-1TC	100G CFP-DCO 120km w/ EDFA
GCF-S101-ZR-0TC	100G CFP-DCO 120km w/o EDFA
GCF-S101-MR-1TC	100G CFP-DCO 600km w/ EDFA
GCF-S101-MR-0TC	100G CFP-DCO 600km w/o EDFA
GCF-S101-LH-1TC	100G CFP-DCO 1200km w/ EDFA
GCF-S101-LH-0TC	100G CFP-DCO 1200km w/o EDFA

100G CFP-DCO 120km w/ EDFA - GCF-S101-ZR-1TC

Full C-band 50GHz ITU-T transmitter
Built in Client and line OTN processing
Low latency E-FEC
Data rate up to 128Gbps
Compliant with CFP MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
Compliant with OTL4.10 and CAUI
Transmission distance up to 120km
Integrated with EDFA
Power consumption < 22W
Duplex LC receptacles
Hot-pluggable electrical interface
Operating case temperature range 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

100G CFP-DCO 120km w/o EDFA - GCF-S101-ZR-0TC

Full C-band 50GHz ITU-T transmitter
Built in Client and line OTN processing
Low latency E-FEC
Data rate up to 128Gbps
Compliant with CFP MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
Compliant with OTL4.10 and CAUI
Transmission distance up to 120km
Without EDFA
Power consumption < 21W
Duplex LC receptacles
Hot-pluggable electrical interface
Operating case temperature range 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

100G CFP-DCO 600km w/ EDFA - GCF-S101-MR-1TC

Full C-band 50GHz ITU-T transmitter
Built in Client and line OTN processing
Low latency H-FEC
Data rate up to 128Gbps
Compliant with CFP MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
Compliant with OTL4.10 and CAUI
Transmission distance up to 600km
Integrated with EDFA
Power consumption < 23W
Duplex LC receptacles
Hot-pluggable electrical interface
Operating case temperature range 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

100G CFP-DCO 600km w/o EDFA - GCF-S101-MR-0TC

Full C-band 50GHz ITU-T transmitter
Built in Client and line OTN processing
Low latency H-FEC
Data rate up to 128Gbps
Compliant with CFP MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
Compliant with OTL4.10 and CAUI
Transmission distance up to 600km
Without EDFA
Power consumption < 22W
Duplex LC receptacles
Hot-pluggable electrical interface
Operating case temperature range 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

100G CFP-DCO 1200km w/ EDFA - GCF-S101-LH-1TC

Full C-band 50GHz ITU-T transmitter
Built in Client and line OTN processing
Low latency SD-FEC
Data rate up to 128Gbps
Compliant with CFP MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
Compliant with OTL4.10 and CAUI
Transmission distance up to 1200km
Integrated with EDFA
Power consumption < 29W
Duplex LC receptacles
Hot-pluggable electrical interface
Operating case temperature range 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

100G CFP-DCO 1200km w/o EDFA - GCF-S101-LH-0TC

Full C-band 50GHz ITU-T transmitter
Built in Client and line OTN processing
Low latency SD-FEC
Data rate up to 128Gbps
Compliant with CFP MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
Compliant with OTL4.10 and CAUI
Transmission distance up to 1200km
Without EDFA
Power consumption < 28W
Duplex LC receptacles
Hot-pluggable electrical interface
Operating case temperature range 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

Product Name	CFP-DCO ZR	CFP-DCO MR	CFP-DCO LH
Data Rate	100GE/OTU4	100GE/OTU4	100GE/OTU4
Application	120km DWDM/P2P	600km DWDM	2000km DWDM
CAUI-4 for 100GBE host interface	✔	✔	✔
OTL4.4 for OTU4 host interface	✔	✔	✔
Built-in OTN Processing	✔	✔	✔
Interoperability with G.709 FEC	✔	✔	✔
PRBS generation & detection for line/host interfaces	✔	✔	✔
CFP MSA compliant	✔	✔	✔

100GbE IEEE 802.3bj
ITU-T G.709/Y.1331 for OTN
Switch to switch interface or switch to router interface
Access/Metro/Long-haul Ethernet DWDM networks
