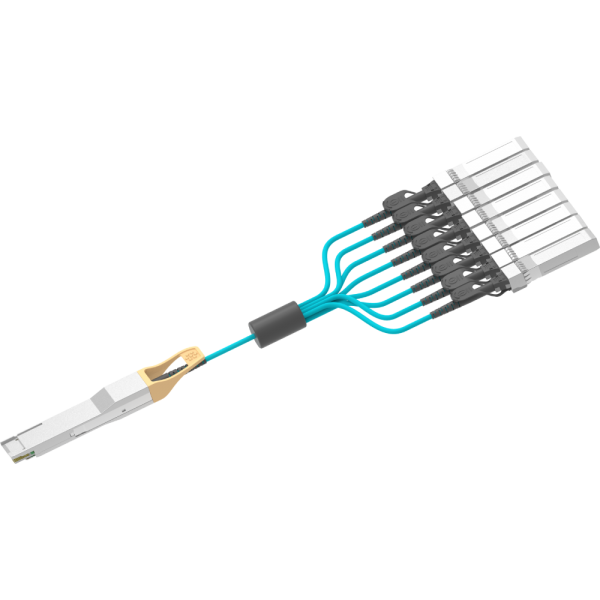

400G QSFP56-DD To 8x 50G SFP56 AOC(1~100m)

The GIGALIGHT 400G QSFP56-DD to 8x 50G SFP56 AOC active optical cable is used for short-distance branch interconnection between internal devices in the data center, conforms to IEEE 802.3cm 400GBASE-SR8 transmission protocol, and is also compatible with IEEE 802.3cd 50GBASE-SR and InfiniBand HDR transmission protocol. This series of products uses 8 pairs of parallel multimode optical fiber transmission, and the distance can reach up to 70m (OM3) or 100m (OM4/OM5).

Description

  • An active optical cable assembly integrating one 400G QSFP-DD SR8 and eight 50G SFP56 SR optical transceiver modules at both ends
  • Each side contains 8 channels of 850nm VCSEL and PIN
  • The transmission rate per channel can reach up to 53.125Gbps (50G PAM4)
  • Compliant with QSFP-DD/SFP56 MSA, CMIS and IEEE 802.3cm 400GBASE-SR8 transmission protocol
  • Compatible with IEEE 802.3cd 200GBASE-SR2 and InfiniBand HDR transmission protocols
  • Using 8 pairs of parallel multimode optical fiber transmission, the distance can reach up to 70m (OM3) or 100m (OM4/OM5)
  • Power consumption less than 9W (400G QSFP-DD SR8 optical module) or 2W (each 50G SFP56 SR optical module)
  • Commercial grade operating temperature range
  • Power supply voltage 3.3V
  • Comply with RoHS environmental protection standard (lead-free)





P/N Description
GDS8-MDO401-xxxC 400G QSFP56-DD to 8x 50G SFP56 AOC

Additional information

Product Type

Application

Data Rate

,

Protocol

,

Form Factor

,

Reach

Media Type

Wavelength

Data Sheet
