Description

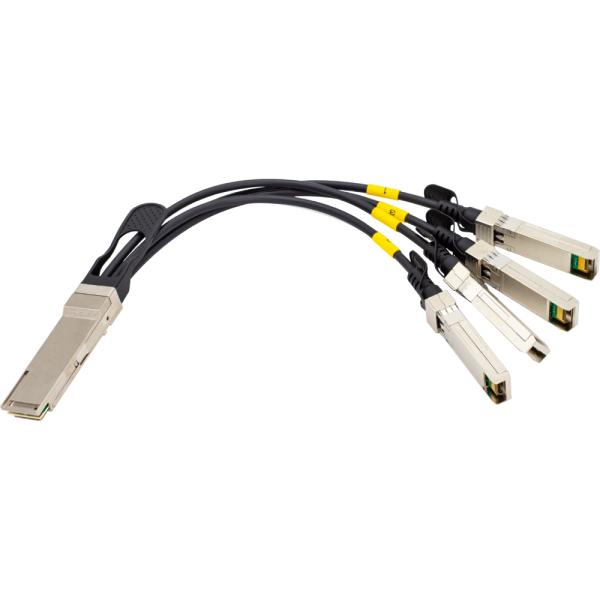

- The QSFP+ hot-pluggable package module coaxial cable assembly is used
- 4-channel 10G NRZ modulation
- TAvailable in QSFP+/SFP+ hot-swappable package module coaxial cable assembly
- 4-channel 10G NRZ modulation
- The transmission rate per lane can reach up to 10.3125Gbps
- Complies with QSFP+/SFP+ MSA and IEEE 802.3ba 40GBASE-CR4 Ethernet transport protocols
- Compatible with 10GSFP+Cu Ethernet and InfiniBand QDR transmission protocol
- Cable length up to 3m (30AWG)
- The bit error rate (BER) is better than 1E-15
- Near-zero power consumption
- I2C management interface
- The supply voltage is 3.3V
- LSZH (LSZH (LSZH Free Cable) cable outer material
- LF (lead-free) HF (halogen-free) PCB
- RoHS compliant (lead-free)
| Product Model | GQS-4SFPPC-xxC | |
|---|---|---|
| Distance (m) | 1-3 | 4-5 |
| Cable Gauge (AWG) | 30 | 26 |
