Description

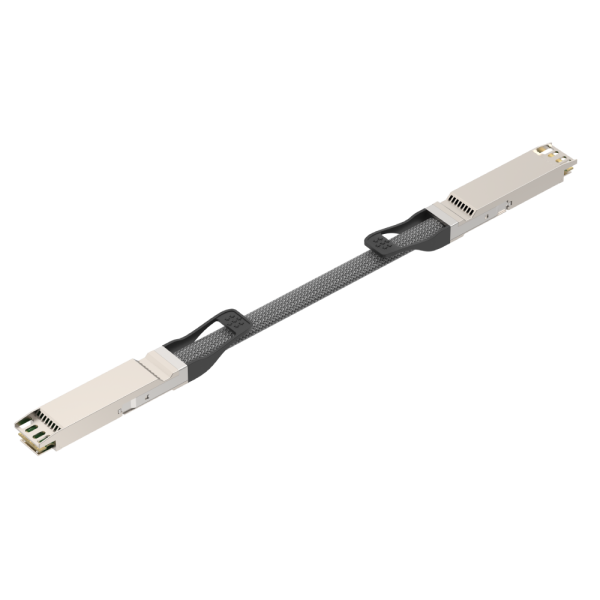

- Utilizes OSFP-RHS hot-pluggable module and coaxial cable assembly
- 8-channel 100G PAM4 modulation
- Maximum per-channel data rate of 106.25Gbps
- Complies with OSFP MSA, CMIS, and IEEE 802.3ck 800GBASE-CR8 Ethernet transmission protocols
- Compatible with InfiniBand NDR transmission protocol
- Customizable cable length up to 1m (30AWG) or 2m (26AWG)
- Bit Error Rate (BER) better than 1E-15
- Near-zero power consumption
- I2C management interface
- Power supply voltage of 3.3V
- LSZH (Low Smoke Zero Halogen) cable jacket material
- LF (Lead-Free) HF (Halogen-Free) PCB
- Complies with RoHS environmental standards (Lead-Free)
| Product Model | GOP-PC801-XXC | |
|---|---|---|
| Distance (Meter) | 0.5~1 | 2 |
| Cable Gauge (AWG) | 30 | 26 |
