Description

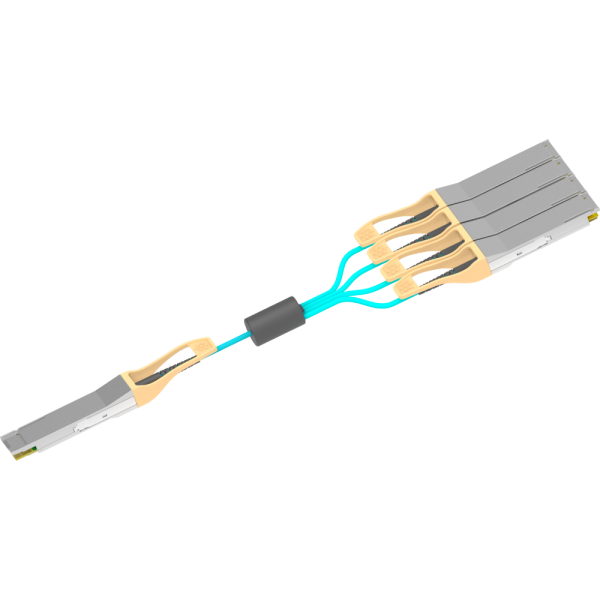

• An active optical cable assembly integrating one 200G QSFP-DD SR8 and four 50G QSFP28 SR2 optical transceiver modules at both ends
• Each side contains 8 channels of 850nm VCSEL and PIN
• The transmission rate per channel can reach up to 25.78125Gbps
• Compliant with QSFP-DD/QSFP28 MSA, CMIS and IEEE 802.3bm 100GBASE-SR4 Ethernet transmission protocol
• Compatible with InfiniBand EDR transmission protocol
• Using 8 pairs of parallel multimode optical fiber transmission, the distance can reach up to 70m (OM3) or 100m (OM4)
• Power consumption less than 4W (200G QSFP-DD SR8 optical module) or 1.5W (each 50G QSFP28 SR2 optical module)
• Commercial grade operating temperature range
• Power supply voltage 3.3V
• Comply with RoHS environmental protection standard (lead-free)
