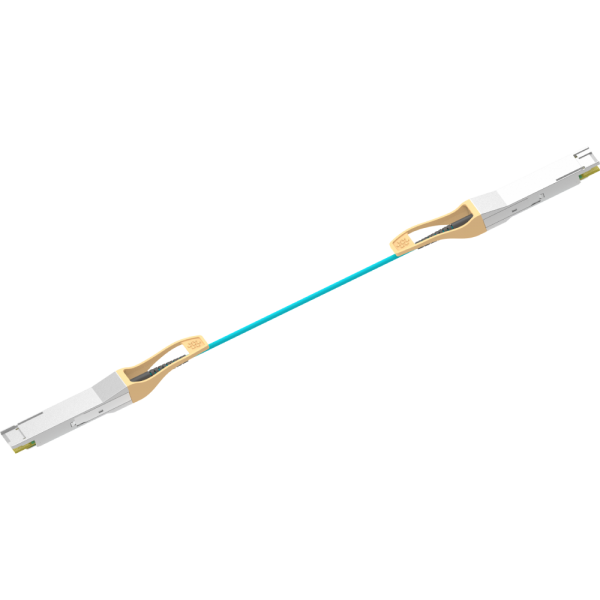

200G QSFP-DD AOC 1m-100m (I-Temp Optional)

GIGALIGHT's 200G QSFP-DD AOC (Active Optical Cable) assemblies are designed to support 200G Ethernet and InfiniBand EDR, suitable for data center and HPC (High-Performance Computing) links up to 100m over multi-mode fiber with FEC. The 200G QSFP-DD AOC assemblies are compatible with IEEE 802.3bm 100GBASE-SR4 and support eight electrical interface lanes which operate in 25G NRZ encoding mode resulting in 200G (8x25G) data rate. The 2x100GBASE-SR4 AOC assemblies are used to connect multiple 200G signals from the server side (NICs) to the data center aggregation switch.Get a Quote

Features

Applications

Datasheets

Hot-pluggable QSFP-DD form factor full-duplex transceiver assembly
8-channel 850nm VCSEL array and PIN photo-detector array
Data rate up to 25.78125Gbps per channel
Compliant with QSFP-DD MSA, CMIS 4.0 and IEEE 802.3bm 100GBASE-SR4
Compliant with IEEE 802.3ba 40GBASE-SR4 and InfiniBand QDR/EDR
Internal CDR circuits on both receiver and transmitter channels
Supports CDR bypass
Customizable length up to 70m (OM3) or 100m (OM4)
4W maximum power dissipation per 200G QSFP-DD SR8 module
Case operating temperature range: C-Temp or I-Temp
Single 3.3V power supply
Built-in digital diagnostic functionality
RoHS compliant (lead free)

Part Number	Product Description
GQD-MDO201-xxxC	200G QSFP-DD AOC 1m-100m
GQD-MDO201-xxxT	200G QSFP-DD AOC 1m-100m, I-Temp

100G Ethernet IEEE 802.3bm 100GBASE-SR4
40G Ethernet IEEE 802.3ba 40GBASE-SR4
InfiniBand QDR/EDR
Data Center Intraconnection
High-Performance Computing

200G QSFP28-DD AOC - GQD-MDO201-xxxC

Name*
Email*
Company*
Phone
Product*

200G QSFP-DD AOC 1m-100m (I-Temp Optional)

200G QSFP56 AOC Lite 1m-35m

200G QSFP56 AOC 1m-100m

200G QSFP56 to 2x 100G QSFP56 Breakout AOC 1m-100m

200G QSFP56 to 4x 50G QSFP56 Breakout AOC 1m-100m

200G QSFP56 to 4x 50G SFP56 Breakout AOC 1m-100m

200G QSFP-DD to 2x 100G QSFP28 Breakout AOC 1m-100m (I-Temp Optional)

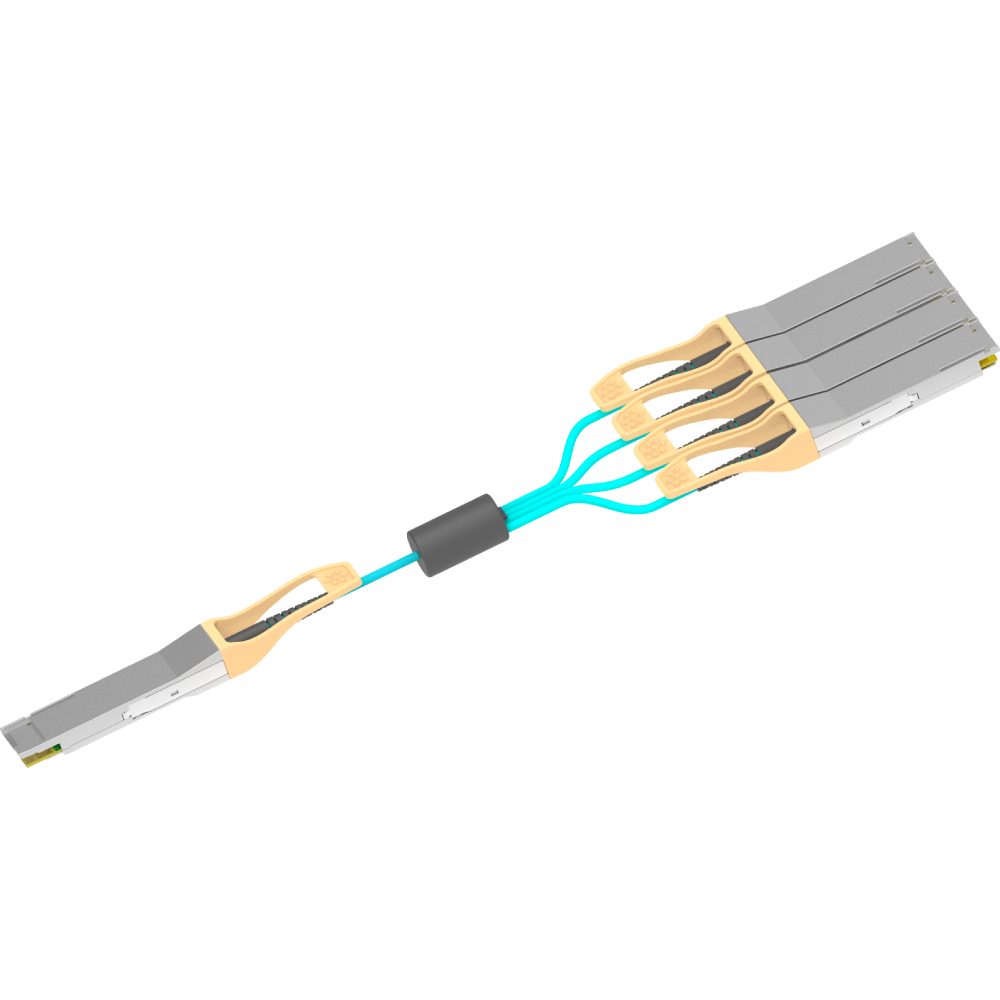

200G QSFP-DD to 4x 50G QSFP28 Breakout AOC 1m-100m (I-Temp Optional)
