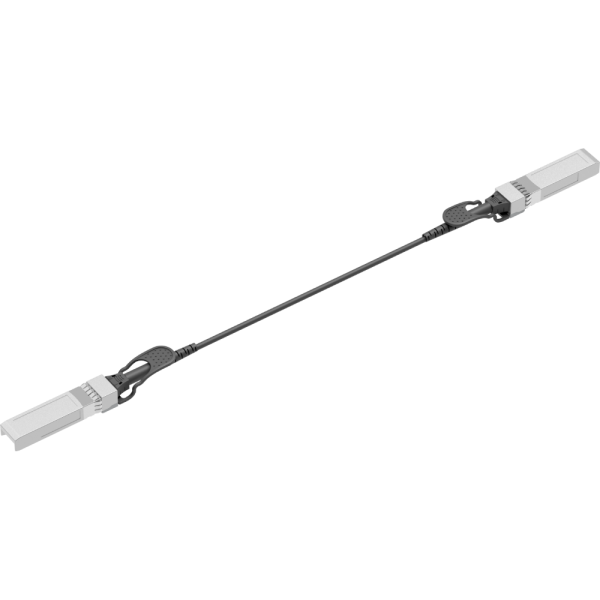

25G eCPRI SFP28 HAOC

GIGALIGHT's 25G SFP28 HAOC is used for 5G Open RAN fronthaul, supporting 25G Ethernet and eCPRI transmission protocol. This series of products includes two types: multi-mode and single-mode; multi-mode is used for interconnection within 300m; single-mode is used for interconnection within 20km.Get a Quote
Features
Applications
Datasheets
More

Ordering Information

Part Number Product Description
TBD Multimode 25G SFP28 HAOC, 1m~100m, I-temp, 850nm VCSEL+PIN, 1W
TBD Multimode 25G SFP28 HAOC, 1m~300m, I-temp, 850nm VCSEL+PIN, 1W
TBD Singlemode 25G SFP28 HAOC, 1m~10km, I-temp, 1310nm DML+PIN, 1W
TBD Singlemode 25G SFP28 HAOC, 1m~20km, I-temp, 1310nm DML+PIN, 1W

Product Features

  • Hot-pluggable SFP28 form-factor connectors
  • Full-duplex active optical cable (one 25G SFP28 transceiver at each end)
  • Multimode: 850nm VCSEL laser and PIN photodetector
  • Single mode: 1310nm DML laser and PIN photodetector
  • Internal CDR circuits on both receiver and transmitter channels
  • Compliant with SFP28 MSA and IEEE 802.3by Ethernet standards
  • Data rate up to 25.78Gbps
  • Power consumption < 1W per end
  • Built-in digital diagnosis function
  • Operating case temperature range from -40℃ to +85℃
  • 3.3V power supply voltage
  • RoHS compliant (lead free)
  • Datacenter 25G(25GBASE-SR)Ethernet
  • 5G OPEN RAN
  •
