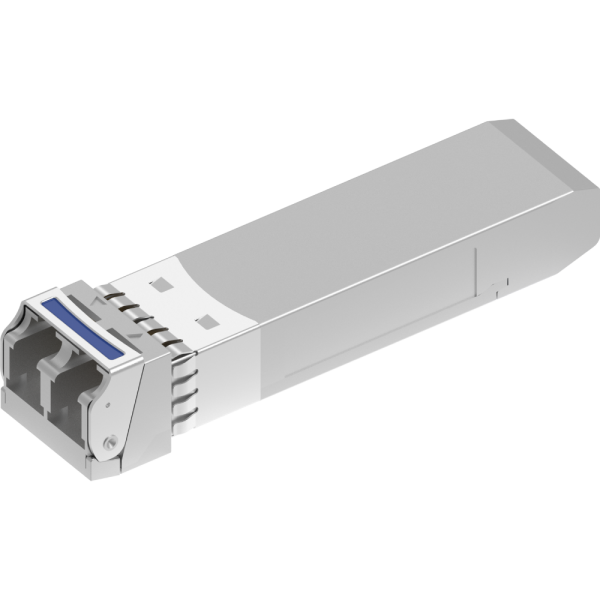

25G SFP28 LR 10km/20km

GIGALIGHT's 25G SFP28 LR optical transceiver modules series includes standard version , liquid version and RX version, designed for 25GBASE-LR Ethernet and CPRI/eCPRI links reach up to 300m or 10km over SMF.Get a Quote

Features

Applications

Datasheets

More

Part Number	Product Description
GSS-SPO250-LSC	25GE SFP28 LR Lite, 1310nm, 300m, SMF, Dual LC
GSS-SPO250-LST	25GE/eCPRI SFP28 LR Lite, 1310nm, 300m, SMF, Dual LC, I-Temp
GSS-SPO250-LRC	25GE SFP28 LR, 1310nm, 10km, SMF, Dual LC
GSS-SPO250-LRT	25GE/eCPRI SFP28 LR, 1310nm, 10km, SMF, Dual LC, I-Temp
GSSR-SPO250-LRT	25GE/eCPRI SFP28 LR Rx, 1310nm, 10km, SMF, LC, I-Temp

25GE SFP28 LR Lite - GSS-SPO250-LSC

Hot-pluggable SFP28 form factor transceiver module
Supports 25.78Gbps data rate
Reach up to 300m over SMF
1310nm DFB laser and PIN photo-detector
Internal CDR on both transmitter and receiver channels
Duplex LC receptacles
Single 3.3V power supply
Power dissipation < 1W
RoHS 2.0 compliant (2011/65/EU, lead free)
Industrial operating case temperature range: -40℃ to +85℃

25GE/eCPRI SFP28 LR Lite (IT) - GSS-SPO250-LST

Hot-pluggable SFP28 form factor transceiver module
Supports 24.33Gbps and 25.78Gbps data rates
Reach up to 300m over SMF
1310nm DFB laser and PIN photo-detector
Internal CDR on both transmitter and receiver channels
Duplex LC receptacles
Single 3.3V power supply
Power dissipation < 1W
RoHS 2.0 compliant (2011/65/EU, lead free)
Industrial operating case temperature range: -40℃ to +85℃

25GE SFP28 LR - GSS-SPO250-LRC

Hot-pluggable SFP28 form factor transceiver module
Supports 25.78Gbps data rate
Reach up to 10km over SMF
1310nm DFB laser and PIN photo-detector
Internal CDR on both transmitter and receiver channels
Duplex LC receptacles
Single 3.3V power supply
Power dissipation < 1W
RoHS 2.0 compliant (2011/65/EU, lead free)
Commercial operating case temperature range: 0℃ to 70℃

25GE/eCPRI SFP28 LR (IT) - GSS-SPO250-LRT

Hot-pluggable SFP28 form factor transceiver module
Supports 24.33Gbps and 25.78Gbps data rates
Reach up to 10km over SMF
1310nm DFB laser and PIN photo-detector
Internal CDR on both transmitter and receiver channels
Duplex LC receptacles
Single 3.3V power supply
Power dissipation < 1.2W
RoHS 2.0 compliant (2011/65/EU, lead free)
Industrial operating case temperature range: -40℃ to +85℃

25GE/eCPRI SFP28 LR Rx (IT) - GSSR-SPO250-LRT

Hot-pluggable SFP28 form factor receiver module
Data rate up to 25.78Gbps
Compliant with SFP28 MSA, IEEE 802.3by 25GBASE-LR and CPRI/eCPRI
25G PIN receiver (without transmitter)
Internal CDR on receiver channel
Reach up to 10km over SMF
Power consumption < 1.0W
LC receptacle
Industrial operating case temperature range: -40℃ to +85℃
Single 3.3V power supply
RoHS 2.0 compliant (2011/65/EU, lead free)

25GBASE-LR Ethernet
5G Fronthaul CPRI/eCPRI
DPI

25GE SFP28 LR - GSS-SPO250-LRC

　　　　　　　　　　　　　　　　　　　　

25GE/CPRI SFP28 LR (IT) - GSS-SPO250-LRT

　　　　　　　　　　　　　　　　　　　　

25GE SFP28 LR (COB) - GSS-SPO250-LRCC

　　　　　　　　　　　　　　　　　　　　

　　　　　
