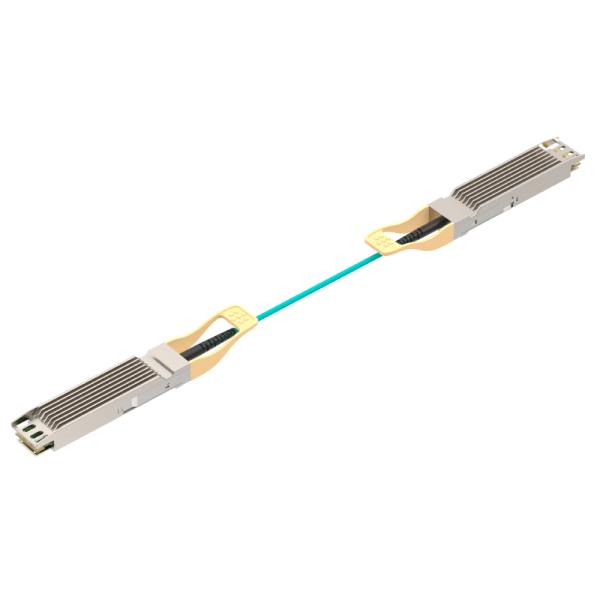

800G OSFP AOC

The GIGALIGHT 800G OSFP pluggable active optical cable assemblies support 800G Ethernet and InfiniBand NDR data rates.

Description

  • Hot-pluggable OSFP active optical cable assemblies
  • 8x 100G PAM4 electrical interface
  • 8x 100G PAM4 optical interface
  • Data rate up to 106.25Gbps per channel
  • Compliant with OSFP MSA, CMIS and IEEE 802.3
  • Low power dissipation
  • Commercial case operating temperature range
  • Single 3.3V power supply
  • Built-in digital diagnostic functionality
  • RoHS compliant (lead free)
Description Data Rate Distance Max. Power Consumption Operating Temp.
800G OSFP AOC 800Gbps 70m (OM3)
100m (OM4/OM5)
15W C
800G OSFP to 2x400G OSP112 Breakout AOC 800Gbps 70m (OM3)
100m (OM4/OM5)
14W (800G)
9W (400G)
C

Additional information

Data Rate

Application

Form Factor

Media Type

Product Type

Protocol

,

Reach

Wavelength
