immersible-qsfp-sr

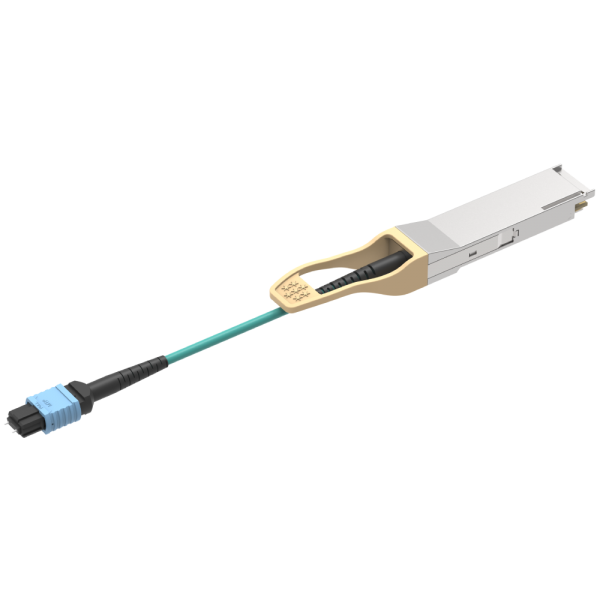

Immersible 100G QSFP28

GIGALIGHT provides data center and 5G fronthaul networks with a series of immersible 100G QSFP28 pluggable optical transceiver modules that support 100G Ethernet and CPRI data rates.

Description

Hot-pluggable QSFP28 transceiver modules with MPO pigtail
Data rate up to 103.125Gbps
Compliant with QSFP28 MSA and IEEE 802.3
Low power dissipation
Case operating temperature range: 0°C to 60°C
Single 3.3V power supply
Built-in digital diagnostic functionality
RoHS compliant (lead free)

Additional information

Product Type	Immersion Liquid Cooling Optics
Application	Data Center
Data Rate	100G-112G
Protocol	Ethernet, InfiniBand
Form Factor	QSFP28
Reach	2km-20km, < 500m
Media Type	MMF
Wavelength	850nm
Interface	MPO/MTP Pigtail

Ordering Information

Description	Data Rate	Distance	Center Wavelength	Pigtail Type	P/N
100G QSFP28 SR4	100GE	100m	850nm	MPO12	GL-Q101SR4-M(D)xx
100G QSFP28 PSM4	100GE	2km/10km	1310nm	MPO12	GL-P101LR4-Mxx
