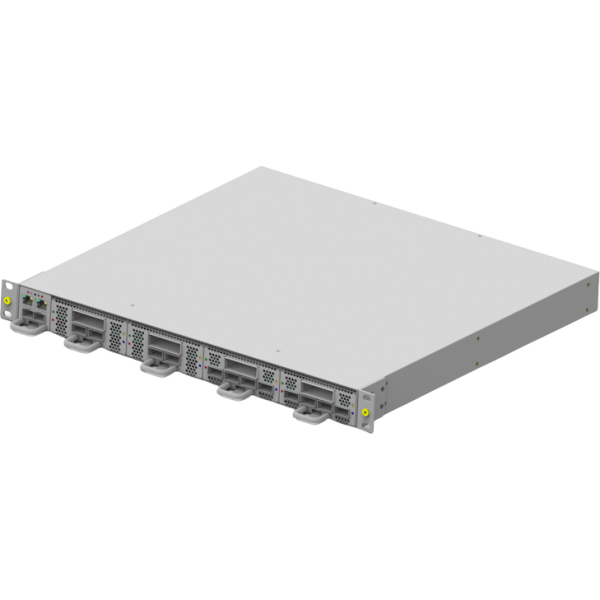

1U 1.6T DCI BOX 2.0

The GIGALIGHT 1U 1.6T DCI BOX 2.0 is an open coherent DWDM optical transport platform for data center interconnect (DCI) and metro optical transmission applications.


  • Up to 1.6T bandwidth for total 1U chassis
  • 100G QSFP28 client ports
  • 100G/200G/400G CFP2 coherent optical module line interface
  • Supports Web and SNMP management
  • Supports OSC out-of-band management


Parameters Specifications
Max. Capacity 4x 400G
Wavelength (Frequency) Range 1529.16nm to 1567.14nm(191.30THz to 196.05THz)
Capacity per Wavelength 400G/200G/100G, QPSK/8QAM/16QAM
Physical Network Topology Chain, Star, Ring
Environmental Requirements Operating Temperature -10 to +60
Storage Temperature -40 to +80
Relative Humidity 5% to 95% (no condensation)
Dimension 482.6mm (W) × 44.5mm (H) × 400mm (D)
Cooling Front-to-back Airflow, FRU Fans
Structure All-in-one Chassis, 19-inch Rack
Power Supply AC (100V to 240V, 50/60HZ), DC (-36V to 72V)
Safety and EMC FCC, UL, CE, TUV, CSA
Power Consumption < 350W
