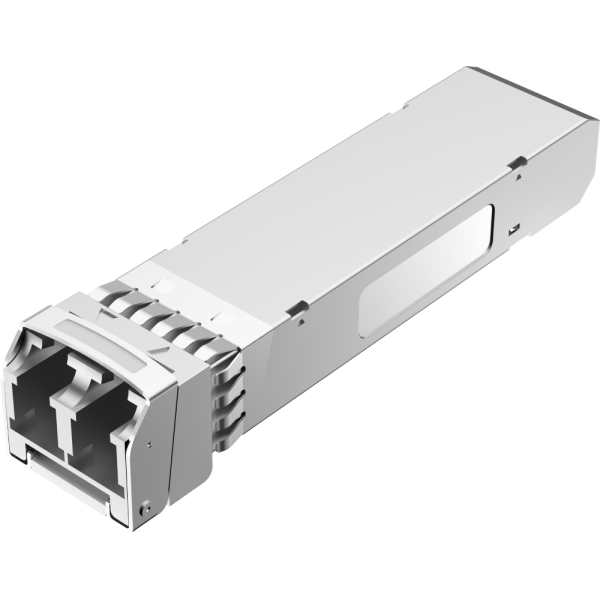

16GFC DWDM SFP+ Optical Transceiver Modules

16GFC DWDM SFP+

GIGALIGHT's 16GFC DWDM SFP+ optical transceiver modules are designed for 16G Fibre Channel links reach up to 10km/40km over Single-Mode Fiber (SMF).Get a Quote
Features
Applications
Datasheets
More
Part Number Product Description
GDP-xx14G-01C 16GFC DWDM SFP28 LR, C18-C61, 10km, SMF, Dual LC
GDP-xx14G-01T 16GFC DWDM SFP28 LR, C18-C61, 10km, SMF, Dual LC, I-Temp
GDP-xx14G-04C 16GFC DWDM SFP28 ER, C18-C61, 40km, SMF, Dual LC
GDP-xx14G-04T 16GFC DWDM SFP28 ER, C18-C61, 40km, SMF, Dual LC, I-Temp

Note: xx options are 18-61. 18 means C18, 19 means C19, ..., and 61 means C61.

Examples: GDP-1814G-01C, GDP-6114G-01T, GDP-1814G-04C, ..., and GDP-6114G-04T.

16GFC DWDM SFP+ LR C18-C61 10km - GDP-xx14G-01C

  • Hot-pluggable SFP+ form factor
  • Supports 4G/8G/16G Fibre Channel data rates
  • C-band C18-C61 (100GHz spacing) Cooled DWDM EML transmitter and APD receiver
  • Compliant to ITU-T 694.1
  • Internal CDR circuits on both receiver and transmitter channels
  • Low power dissipation
  • Maximum link length: 10km on SMF
  • Duplex LC connector
  • Commercial operating case temperature range: 0°C to 70°C
  • Single 3.3V power supply
  • RoHS 2.0 compliant (2011/65/EU, lead free)

16GFC DWDM SFP+ LR C18-C61 10km (IT) - GDP-xx14G-01T

  • Hot-pluggable SFP+ form factor
  • Supports 4G/8G/16G Fibre Channel data rates
  • C-band C18-C61 (100GHz spacing) Cooled DWDM EML transmitter and APD receiver
  • Compliant to ITU-T 694.1
  • Internal CDR circuits on both receiver and transmitter channels
  • Low power dissipation
  • Maximum link length: 10km on SMF
  • Duplex LC connector
  • Industrial operating case temperature range: -40°C to +85°C
  • Single 3.3V power supply
  • RoHS 2.0 compliant (2011/65/EU, lead free)

16GFC DWDM SFP+ ER C18-C61 40km - GDP-xx14G-04C

  • Hot-pluggable SFP+ form factor
  • Supports 4G/8G/16G Fibre Channel data rates
  • C-band C18-C61 (100GHz spacing) Cooled DWDM EML transmitter and APD receiver
  • Compliant to ITU-T 694.1
  • Internal CDR circuits on both receiver and transmitter channels
  • Low power dissipation
  • Maximum link length: 40km on SMF
  • Duplex LC connector
  • Commercial operating case temperature range: 0°C to 70°C
  • Single 3.3V power supply
  • RoHS 2.0 compliant (2011/65/EU, lead free)

16GFC DWDM SFP+ ER C18-C61 40km (IT) - GDP-xx14G-04T

  • Hot-pluggable SFP+ form factor
  • Supports 4G/8G/16G Fibre Channel data rates
  • C-band C18-C61 (100GHz spacing) Cooled DWDM EML transmitter and APD receiver
  • Compliant to ITU-T 694.1
  • Internal CDR circuits on both receiver and transmitter channels
  • Low power dissipation
  • Maximum link length: 40km on SMF
  • Duplex LC connector
  • Industrial operating case temperature range: -40°C to +85°C
  • Single 3.3V power supply
  • RoHS 2.0 compliant (2011/65/EU, lead free)
  • 4G/8G/16G Fibre Channel
  •
