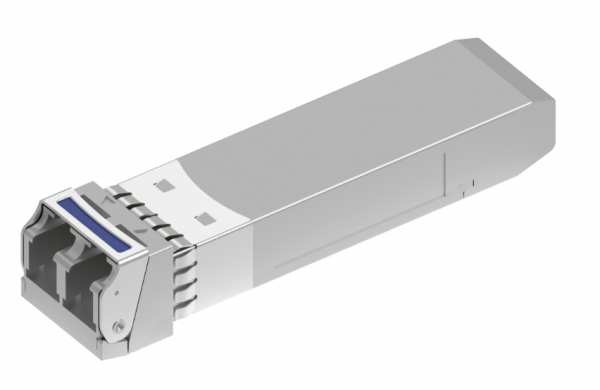

6G/10G CPRI SFP+ Optical Transceiver Modules

6G/10G CPRI SFP+

GIGALIGHT's 6G/10G CPRI SFP+ optical transceiver modules are designed for Mobile Fronthaul links reach up to 300m-80km over dual fibers.Get a Quote
Features
Applications
Datasheets
More
Part Number Product Description
GPP-31192-02TI 6G/10G CPRI SFP+, 1310nm, 2km, SMF, Dual LC, I-Temp
GPP-31192-L1TI 6G/10G CPRI SFP+, 1310nm, 10km, SMF, Dual LC, I-Temp
GPP-31192-L2TI 6G/10G CPRI SFP+, 1310nm, 20km, SMF, Dual LC, I-Temp
GPP-31192-L4TI 6G/10G CPRI SFP+, 1310nm, 40km, SMF, Dual LC, I-Temp
GPP-55192-ZRT 10GE/CPRI/OTN SFP+ ZR, 1550nm, 80km, SMF, Dual LC, I-Temp

6G/10G CPRI SFP+ 1310nm 2km (IT) - GPP-31192-02TI

  • Up to 11.3G bit rates
  • Support CPRI line bit data rate from option 6 to option 8
  • Hot-pluggable SFP+ footprint
  • +3.3V single power supply
  • Electrical interface compliant to SFF-8431
  • 2km link length
  • Low power dissipation (0.9W typical)
  • Duplex LC connector
  • 1310nm FP transmitter, PIN photo-detector
  • Industrial operating case temperature range: -40ºC to +85ºC
  • Built-in digital diagnostic functions
  • RoHS-6 compliant (lead-free)

6G/10G CPRI SFP+ 1310nm 10km (IT) - GPP-31192-L1TI

  • Up to 11.3G bit rates
  • Support CPRI line bit data rate from option 6 to option 8
  • Hot-pluggable SFP+ footprint
  • +3.3V single power supply
  • Electrical interface compliant to SFF-8431
  • 10km link length
  • Low power dissipation (1.1W typical)
  • Duplex LC connector
  • 1310nm DFB transmitter, PIN photo-detector
  • Industrial operating case temperature range: -40ºC to +85ºC
  • Built-in digital diagnostic functions
  • RoHS-6 compliant (lead-free)

6G/10G CPRI SFP+ 1310nm 20km (IT) - GPP-31192-L2TI

  • Up to 11.3G bit rates
  • Support CPRI line bit data rate from option 6 to option 8
  • Hot-pluggable SFP+ footprint
  • +3.3V single power supply
  • Electrical interface compliant to SFF-8431
  • 20km link length
  • Low power dissipation (1.1W typical)
  • Duplex LC connector
  • 1310nm DFB transmitter, PIN photo-detector
  • Industrial operating case temperature range: -40ºC to +85ºC
  • Built-in digital diagnostic functions
  • RoHS-6 compliant (lead-free)

6G/10G CPRI SFP+ 1310nm 40km (IT) - GPP-31192-L4TI

  • Up to 11.3G bit rates
  • Support CPRI line bit data rate from option 6 to option 8
  • Hot-pluggable SFP+ footprint
  • +3.3V single power supply
  • Electrical interface compliant to SFF-8431
  • 20km link length
  • Low power dissipation (1.3W typical)
  • Duplex LC connector
  • 1310nm DFB transmitter, APD photo-detector
  • Industrial operating case temperature range: -40ºC to +85ºC
  • Built-in digital diagnostic functions
  • RoHS-6 compliant (lead-free)

10GE/CPRI/OTN SFP+ ZR 1550nm 80km (IT) - GPP-55192-ZRT

  • Hot-pluggable SFP+ footprint
  • Supports 9.8 to 11.3 Gb/s
  • Link length up to 80km on G.652D SMF
  • Industrial operating case temperature range: -40ºC to +85ºC
  • 1550nm cooled EML transmitter and APD receiver
  • Maximum power dissipation <2W (Typical 1.4W)
  • Single 3.3V power supply
  • Duplex LC connector
  • Built-in digital diagnostic functions
  • RoHS compliant (lead free)
  • 10G Ethernet
  • CPRI option 6/7/8
  • 10G Fibre Channel
  • SONET OC-192 / SDH STM-64
  • OTN OTU2e
  •
  •
  •
  •
  •
  •

    6G/10G CPRI CWDM SFP+


  •

    6G/10G CPRI BiDi SFP+


  •

    3G/4.9G CPRI SFP


  •

    3G/4.9G CPRI BiDi SFP
