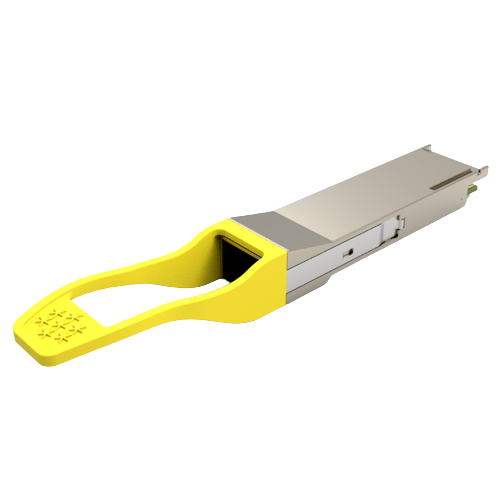

200G QSFP56 AOC

The Gigalight 200G QSFP56 to 200G QSFP56 Active Optical Cable (AOC) is designed for 200G to 200G interconnect links reach up to 70m (OM3) or 100m (OM4) over Multi-Mode Fiber (MMF). Get a Quote
Features
Applications
Datasheets
Related Products
The QSFP56 connectors at the ends of the AOC are compliant with the QSFP MSA and IEEE 802.3cd 200GBASE-SR4 specifications. Digital diagnostics functions are available via the I2C interface as specified by CMIS V4.0. The AOC assemblies are RoHS 2.0 compliant and lead-free per Directive 2011/65/EU.

▪ High-density QSFP56 MSA-compliant connectors
▪ 4 channels full-duplex active optical cables
▪ 4x uncooled 850nm VCSEL array and PIN photo-detector array (50G PAM4)
▪ Built-in 200G PAM4 DSP
▪ Compliant with QSFP56 MSA, CMIS, IEEE 802.3cd 200GBASE-SR4 and IEEE 802.3bm 100GBASE-SR4
▪ Data rate up to 212.5Gbps
▪ Length up to 70m (OM3) or 100m (OM4/OM5) over MMF
▪ Power consumption < 5W per end
▪ 200GAUI-4 electrical interface
▪ Built-in digital diagnostic functionality
▪ Operating case temperature range from 0°C to 70°C
▪ 3.3V power supply voltage
▪ RoHS compliant (lead free)
▪ 200GBASE-SR4 Ethernet (PAM4)
▪ 100GBASE-SR4 Ethernet (NRZ)
  •
  •
