200G QSFP56 AOC Lite

GIGALIGHT's 200G QSFP56 AOC (Active Optical Cable) Lite assemblies are designed to support 100G/200G Ethernet and InfiniBand EDR/HDR, suitable for data center and HPC (High-Performance Computing) links up to 35m over multi-mode fiber.Get a Quote

Features

Applications

Datasheets

Hot-pluggable QSFP56 form factor full-duplex transceiver assembly
4-channel 850nm VCSEL array and PIN photo-detector array
Data rate up to 53.125Gbps (26.5625GBd PAM4) per channel
200GAUI-4 electrical interface
Compliant with QSFP56 MSA, CMIS 4.0 and IEEE 802.3cd 200GBASE-SR4
Compliant with IEEE 802.3bm 100GBASE-SR4 and InfiniBand EDR/HDR
Built-in 200G PAM4 DSP
MMF cable with customizable length up to 35m
5W maximum power dissipation per 200G QSFP56 SR4 module
Case operating case temperature range: C-Temp
Single 3.3V power supply
Built-in digital diagnostic functionality
RoHS compliant (lead free)

Part Number	Product Description
GQS-MDO201-xxxC	200G QSFP56 AOC Lite, 200G QSFP56 to 200G QSFP56, 200GE/HDR, 850nm, 1m-35m, C-Temp

200G Ethernet IEEE 802.3cd 200GBASE-SR4
100G Ethernet IEEE 802.3bm 100GBASE-SR4
InfiniBand 4x EDR/HDR
Data Center Intraconnection
High-Performance Computing

200G QSFP56 AOC Lite - GQS-MDO201-XXXCW

Name*
Email*
Company*
Phone
Product*

200G QSFP56 AOC Lite

200G QSFP56 AOC

200G QSFP56 to 2x 100G QSFP56 Breakout AOC

200G QSFP56 to 4x 50G QSFP56 Breakout AOC

200G QSFP56 to 4x 50G SFP56 Breakout AOC

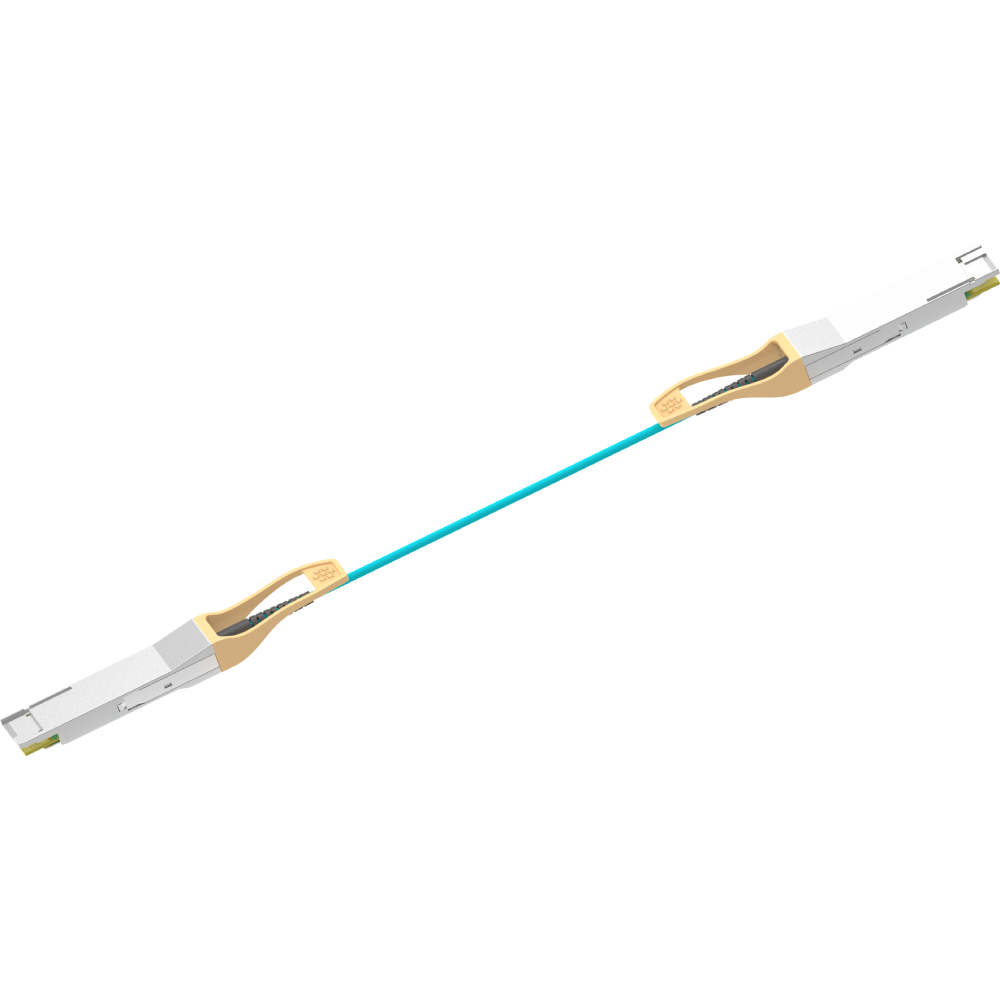

200G QSFP-DD AOC

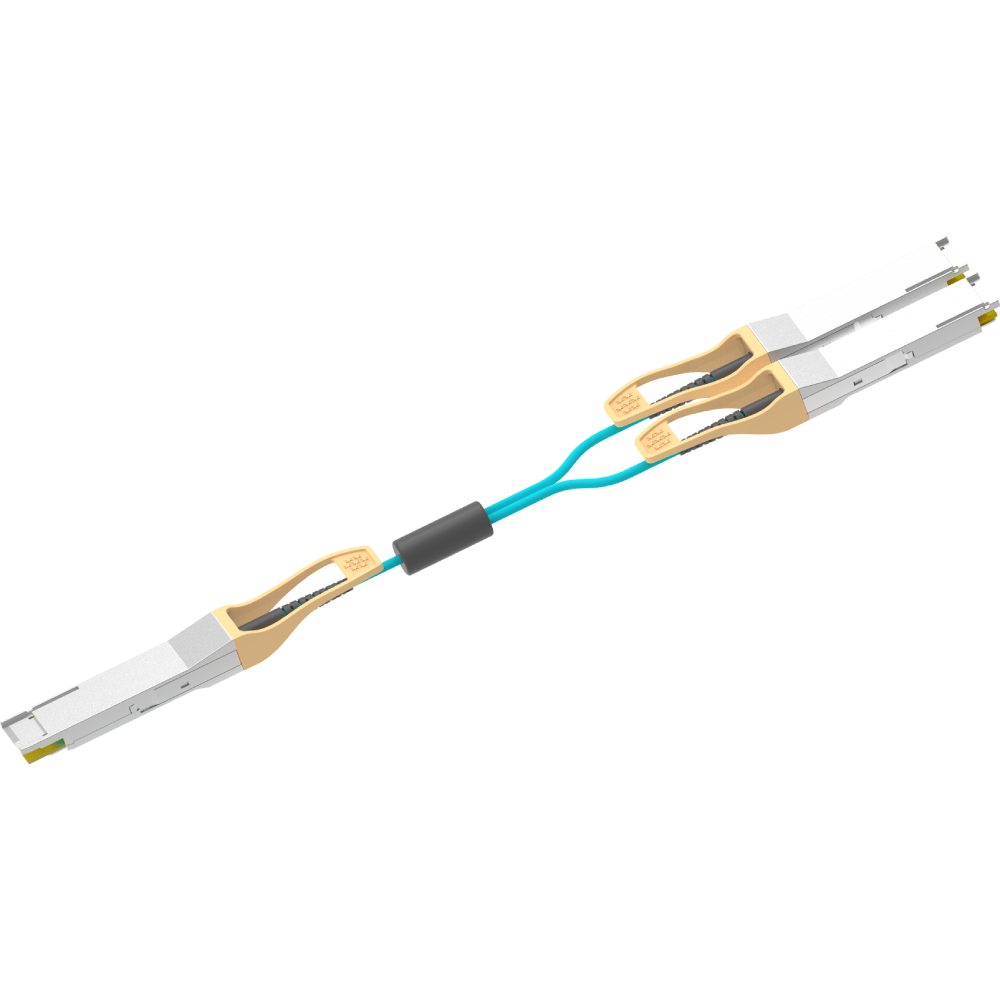

200G QSFP-DD to 2x 100G QSFP28 Breakout AOC

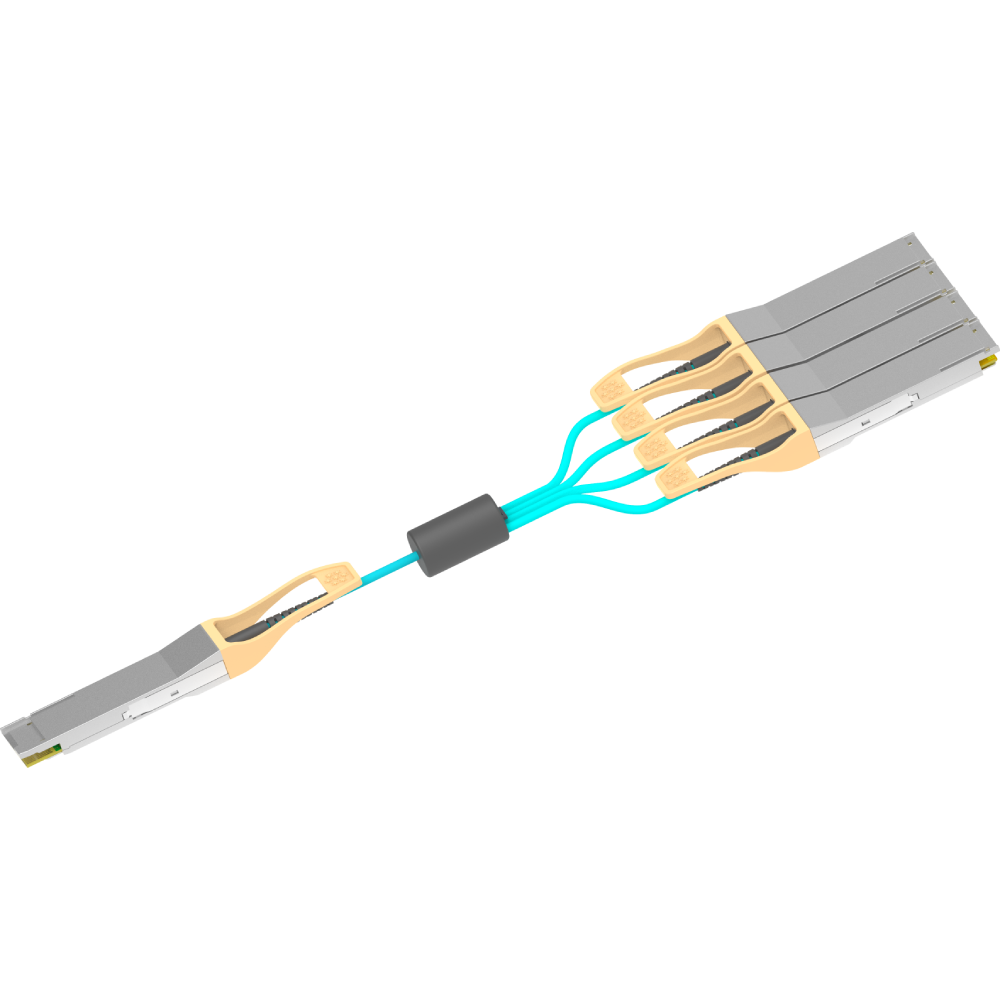

200G QSFP-DD to 4x 50G QSFP28 Breakout AOC
