25g-cwdm-sfp28-1270nm

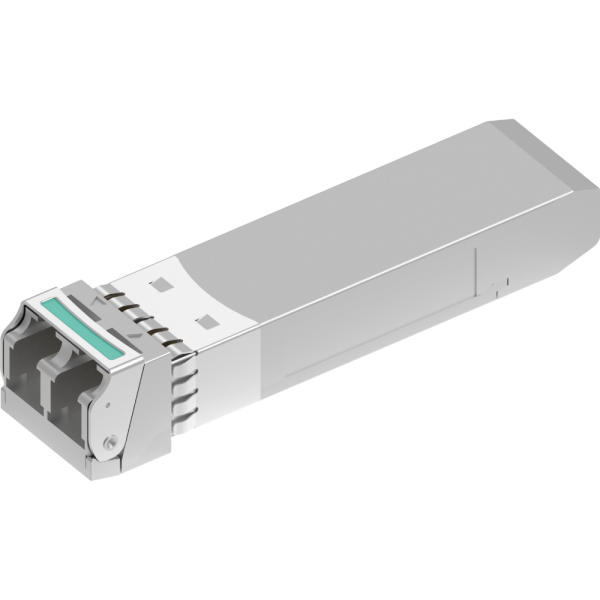

32GFC SFP28 CWDM 10km Optical Modules (Industrial Grade Optional)

GIGALIGHT’s 32GFC SFP28 CWDM optical transceiver module is designed for long-distance interconnectivity in data center storage area networks. It complies with the 32G fiber channel transmission protocol and is backward compatible with 8G/16G fiber channel transmission protocols. This series of products uses a pair of single-mode fibers for transmission, with center wavelengths ranging from 1271nm to 1611nm in the CWDM series (20nm spacing). It can achieve a maximum distance of 10km and offers optional industrial-grade working temperature range.

Description

Hot-pluggable SFP28 transceiver modules
Single channel with CWDM 1271-1611nm DML/EML and PIN ROSA
Data rate up to 28.05Gbps
Compliant with SFP28 MSA and 32G Fibre Channel
Downward compatible with 8G/16G Fibre Channel transport protocols
Transmission over 1 pair of multimode fibers up to 10km
Power dissipation less than 1.5W
Dual LC optical interface
Commercial and industrial case operating temperature range
Single 3.3V power supply
Built-in digital diagnostic functionality
RoHS compliant (lead free)

P/N	Product Description
GSS-Cxx280-LRC	32GFC SFP28 CWDM 1271-1611nm 10km Optical Transceiver
GSS-Cxx280-LRT	Industrial 32GFC SFP28 LR DML 1310nm 10km Optical Transceiver

Additional information

Product Type	Pluggable Optical Modules
Data Rate	14G-28G
Form Factor	SFP28
Application	Data Center
Reach	2km-20km
Wavelength	CWDM
Media Type	SMF
Interface	Dual LC
Protocol	Fibre Channel
