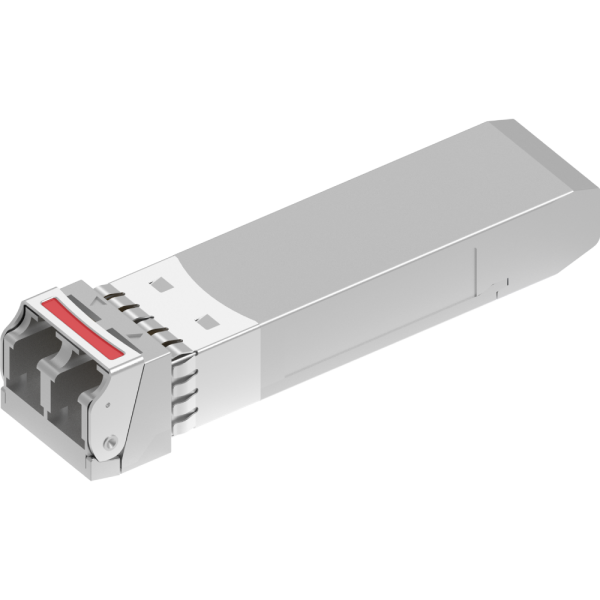

32GFC SFP28 EW 1310nm 40km Transceivers

GIGALIGHT's 32GFC SFP28 EW optical transceiver modules are designed to support 8G/16G/32G Fibre Channel (FC) and 25G Ethernet/CPRI/eCPRI, suitable for storage area network (SAN), data center and 5G fronthaul links up to 40km over single mode fiber.Get a Quote

Features

Applications

Datasheets

More

Hot-pluggable SFP28 form factor full-duplex transceiver module
1310nm EML TOSA and APD ROSA
Data rate up to 28.05Gbps
Compliant with SFP28 MSA (SFF-8402), SFF-8472 and 32G Fibre Channel
Compliant with IEEE 802.3cc 25GBASE-ER and 8G/16G Fibre Channel
Compliant with CPRI/eCPRI specifications
Internal CDR on both transmitter and receiver channels
Reach up to 40km over SMF
Duplex LC receptacle
1.8W maximum power dissipation
Case operating case temperature range: C-Temp or I-Temp
Single 3.3V power supply
Built-in digital diagnostic functionality
RoHS compliant (lead free)

Part Number	Product Description
GSS-SPO280-ERC	32GFC SFP28 EW, 32GFC/25GE, 1310nm, 40km, SMF, Dual LC, C-Temp
GSS-SPO280-ERT	32GFC SFP28 EW, 32GFC/25GE, 1310nm, 40km, SMF, Dual LC, I-Temp

8G/16G/32G Fibre Channel
25G Ethernet IEEE 802.3cc 25GBASE-ER
CPRI Option 10
25G eCPRI
Storage Area Network
Data Center Interconnection
5G Fronthaul Network

　　　　　
