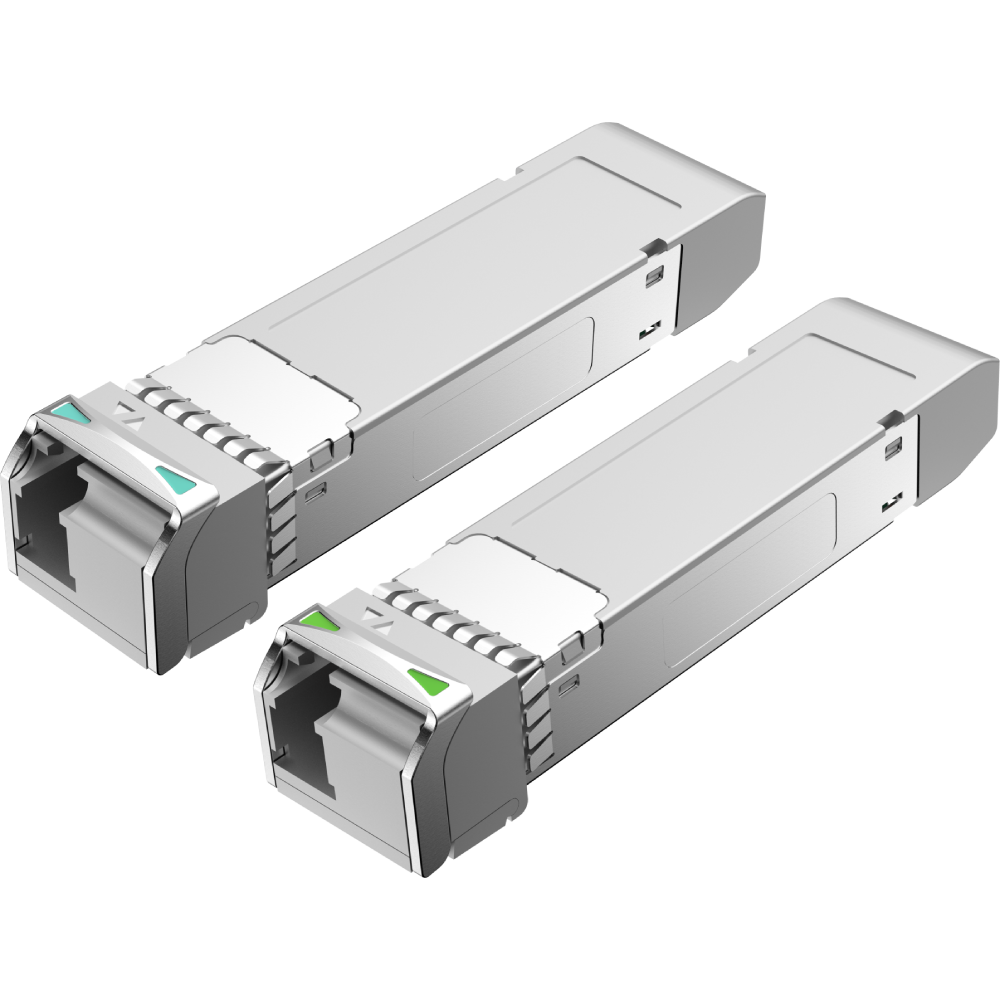

12G-SDI SFP+ 2Tx 1310nm 20km Dual Optical Transmitter

GIGALIGHT 12G-SDI SFP+ 2Tx is a series of dual-channel, one-way, two-light-emitting modules (two transmitters, no receiver) designed for high-definition video signal optical transmission applications. It supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI standards. Two-channel 12G-SDI signals can be transmitted in one direction through two single-mode fibers, and the maximum transmission distance is 20km.

Description

Comes in a hot-pluggable SFP+ package
Dual Channel 1310nm DFB Transmitter (No Receiver)
Conforms to SMPTE ST 297/2081/2082 standards
Supports video pathological modes for SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
The maximum rate of each channel is up to 11.88Gbps
Transmission distance up to 20km via single-mode fiber
The maximum power consumption is less than 1.2W
Metal case for low EMI
Dual LC optical interfaces
Commercial grade operating temperature range from 0 to 70 degrees Celsius
Power supply voltage 3.3V
Comply with RoHS environmental protection standard (lead-free)

P/N	Description
GTTC-xxxx12G-L1CD	12G-SDI CWDM SFP+ 2Tx, 1271nm~1451nm, 10km, SMF, dual LC optical ports, Non-MSA pin

Additional information

Product Type	Pluggable Optical Modules
Application	HD Video
Form Factor	SFP
Protocol	3G/12G-SDI
Interface	Dual LC
Reach	2km-20km
Media Type	SMF
Wavelength	1310nm

Data Sheet

12G-SDI CWDM SFP+ 2Tx 1270nm-1450nm 10km (Non-MSA) GTTC-xxxx12G-L1CD
