1×12G-SDI Video Optical Extenders

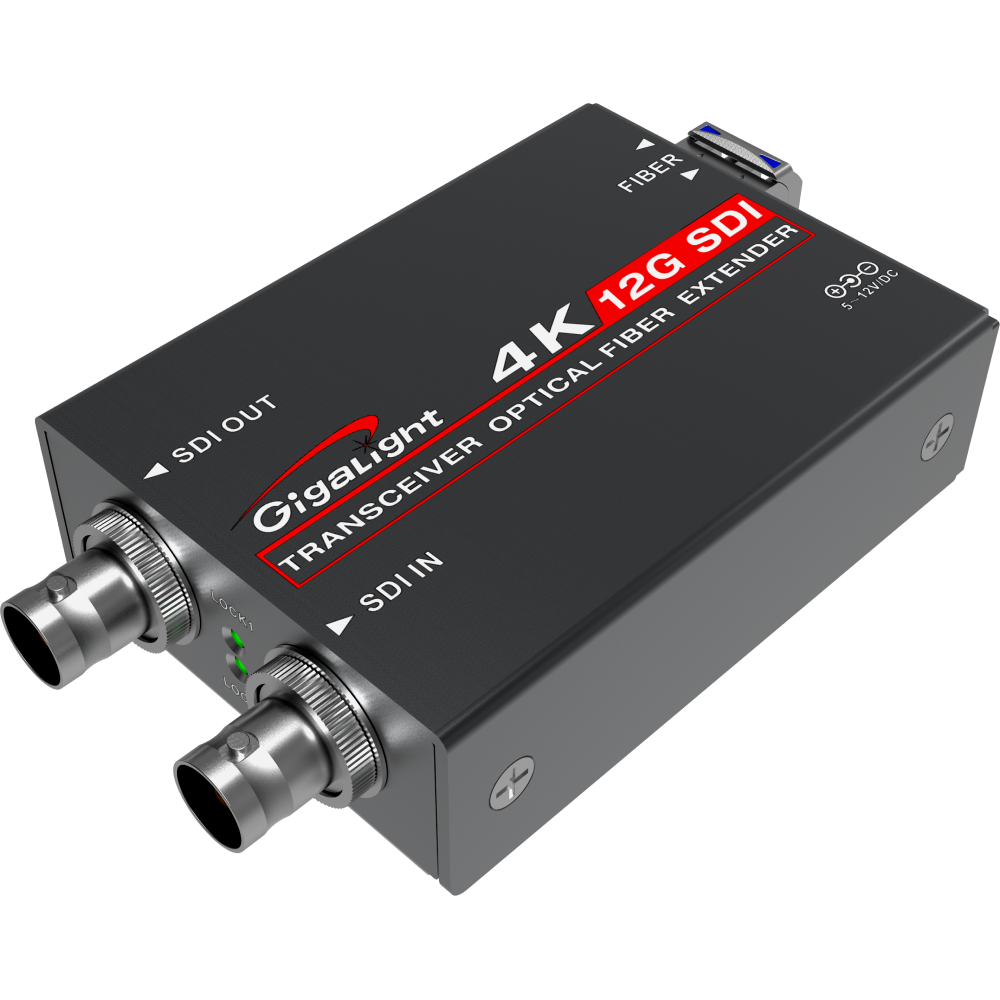

GIGALIGHT's 1×12G-SDI optical extenders can extend a single 12G-SDI signals up to 20km over single-mode fibers with one 12G-SDI SFP+ module, supporting data rates range from 125Mbps to 11.88Gbps. MADI, DVB-ASI, SD-SDI, HD-SDI, 3G-SDI, and 6G–SDI formats are backward compatible.Get a Quote

Features

Applications

Datasheets

SD,HD,3G,6G,12G input data rate detected Automatically
Reachable distance: 80km(@3G SDI SFP transceiver), 20km(@12G SDI SFP transceiver)
Transport 8k (uncompressed) signals up to 20km
Each channel supports resolutions up to 2160p/60Hz
Each channel individually reclocked
Supported format:

SMPTE ST 2082-1 (11.88Gbps/s)
SMPTE ST 2081-1 (5.94Gbps/s)
SMPTE ST 424 (2.97Gbps/s)
SMPTE ST 292 (1.485Gbps/s)
SMPTE ST 259(360Mb/s)
DVB-ASI(270Mb/s)
MADI (125Mb/s)

Co-axis cable equalizer embedded in the transmitter:

70m at 11.88Gb/s: <0.2UI output jitter
90m at 5.94Gb/s: <0.15UI output jitter
180m at 2.97Gb/s: <0.1UI output jitter
240m at 1.485Gb/s: <0.1UI output jitter
300m at 270Mb/s: <0.1UI output jitter

CDR embedded in the receiver
SDI signal connecting status indicated by LED
5-12V DC power supply
Operating case temperature range：-10 to +70℃

Ordering Information

Part Number	Product Description
G-SDI-E-1*12G-TR	1×12G-SDI Video Optical Transceiver Extender

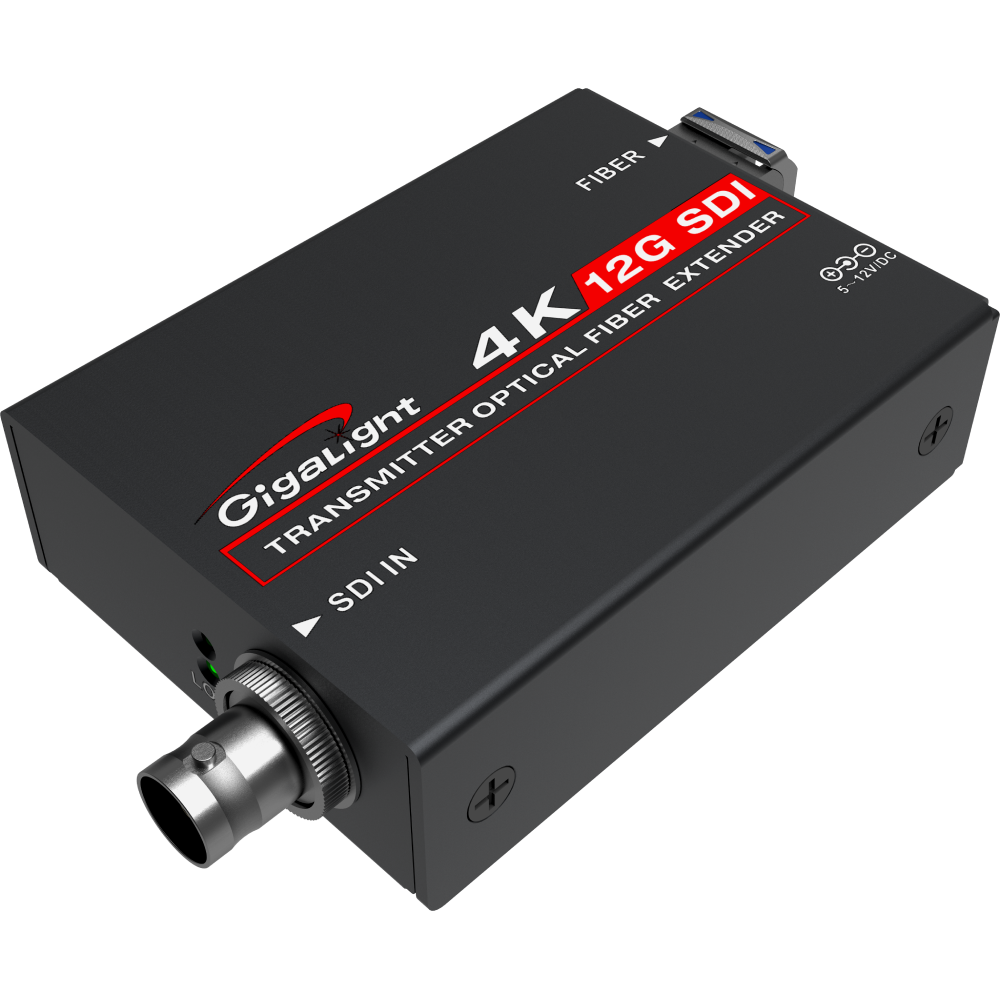

G-SDI-E-1*12G-Tx	1×12G-SDI Video Optical Transmitter Extender

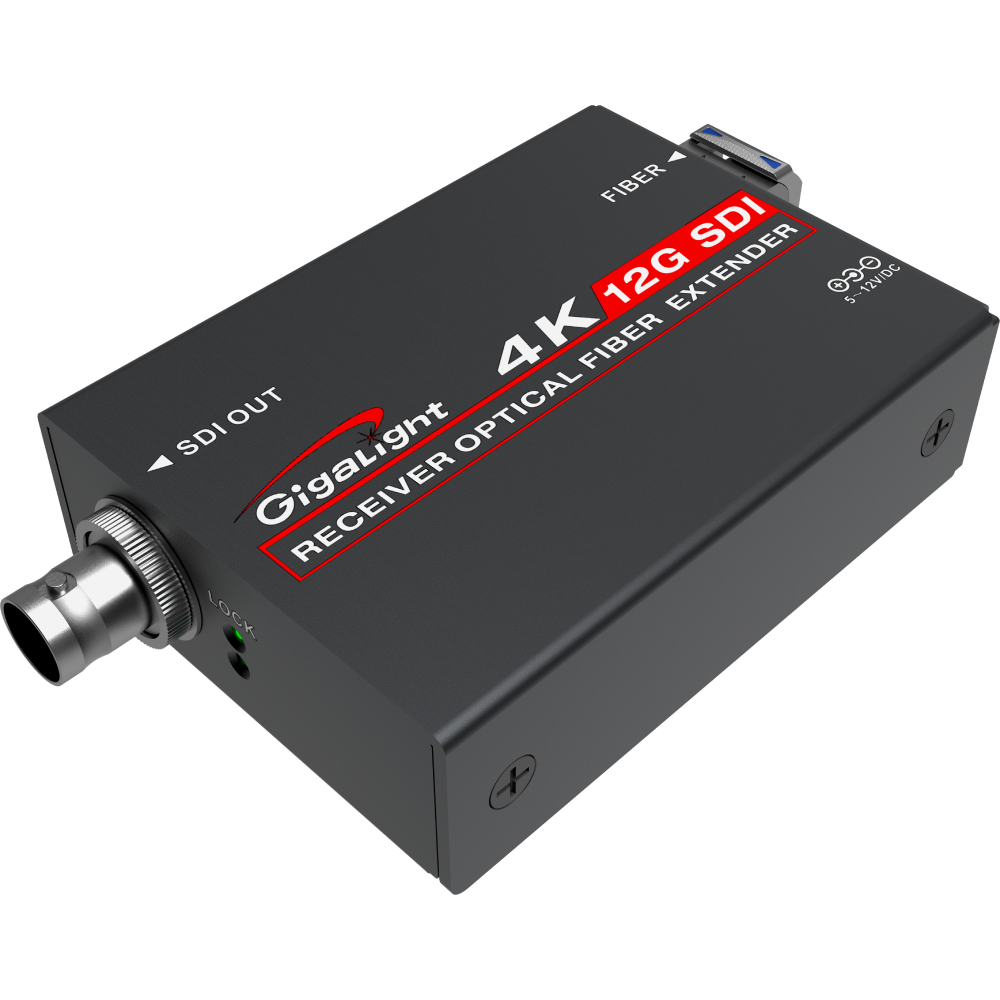

G-SDI-E-1*12G-Rx	1×12G-SDI Video Optical Receiver Extender
