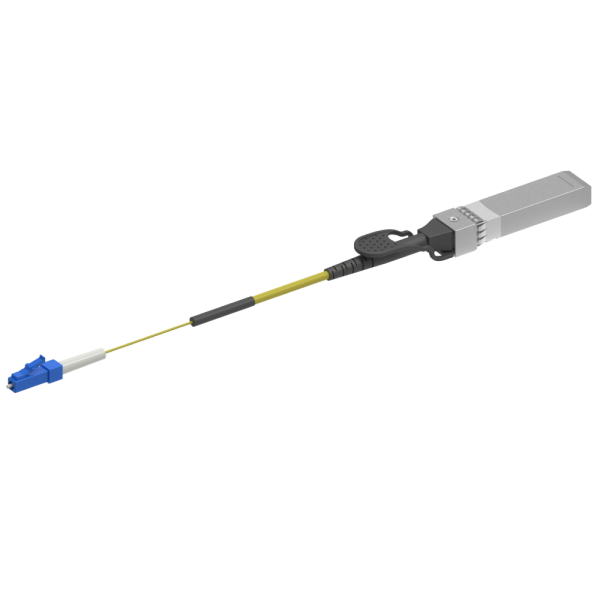

Immersible 25G SFP28 BiDi LR 10km Optical Modules

GIGALIGHT’s 25G SFP28 BiDi LR liquid-cooled optical modules are widely used in submerged liquid-cooled data centers, transmitting up to 10km over single-mode fiber.

Description

Hot-pluggable SFP28 transceiver modules with LC pigtail
Full duplex transceiver module
1270/1310nm DFB laser and PIN photodetector
Compliant with SFP28 MSA and IEEE 802.3cc 25GBASE-LR Ethernet standard
Transmission distance up to 10km over single-mode optical fiber
Data rate up to 25.78125Gbps
Maximum power consumption less than 1W
Case operating temperature range: 0°C to 70°C
Single LC pigtail
Single 3.3V power supply
Built-in digital diagnostic functionality
RoHS compliant (lead free)

Additional information

Application	Data Center
Data Rate	14G-28G
Form Factor	SFP28
Interface	Simplex Pigtail
Product Type	Immersion Liquid Cooling Optics
Media Type	SMF
Wavelength	BiDi
Reach	2km-20km
Protocol	Ethernet

Data Sheet
