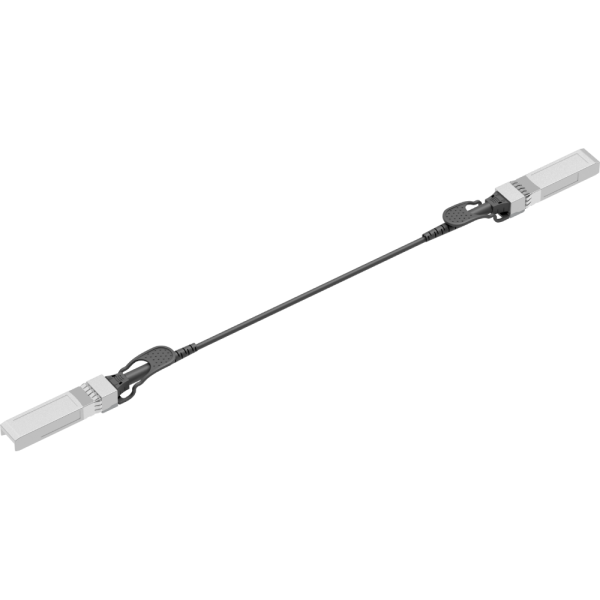

25g-sfp28-haoc

Immersible Liquid Cooling AOC

GIGALIGHT provides immersible cooling active optical cables(AOC) for immersion cooling data center and high-performance data center applications.

Description

Utilizes hot-pluggable SFP/QSFP28/QSFP56 form factor
Data rate up to 10.31-212.5Gbps
Compliant with SFP/QSFP28/QSFP56 MSA-compliant
Transmission distance up to 400m and customizable lengths
Commercial operating temperature range from 0°C to 60°C
Power supply voltage: 3.3V
Compliant with RoHS environmental standards (lead-free)

Additional information

Application	Data Center
Form Factor	QSFP+, SFP
Protocol	Ethernet
Reach	< 500m
Wavelength	850nm

Ordering Form

Product	Standard	Transmitter	Receiver	Reach	Power Consumption
10G SFP+ AOC	10GBase-SR	850nm	PIN	1-300m/400m	0.8W
25G SFP28 AOC	20GBase-SR	850nm	PIN	1-300m	1W
40G QSFP+ AOC	40GBase-SR4	850nm	PIN	1-300m/400m	1.5W
100G QSFP28 AOC	100GBase-SR4	850nm	PIN	1-300m	2W
200G QSFP56 AOC	100G/200GBase-SR4	850nm	PIN	1-100m	5W
