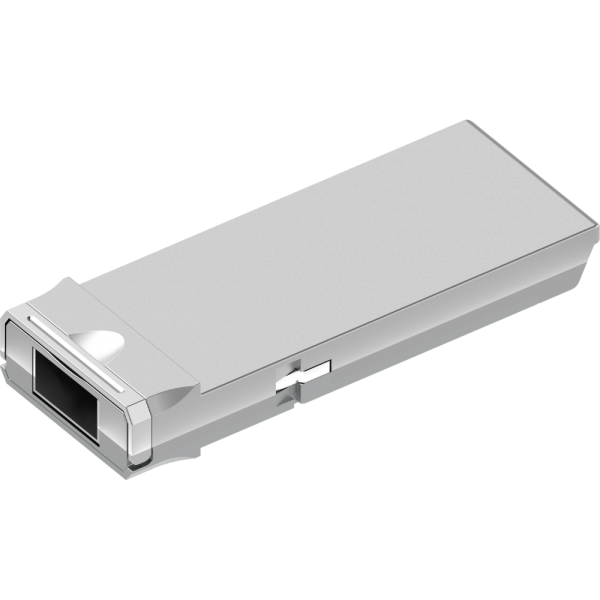

100G CFP2 to QSFP28 Adapter

The Gigalight 100G CFP2 to QSFP28 adapter (GF2-QSFP28-101-N) is designed for Data Center 100G Ethernet and Metro Area Network OTN OTU4 links using QSFP28 transceivers on equipment with CFP ports. The adapter can convert a CFP2 interface to a QSFP28 interface.

Get a Quote
Features
Applications
Datasheets
More

The CFP2 to QSFP28 adapter module integrates 4 data lanes in each direction with operating at up to 28Gbps per lane. It supports 100G QSFP28 LR4/ER4/CLR4 modules without FEC (Forward Error Correction). When the FEC function of the CFP2-port host systems is on, the adapter can support 100G QSFP28 SR4/PSM4/CWDM4/CLR4 modules. The adapter converts 4 parallel electrical data inputs to 4 parallel electrical data output signals through CDR circuits on both receiver and transmitter sides.

  • Hot-pluggable CFP2 form-factor
  • 1 port QSFP28 TX&RX (without FEC)
  • Internal CDR circuits on both receiver and transmitter channels
  • Compliant with CFP2 MSA, CMIS, 100GE and OTN OTU4
  • Data rate up to 111.8Gbps
  • Power consumption < 2W
  • MDIO management interface
  • Operating case temperature range from 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)
  • OTN OTU4 Metro Area Networks
  • 100G Ethernet Data Center Networks
  •
  •
