Description
- Meets the standard of SMPTE259M，SMPTE297M，SMPTE305（SDTI）
- Self-adapt to SDI 270、1485、2970Mbps, with cable balance at input, it can make up the loss of cable transmission
- With jitter-reducing circuit, it can deal with distorted signal well
- 1000M IP support the protocol of IEEE 802.3, IEEE 802.3U, IEEE 802.3X, IEEE 802.1d
- Self-adapt to 10Mbps/100Mbps/1000Mbps
- With LCD touch screen to show working status.
- SDI supports the standard of SMPTE178，Passed the test of SDI pathology
- With LED indicators for input/output signal, optical signal, and dual power supply
- Adopted CWDM and TDM transmission method to realize the transmission of multichannel and multiple signals
Product Model

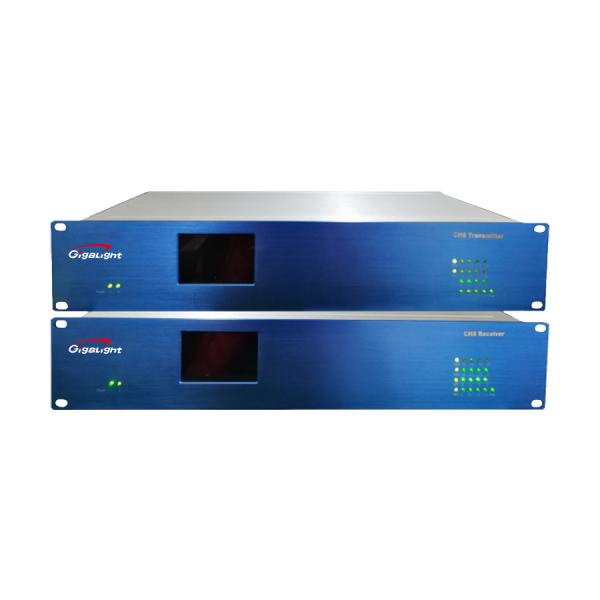

CHS16 Product models are differed by transmit distance.
- 0 ~ 20 km
- 20 ~ 40 km
- 20 ~ 60 km
