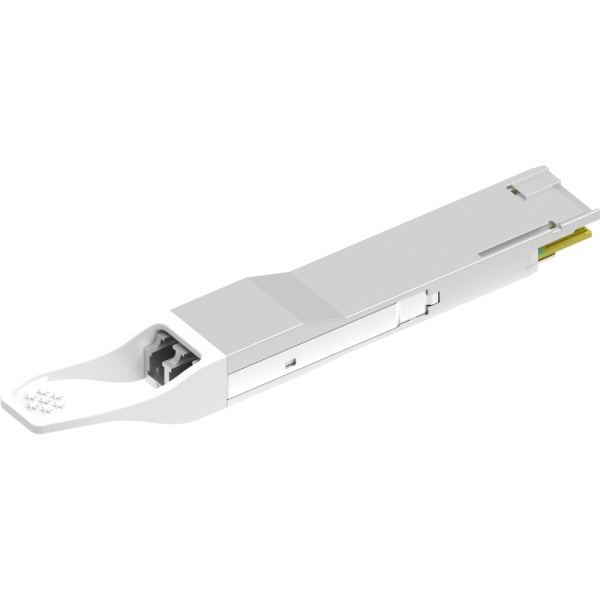

400G QSFP-DD ZR Coherent Optical Module

The GIGALIGHT 400G QSFP-DD ZR coherent optical module supports 400GE and OTN links reach up to 120km. It operates on full C-band DWDM wavelengths with 75GHz (up to 64 channels) or 100GHz (up to 48 channels) channel spacing, and is ideal for long-haul metro DCI and 5G backhaul applications.

Description

QSFP-DD MSA compliant
OIF 400ZR compliant
Built-in digital diagnostic monitoring function
Hot-pluggable 76-pin electrical interface
16.5W maximum power consumption
400G 16QAM modulation
Compact size (18.4mm x 93.4mm x 8.5mm)
Duplex LC optical interface
Supports 425Gbps 400GBASE-R rate
400G-AUI-8 C2M, 8xCEI-56G-VSR PAM-4 electrical interface
Commercial case operating temperature range
3.3V power supply
Compliant with RoHS (lead-free)

Additional information

Application	Coherent Optical Communication
Data Rate	400G
Form Factor	QSFP-DD
Interface	Dual LC
Product Type	Coherent Optical Modules
Media Type	SMF
Protocol	Ethernet
Wavelength	DWDM
Reach	>100km

Ordering Information

P/N	Product Name	Data Rate	Wavelength	Description	Power Consumption
GQ4-S401-ZR	400G QSFP-DD ZR	425Gbp	DWDM C-band 75GHz /100GHz	120km/600km	16.5W
