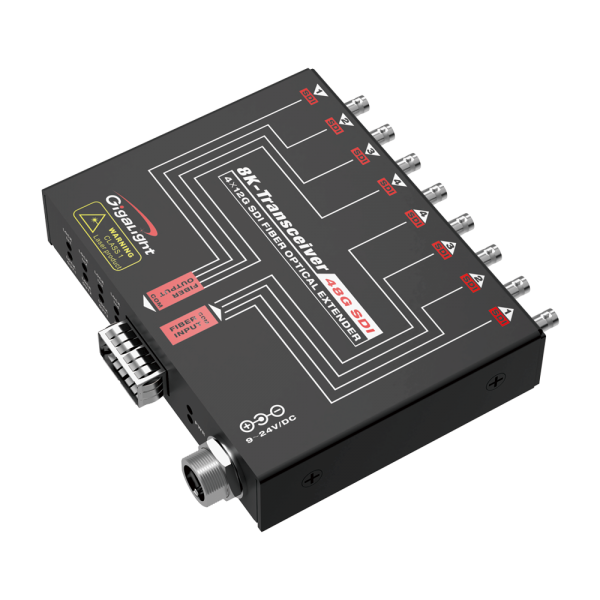

48G SDI QSFP+ PSM4 Extender

The GIGALIGHT 48G SDI QSFP+ PSM4 video optical extender is used to extend the range of single 8K video signal transmission between SDI source and receiver equipment through optical fiber. With the GIGALIGHT 48G SDI QSFP+ PSM4 1310nm or PSM CWDM4 optical transceiver modules, the transmission distance can be extended to 20km or 10km.

Description

  • Supports the GIGALIGHT 48G SDI QSFP+ PSM4 1310nm and PSM CWDM4 optical modules
  • Reach up to 10km or 20km for 4 channels of 12G-SDI video signals over single-mode fiber
  • Total 48Gbps for 8K video signal transmission (up to 11.88Gbps per channel)
  • Compliant with SMPTE-424M, 292M, 295M, 297M, 305M, 310M and DVB-ASI standards
  • Plug-and-play design with QSFP+ and BNC ports
  • Metal shell to shield EMI and RFI
  • Commercial operating temperature range from 0 to 60 degrees Celsius
  • Compliant with RoHS (lead-free)
