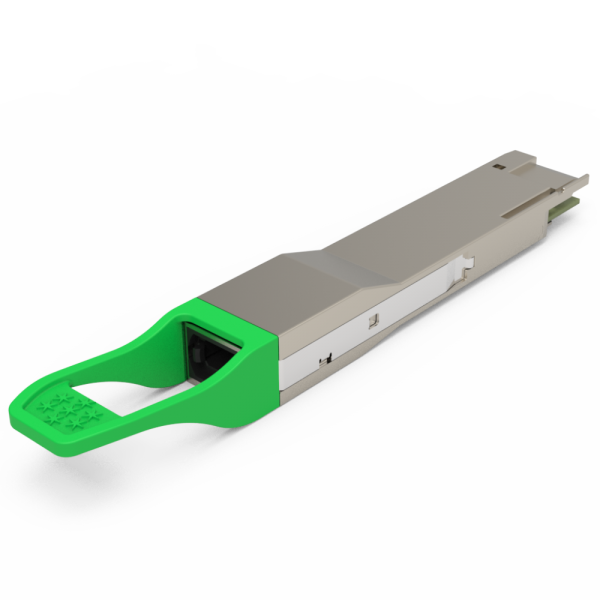

Silicon Photonics 400G QSFP-DD DR4+ 1310nm 2km Transceivers

GIGALIGHT's Silicon Photonics 400G QSFP-DD DR4+ optical transceiver modules are designed to support 400G Ethernet, suitable for data center links up to 2km over single mode fiber. The Silicon Photonics 400G QSFP-DD DR4+ modules are compatible with IEEE 802.3bs 400GBASE-DR4. The transmission side converts 8x 50G PAM4 electrical signals into 4x 100G PAM4 optical signal. Reversely the receiving side converts 4x 100G PAM4 optical signal into 8x 50G PAM4 electrical signals.Get a Quote

Features

Applications

Datasheets

Hot-pluggable QSFP-DD form factor full-duplex transceiver module
100G PAM4 1310nm transmitter and PIN photo-detector array
CW laser and MZ modulator based on Silicon Photonics
Data rate up to 106.25Gbps per channel
Compliant with QSFP-DD MSA and IEEE 802.3bs 400GBASE-DR4
Internal 8:4 Gearbox DSP on both receiver and transmitter channels
Reach up to 2km over SMF with KP4-FEC
MPO12/APC receptacle
10W maximum power dissipation
Case operating case temperature range: C-Temp
Single 3.3V power supply
Built-in digital diagnostic functionality
RoHS compliant (lead free)

Part Number	Product Description
GQD-SI401DR4+C	Silicon Photonics 400G QSFP-DD DR4+, 400GE, 1310nm, 2km, SMF, MPO12, C-Temp

400G Ethernet IEEE 802.3bs 400GBASE-DR4
Data Center Intraconnection
