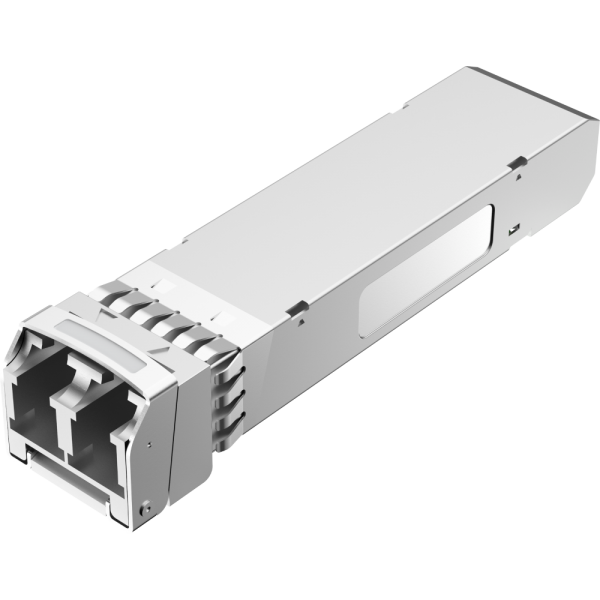

10G DWDM SFP+ Optical Transceiver Modules

10G DWDM SFP+

The Gigalight 10G DWDM SFP+ optical transceiver modules are designed for 10G Ethernet, 10G Fibre Channel, SDH STM-64 and OTN OTU2e links reach up to 40km-80km over Single-Mode Fiber (SMF).Get a Quote
Features
Applications
Datasheets
More

10GE/10GFC DWDM SFP+ C17-C61 40km - GDP-xx192-04C

Part Number Product Description
GDP-17192-04C 10GE/10GFC DWDM SFP+, C17 1563.86nm, 40km, SMF, Dual LC
GDP-18192-04C 10GE/10GFC DWDM SFP+, C18 1563.05nm, 40km, SMF, Dual LC
... ...
GDP-61192-04C 10GE/10GFC DWDM SFP+, C61 1528.77nm, 40km, SMF, Dual LC
  • Compliant with SFF-8431, SFF-8432 and IEEE 802.3ae
  • 10GBASE-ER and 2G/4G/8G/10G Fibre Channel applications
  • C-band C17-C61 (100GHz spacing) cooled DWDM EML transmitter and PIN receiver
  • Link length up to 40km
  • Low Power Dissipation 1.5W Maximum
  • -5ºC to 70ºC Operating Case Temperature
  • Single 3.3V power supply
  • Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
  • RoHS compliant (lead free)

10GE/CPRI DWDM SFP+ C18-C61 40km (IT) - GDP-xx192-04T

Part Number Product Description
GDP-18192-04T 10GE/CPRI DWDM SFP+, C18 1563.05nm, 40km, SMF, Dual LC, I-temp
GDP-19192-04T 10GE/CPRI DWDM SFP+, C19 1562.23nm, 40km, SMF, Dual LC, I-temp
... ...
GDP-61192-04T 10GE/CPRI DWDM SFP+, C61 1528.77nm, 40km, SMF, Dual LC, I-temp
  • Hot-pluggable SFP+ footprint
  • Supports 1.2288 to 10.3125 Gb/s
  • Link length up to 40km on G.652D SMF
  • Link budget up to 24dB
  • Operating case temperature range: -40ºC to +85ºC
  • C-band C18-C61 (100GHz spacing) cooled DWDM EML transmitter and PIN receiver
  • Maximum power dissipation < 2.0W (Typical 1.4W)
  • Single 3.3V power supply
  • Duplex LC connector
  • Built-in digital diagnostic interface
  • RoHS compliant (lead free)

10GE/10GFC DWDM SFP+ C18-C61 70km - GDP-xx192-07C

Part Number Product Description
GDP-18192-07C 10GE/10GFC DWDM SFP+, C18 1563.05nm, 70km, SMF, Dual LC
GDP-19192-07C 10GE/10GFC DWDM SFP+, C19 1562.23nm, 70km, SMF, Dual LC
... ...
GDP-61192-07C 10GE/10GFC DWDM SFP+, C61 1528.77nm, 70km, SMF, Dual LC
  • Hot-pluggable SFP+ footprint
  • Supports 9.8 to 10.3 Gb/s
  • Link length up to 70km on G.652D SMF
  • Link budget up to 24dB
  • Operating case temperature range: 0ºC to 70ºC
  • C-band C18-C61 (100GHz spacing) cooled DWDM EML transmitter and APD receiver
  • Maximum power dissipation < 2W (Typical 1.4W)
  • Single 3.3V power supply
  • Duplex LC connector
  • Built-in digital diagnostic interface
  • RoHS compliant (lead free)

10GE/CPRI DWDM SFP+ C18-C61 70km (IT) - GDP-xx192-07T

Part Number Product Description
GDP-18192-07T 10GE/CPRI DWDM SFP+, C18 1563.05nm, 70km, SMF, Dual LC, I-temp
GDP-19192-07T 10GE/CPRI DWDM SFP+, C19 1562.23nm, 70km, SMF, Dual LC, I-temp
... ...
GDP-61192-07T 10GE/CPRI DWDM SFP+, C61 1528.77nm, 70km, SMF, Dual LC, I-temp
  • Hot-pluggable SFP+ footprint
  • Supports 9.8 to 10.3 Gb/s
  • Link length up to 70km on G.652D SMF
  • Link budget up to 24dB
  • Operating case temperature range: -40ºC to +85ºC
  • C-band C18-C61 (100GHz spacing) cooled DWDM EML transmitter and APD receiver
  • Maximum power dissipation < 2W (Typical 1.4W)
  • Single 3.3V power supply
  • Duplex LC connector
  • Built-in digital diagnostic interface
  • RoHS compliant (lead free)

10GE/OTN DWDM SFP+ C18-C61 80km - GDP-xx192-08C

Part Number Product Description
GDP-18192-08C 10GE/OTN DWDM SFP+, C18 1563.05nm, 80km, SMF, Dual LC
GDP-19192-08C 10GE/OTN DWDM SFP+, C19 1562.23nm, 80km, SMF, Dual LC
... ...
GDP-61192-08C 10GE/OTN DWDM SFP+, C61 1528.77nm, 80km, SMF, Dual LC
  • Hot-pluggable SFP+ footprint
  • Supports 9.8 to 11.3 Gb/s
  • Link length up to 80km on G.652D SMF
  • Link budget up to 24dB
  • Operating case temperature range: -5ºC to +75ºC
  • C-band C18-C61 (100GHz spacing) cooled DWDM EML transmitter and APD receiver
  • Maximum power dissipation < 1.8W (Typical 1.4W)
  • Single 3.3V power supply
  • Duplex LC connector
  • Built-in digital diagnostic interface
  • RoHS compliant (lead free)

10GE/CPRI/OTN DWDM SFP+ C18-C61 80km (ET) - GDP-xx192-08N

Part Number Product Description
GDP-18192-08N 10GE/CPRI/OTN DWDM SFP+, C18 1563.05nm, 80km, SMF, Dual LC, E-temp
GDP-19192-08N 10GE/CPRI/OTN DWDM SFP+, C19 1562.23nm, 80km, SMF, Dual LC, E-temp
... ...
GDP-61192-08N 10GE/CPRI/OTN DWDM SFP+, C61 1528.77nm, 80km, SMF, Dual LC, E-temp
  • Hot-pluggable SFP+ footprint
  • Supports 9.8 to 11.3 Gb/s
  • Link length up to 80km on G.652D SMF
  • Operating case temperature range: -20ºC to +85ºC
  • C-band C18-C61 (100GHz spacing) cooled DWDM EML transmitter and APD receiver
  • Maximum power dissipation < 2W (Typical 1.4W)
  • Single 3.3V power supply
  • Duplex LC connector
  • Built-in digital diagnostic interface
  • RoHS compliant (lead free)

10GE/10GFC DWDM SFP+ CH17-CH61 (50GHz Spacing) 80km - GDP-xxx192-08C

Part Number Product Description
GDP-C17192-08C 10GE/10GFC DWDM SFP+, C17 1563.86nm, 80km, SMF, Dual LC
GDP-H17192-08C 10GE/10GFC DWDM SFP+, H17 1563.45nm, 80km, SMF, Dual LC
GDP-C18192-08C 10GE/10GFC DWDM SFP+, C18 1563.05nm, 80km, SMF, Dual LC
GDP-H18192-08C 10GE/10GFC DWDM SFP+, H18 1562.64nm, 80km, SMF, Dual LC
... ...
GDP-C61192-08C 10GE/10GFC DWDM SFP+, C61 1528.77nm, 80km, SMF, Dual LC
GDP-H61192-08C 10GE/10GFC DWDM SFP+, H61 1528.38nm, 80km, SMF, Dual LC
  • Hot-pluggable SFP+ footprint
  • Supports 9.8 to 11.3 Gb/s
  • Link length up to 80km on G.652D SMF
  • Link budget up to 24dB
  • Operating case temperature range: -5ºC to +75ºC
  • C-band CH17-CH61 (50GHz spacing) cooled DWDM EML transmitter and APD receiver
  • Maximum power dissipation < 1.8W (Typical 1.4W)
  • Single 3.3V power supply
  • Duplex LC connector
  • Built-in digital diagnostic interface
  • RoHS compliant (lead free)
  • 10G Ethernet
  • 10G Fibre Channel
  • SONET OC-192 / SDH STM-64
  • OTN OTU2e
  •
  •
  •
  •
  •
  •
  •
