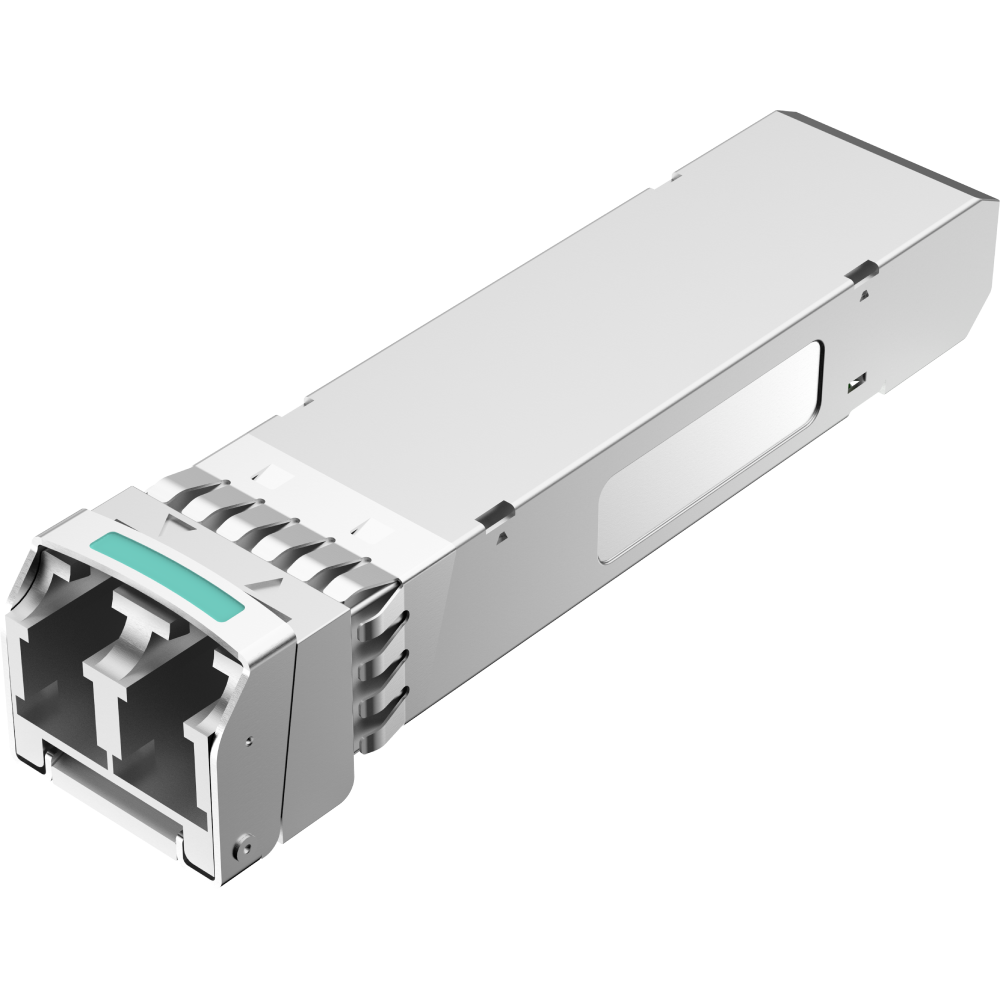

10G CWDM SFP+ Optical Transceiver Modules

10G CWDM SFP+

GIGALIGHT's 10G CWDM SFP+ optical transceiver modules are designed for 10G Ethernet, 10G Fibre Channel, SDH STM-64 and OTN OTU2e links reach up to 10km-80km over Single-Mode Fiber (SMF).Get a Quote
Features
Applications
Datasheets
More
Part Number Product Description
GCP-xx192-01C 10GE CWDM SFP+ LR, 1271nm-1371nm and 1471nm-1571nm, 10km, SMF, Dual LC
GCP-xx192-01T 10GE/CPRI CWDM SFP+ LR, 1271nm-1371nm and 1471nm-1571nm, 10km, SMF, Dual LC, I-Temp
GCP-xx192-02C 10GE/OTN CWDM SFP+ LR, 1270nm-1570nm, 20km, SMF, Dual LC
GCP-xx192-04C 10GE/10GFC CWDM SFP+ ER, 1270nm-1610nm, 40km, SMF, Dual LC
GCP-xx192-04T 10GE/CPRI CWDM SFP+ ER, 1471nm-1611nm, 40km, SMF, Dual LC, I-Temp
GCP-xx192-08C 10GE/OTN CWDM SFP+ ZR, 1470nm-1610nm, 80km, SMF, Dual LC
GCP-xx192-08T 10GE/OTN CWDM SFP+ ZR, 1470nm-1610nm, 80km, SMF, Dual LC, I-Temp

Note: xx options are 27-61. 27 means 1270nm, 29 means 1290nm, ..., and 61 means 1610nm.

Examples: GCP-27192-01C, GCP-57192-01T, GCP-47192-04T, ..., and GCP-61192-08T.

10GE CWDM SFP+ LR 1271nm-1371nm & 1471nm-1571nm 10km - GCP-xx192-01C

  • Compliant with SFF-8431, SFF-8432 and IEEE 802.3ae
  • 1271nm-1371nm or 1471nm-1571nm CWDM DFB transmitter
  • APD photo-detector
  • Commercial operating case temperature: 0°C to 70°C
  • Low power consumption
  • Applicable for 10km SMF connection
  • All-metal housing for superior EMI performance
  • Advanced firmware allow customer system encryption information to be stored in transceiver
  • Cost effective SFP+ solution, enables higher port densities and greater bandwidth
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

10GE/CPRI CWDM SFP+ LR 1271nm-1371nm & 1471nm-1571nm 10km (IT) - GCP-xx192-01T

  • Compliant with SFF-8431, SFF-8432 and IEEE 802.3ae
  • 1271nm-1371nm or 1471nm-1571nm CWDM DFB transmitter
  • APD photo-detector
  • Industrial operating case temperature: -40°C to +85°C
  • Low power consumption
  • Applicable for 10km SMF connection
  • All-metal housing for superior EMI performance
  • Advanced firmware allow customer system encryption information to be stored in transceiver
  • Cost effective SFP+ solution, enables higher port densities and greater bandwidth
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

10GE/OTN CWDM SFP+ LR 1270nm-1570nm 20km - GCP-xx192-02C

  • Compliant with SFF-8431, SFF-8432 and IEEE 802.3ae
  • 1270nm-1570nm CWDM DFB transmitter
  • APD photo-detector
  • Commercial operating case temperature: 0°C to 70°C
  • Low power consumption
  • Applicable for 20km SMF connection
  • All-metal housing for superior EMI performance
  • Advanced firmware allow customer system encryption information to be stored in transceiver
  • Cost effective SFP+ solution, enables higher port densities and greater bandwidth
  • 3.3V power supply voltage
  • RoHS compliant (lead free)

10GE/10GFC CWDM SFP+ ER 1270nm-1610nm 40km - GCP-xx192-04C

  • Compliant with SFF-8431, SFF-8432 and IEEE 802.3ae
  • 1270nm-1450nm CWDM DFB transmitter, or 1470nm-1610nm CWDM EML transmitter
  • APD photo-detector
  • Commercial operating case temperature: 0°C to 70°C
  • Low power consumption
  • Applicable for 40km SMF connection
  • All-metal housing for superior EMI performance
  • Advanced firmware allow customer system encryption information to be stored in transceiver
  • Cost effective SFP+ solution, enables higher port densities and greater bandwidth
  • 3.3V power supply voltage
  • RoHS-6 compliant (lead free)

10GE/CPRI CWDM SFP+ ER 1471nm-1611nm 40km (IT) - GCP-xx192-04T

  • Hot-pluggable SFP+ footprint
  • Supports 1.2288 to 10.3125 Gb/s
  • Link length up to 40km on G.652D SMF
  • Link budget up to 24dB
  • Industrial operating case temperature: -40°C to +85°C
  • 1471nm-1611nm (20nm spacing) cooled CWDM EML transmitter and APD receiver
  • Maximum power dissipation < 1.8W (Typical 1.4W)
  • Single 3.3V power supply
  • Duplex LC connector
  • Built-in digital diagnostic interface
  • RoHS compliant (lead free)

10GE/OTN CWDM SFP+ ZR 1470nm-1610nm 80km - GCP-xx192-08C

  • Hot-pluggable SFP+ footprint
  • Supports 9.8 to 11.3 Gb/s
  • Link length up to 80km on G.652D SMF
  • Link budget up to 24dB
  • Commercial operating case temperature range: -5°C to +75°C
  • 1470nm-1610nm (20nm spacing) cooled CWDM EML transmitter and APD receiver
  • Maximum power dissipation < 1.8W (Typical 1.4W)
  • Single 3.3V power supply
  • Duplex LC connector
  • Built-in digital diagnostic interface
  • RoHS compliant (lead free)

10GE/OTN CWDM SFP+ ZR 1470nm-1610nm 80km (IT) - GCP-xx192-08T

  • Hot-pluggable SFP+ footprint
  • Supports 9.8 to 11.3 Gb/s
  • Link length up to 80km on G.652D SMF
  • Link budget up to 24dB
  • Industrial operating case temperature range: -40°C to +85°C
  • 1470nm-1610nm (20nm spacing) cooled CWDM EML transmitter and APD receiver
  • Maximum power dissipation < 2W (Typical 1.4W)
  • Single 3.3V power supply
  • Duplex LC connector
  • Built-in digital diagnostic interface
  • RoHS compliant (lead free)
  • 10G Ethernet
  • 10G Fibre Channel
  • SONET OC-192 / SDH STM-64
  • OTN OTU2/OTU2e
  •
  •
  •
  •
  •
  •
  •
  •
  •
