3G-SDI SFP Optical Transceiver Modules

3G-SDI SFP

GIGALIGHT's 3G-SDI SFP optical transceiver modules are designed for 3G-SDI video optical transmission links reach up to 2km-80km over Single-Mode Fiber (SMF).Get a Quote
Features
Applications
Datasheets
More
Part Number Product Description
GHP-313G-02CDM 3G-SDI SFP, 1310nm, 2km on SMF, Dual LC, MSA Pinout
GHP-313G-L2CDM 3G-SDI SFP, 1310nm, 20km on SMF, Dual LC, MSA Pinout
GHP-313G-L4CDM 3G-SDI SFP, 1310nm, 40km on SMF, Dual LC, MSA Pinout
GHP-553G-L4CDM 3G-SDI SFP, 1550nm, 40km on SMF, Dual LC, MSA Pinout
GHP-313G-L8CDM 3G-SDI SFP, 1310nm, 80km on SMF, Dual LC, MSA Pinout
GHP-553G-L8CDM 3G-SDI SFP, 1550nm, 80km on SMF, Dual LC, MSA Pinout

3G-SDI SFP 1310nm 2km (MSA) - GHP-313G-02CDM

  • SD/HD/3G-SDI SFP Transceiver
  • SMPTE 297-2006 Compatible
  • Metal enclosure for Lower EMI
  • 1310nm FP laser and PIN photo-detector
  • Reach up to 2km over SMF
  • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic functions available through the I2C interface
  • Compatible with RoHS
  • +3.3V single power supply
  • Commercial operating case temperature range: 0°C to 70°C

3G-SDI SFP 1310nm 20km (MSA) - GHP-313G-L2CDM

  • SD/HD/3G-SDI SFP Transceiver
  • SMPTE 297-2006 Compatible
  • Metal enclosure for Lower EMI
  • 1310nm DFB laser and PIN photo-detector
  • Reach up to 20km over SMF
  • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic functions available through the I2C interface
  • Compatible with RoHS
  • +3.3V single power supply
  • Commercial operating case temperature range: 0°C to 70°C

3G-SDI SFP 1310nm 40km (MSA) - GHP-313G-L4CDM

  • SD/HD/3G-SDI SFP Transceiver
  • SMPTE 297-2006 Compatible
  • Metal enclosure for Lower EMI
  • 1310nm DFB laser and PIN photo-detector
  • Reach up to 40km over SMF
  • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic functions available through the I2C interface
  • Compatible with RoHS
  • +3.3V single power supply
  • Commercial operating case temperature range: 0°C to 70°C

3G-SDI SFP 1550nm 40km (MSA) - GHP-553G-L4CDM

  • SD/HD/3G-SDI SFP Transceiver
  • SMPTE 297-2006 Compatible
  • Metal enclosure for Lower EMI
  • 1550nm DFB laser and PIN photo-detector
  • Reach up to 40km over SMF
  • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic functions available through the I2C interface
  • Compatible with RoHS
  • +3.3V single power supply
  • Commercial operating case temperature range: 0°C to 70°C

3G-SDI SFP 1310nm 80km (MSA) - GHP-313G-L8CDM

  • SD/HD/3G-SDI SFP Transceiver
  • SMPTE 297-2006 Compatible
  • Metal enclosure for Lower EMI
  • 1310nm DFB laser and APD photo-detector
  • Reach up to 80km over SMF
  • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic functions available through the I2C interface
  • Compatible with RoHS
  • +3.3V single power supply
  • Commercial operating case temperature range: 0°C to 70°C

3G-SDI SFP 1550nm 80km (MSA) - GHP-553G-L8CDM

  • SD/HD/3G-SDI SFP Transceiver
  • SMPTE 297-2006 Compatible
  • Metal enclosure for Lower EMI
  • 1550nm DFB laser and APD photo-detector
  • Reach up to 80km over SMF
  • Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic functions available through the I2C interface
  • Compatible with RoHS
  • +3.3V single power supply
  • Commercial operating case temperature range: 0°C to 70°C
  • SD/HD/3G-SDI
  •
  •
  •
  •
  •
  •
  •

    12G-SDI SFP+


  •

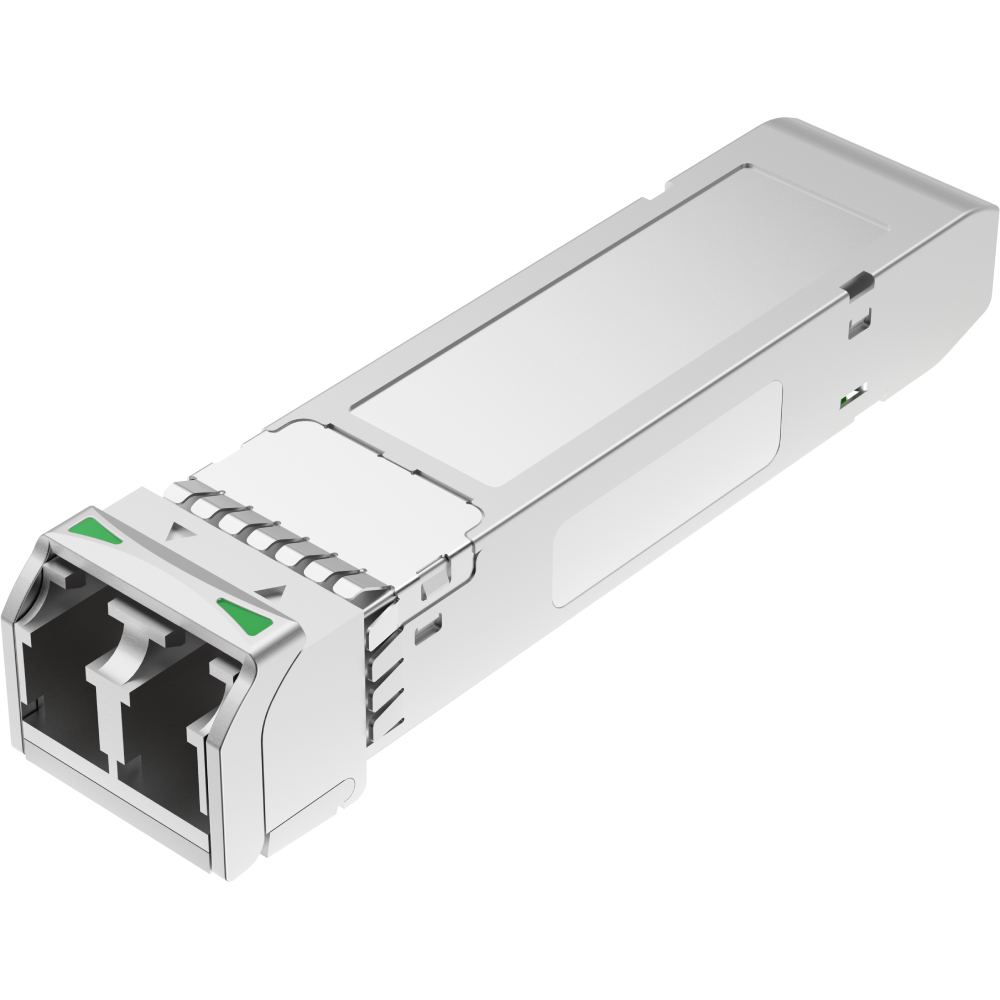

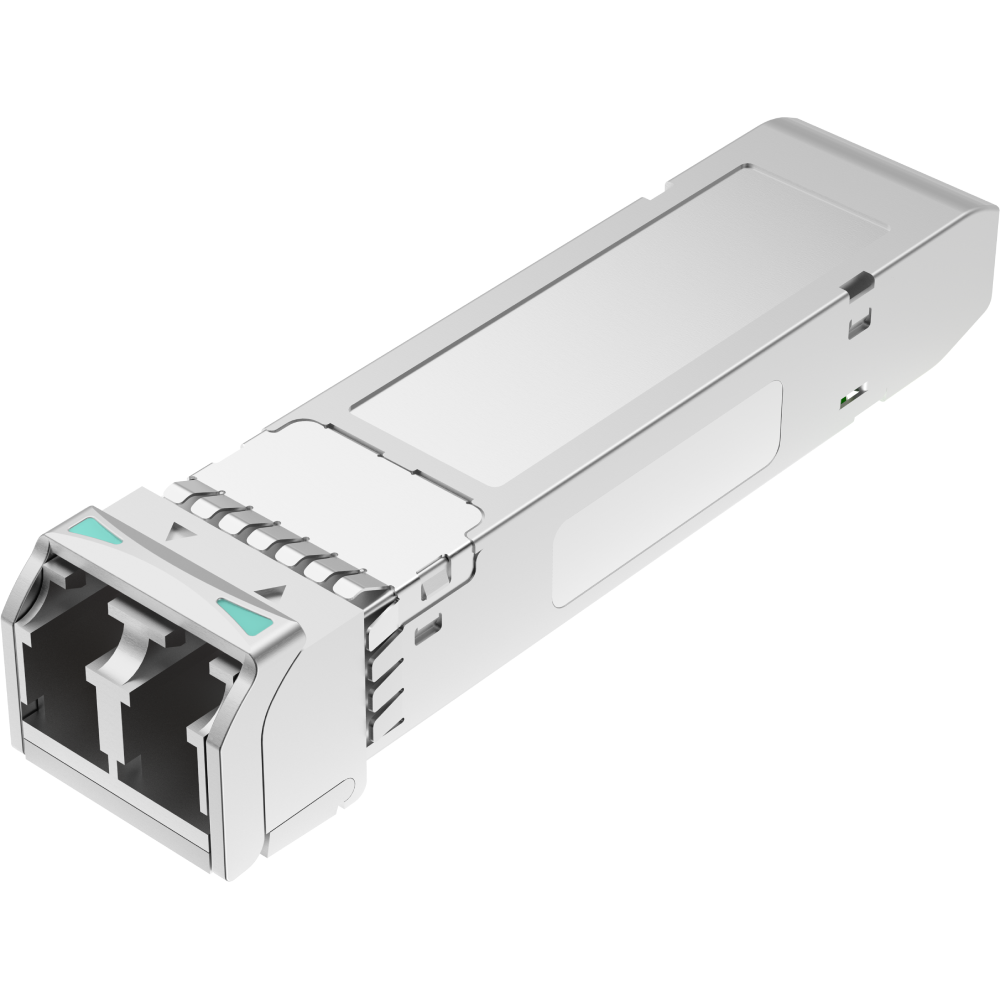

    12G-SDI CWDM SFP+


  •

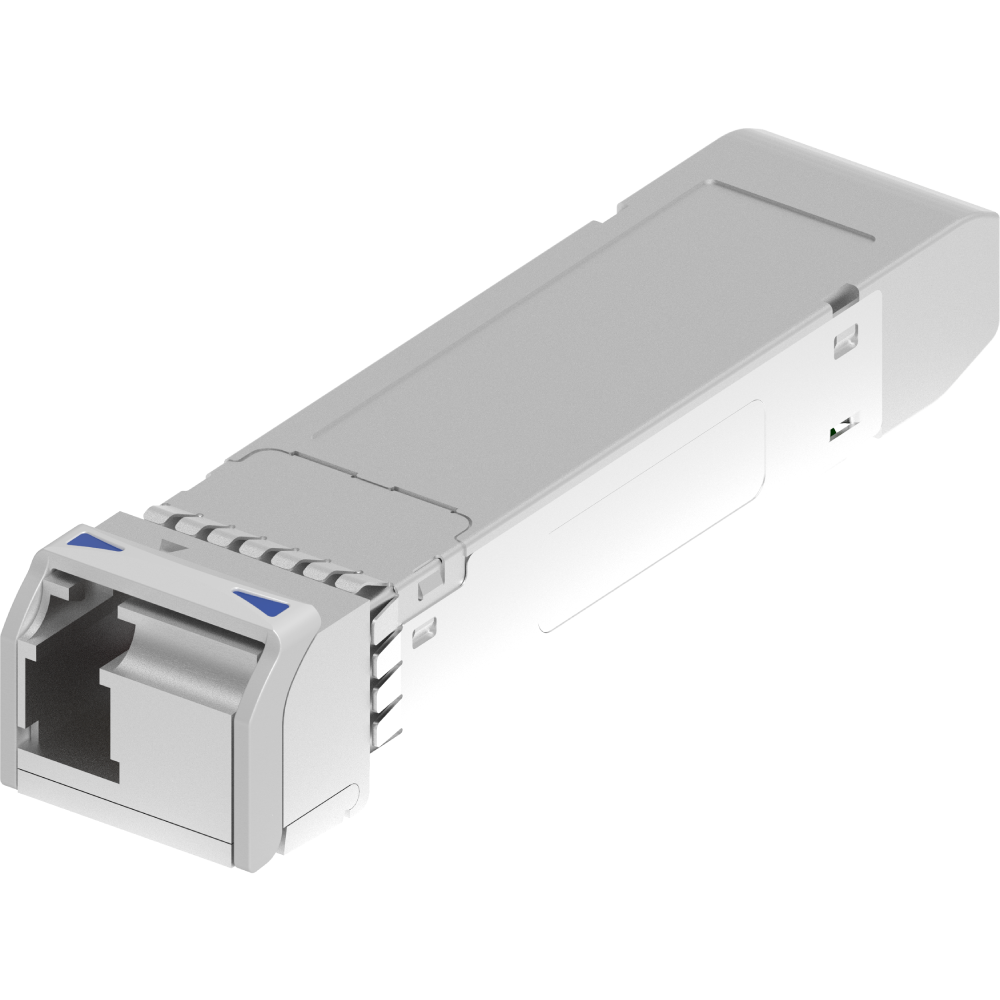

    12G-SDI SFP+ Tx


  •

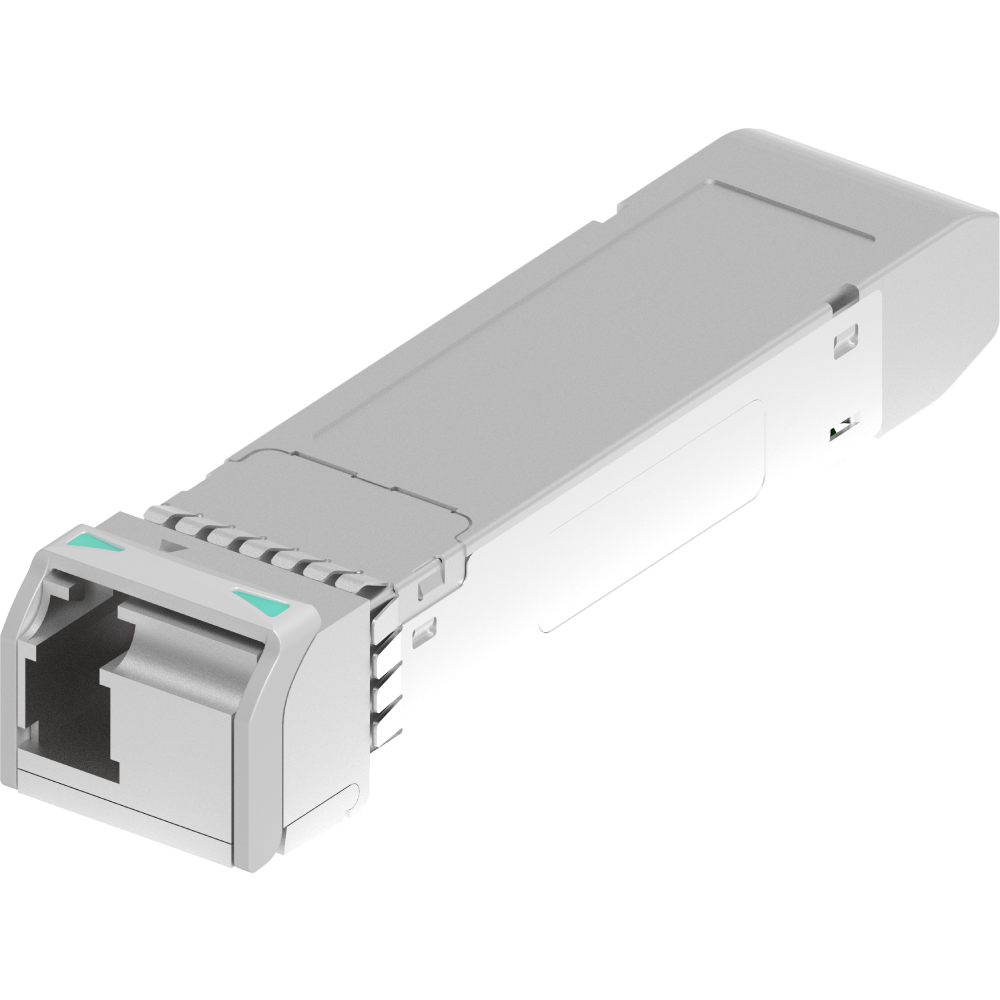

    12G-SDI CWDM SFP+ Tx


  •

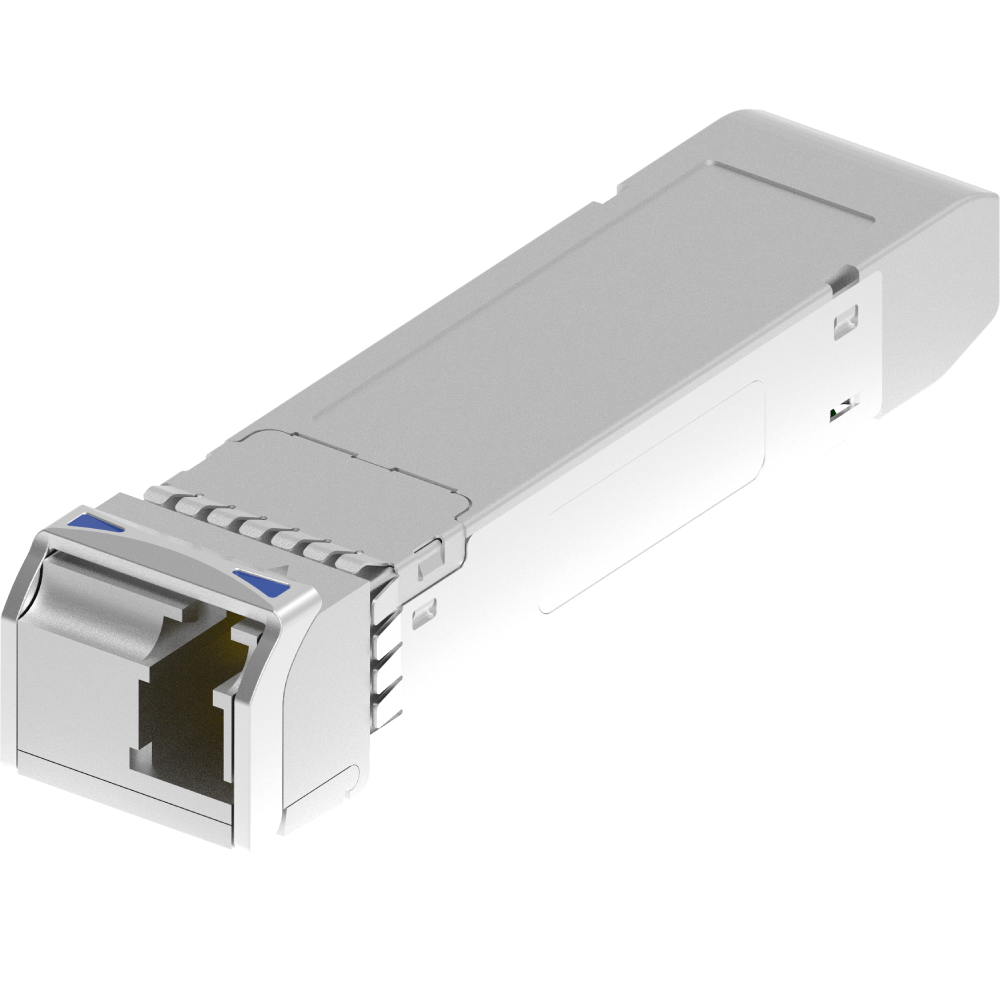

    12G-SDI SFP+ Rx


  •
