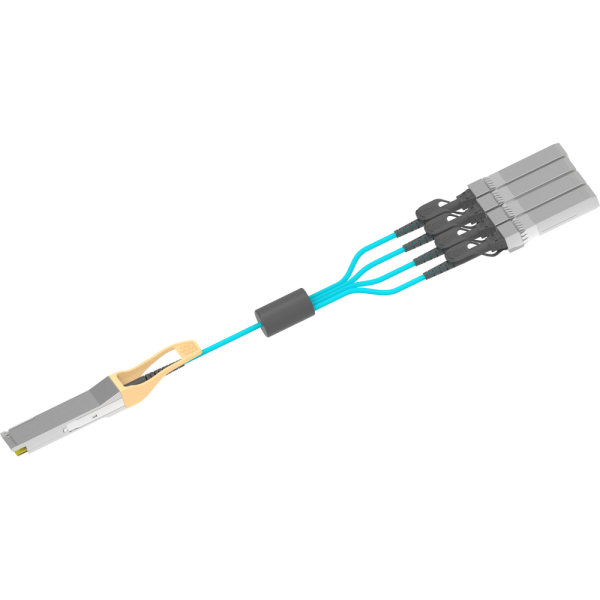

40G QSFP+ To 4x 10G SFP+ AOC

The GIGALIGHT 40G QSFP+ AOC active optical cable is used for short-distance branch interconnection between internal devices in the data center. It complies with IEEE 802.3ba 40GBASE-SR4 transmission protocol, and is also compatible with IEEE 802.3ae 10GBASE-SR and InfiniBand QDR transmission protocols. This series of products uses 4 pairs of parallel multimode optical fiber transmission, and the distance can reach up to 100m (OM3).

Description

  • An active optical cable assembly integrating one 40G QSFP+ SR4 and four 10G SFP+ SR optical transceiver modules at both ends
  • Each side contains 4 channels of 850nm VCSEL and PIN
  • The transmission rate of each channel can reach up to 10.3125Gbps
  • Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 transmission protocol
  • Compatible with IEEE 802.3ae 10GBASE-SR and InfiniBand QDR transport protocols
  • Using 4 pairs of parallel multimode optical fiber transmission, the distance can reach up to 100m (OM3)
  • Power consumption is less than 1.5W (per 40G QSFP+ SR4 optical module) or 1W (per
  • 10G SFP+ SR optical module)
  • Commercial grade operating temperature range
  • Power supply voltage 3.3V
  • Comply with RoHS environmental protection standard (lead-free)
P/N Description
GQP-MDO400-xxxC 40G QSFP+ to 4x 10G SFP+ AOC
